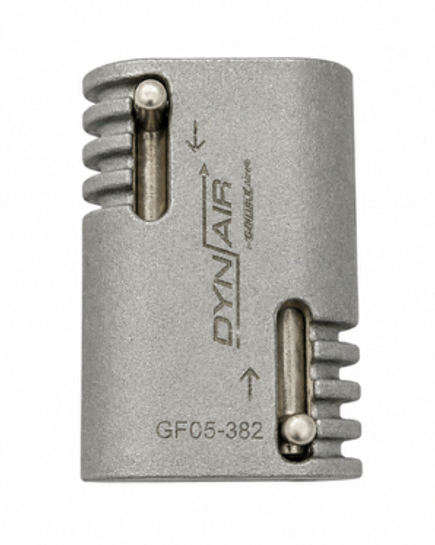

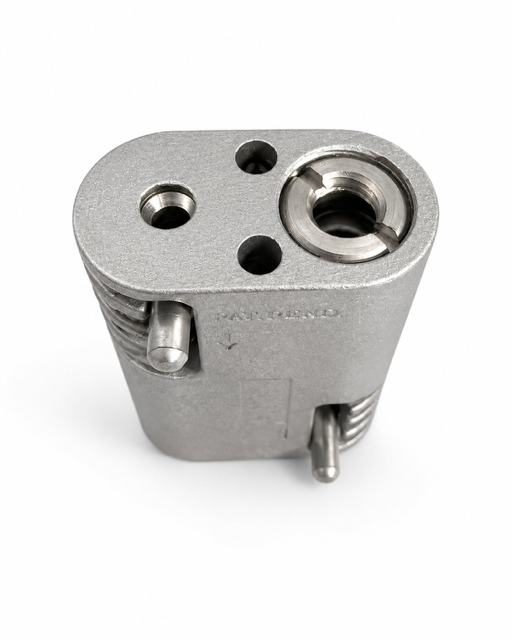

Hardcast 357896 Dyn-A-Grip #3 Cable Grip, for 1/8" Cable

The Dyn-A-Grip product offering gives you a duct hanging system that is quick, easy, strong, and requires NO TOOLS! A simple but unique design utilizing ball bearings to lock the cable in place.

The Dyn-A-Grip system can be used to support a wide range of loads and objects. Any item you can envision that needs to be supported can be suspended using the Dyn-A-Grip system. Examples are:

• Ductwork
• Pipework
• Cable trays
• Ceiling Grids
• Light Fixtures and systems
• Large signs and indicator display
• Decorative objects
• Fan coils and air handling units

The double-loop design gives the Dyn-A-Grip unsurpassed load carrying capacity! #2 Cable Grips can support a safe working load of 125 lbs (56 kg) when double-looped. #3 Cable Grips can support a safe working load of 250 lbs (113 kg) when double-looped. Compare that to the competitor offerings in this space where the equivalent #2 and #3 grips offer 100 lbs and 200 lbs of working load respectively. As with any system, using the correct grip with the correct cable is paramount to ensure you meet the safe working load.

Features and Benefits

• Housing made from aluminum
• Lightweight and easy to handle
• No tools required to install/adjust/remove
• Faster to install than threaded rods or grips requiring tools
• Single or double loop design gives holding capacity up to 250 lbs
• Available in 2 sizes as individual components or as kits
• Kits include 10' preterminated cable and cable grip

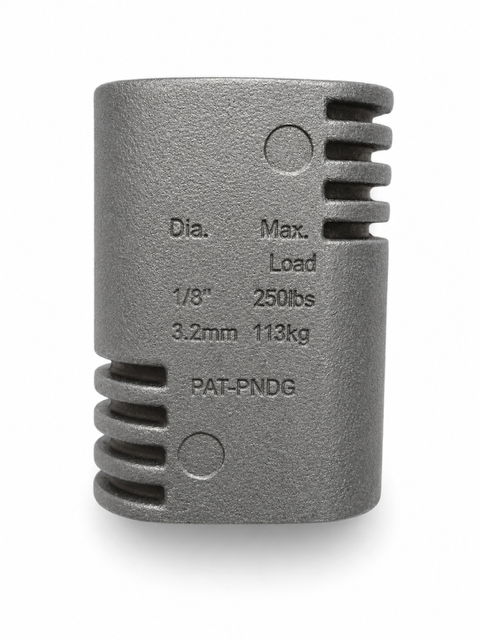

• Cable size and maximum load capacity stamped into back of each Dyn-A-Grip
• Stamped markings remove potential mix up of incorrect grip sizes
• Cable direction clearly marked on housing eliminating incorrect install
