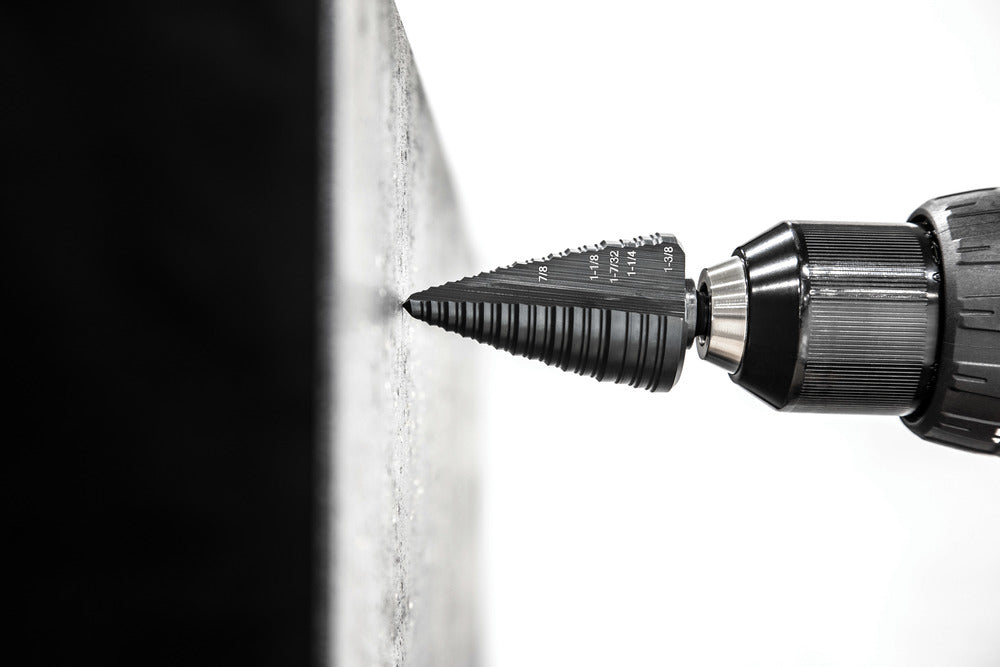

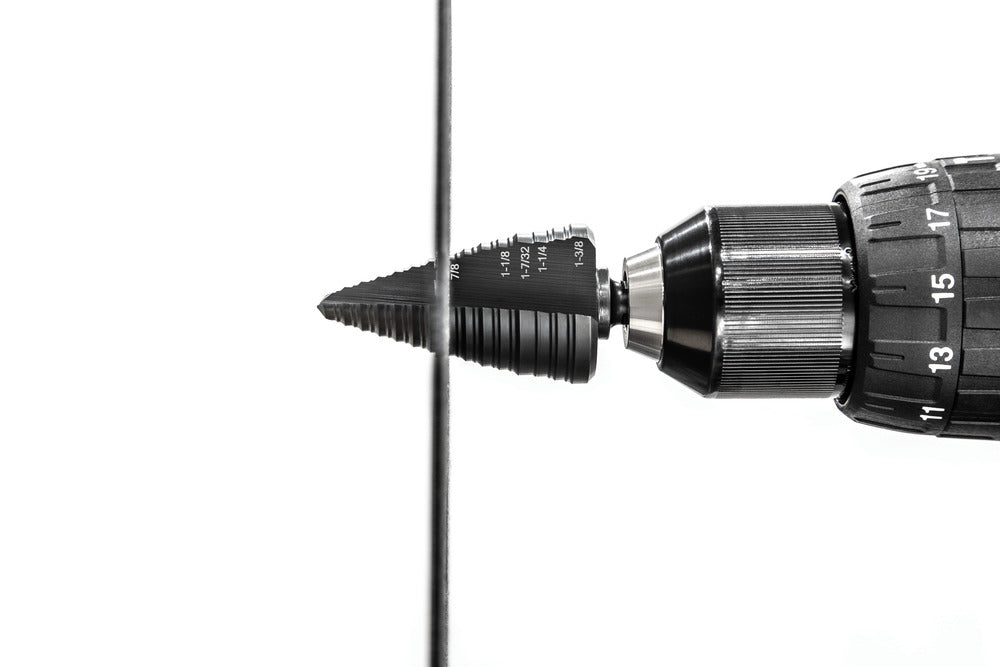

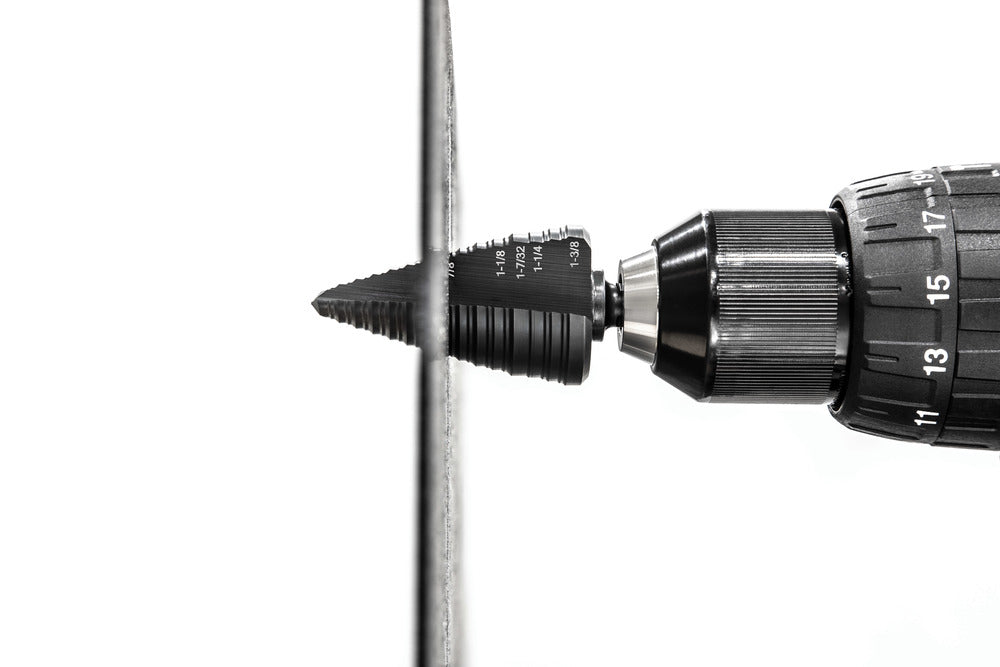

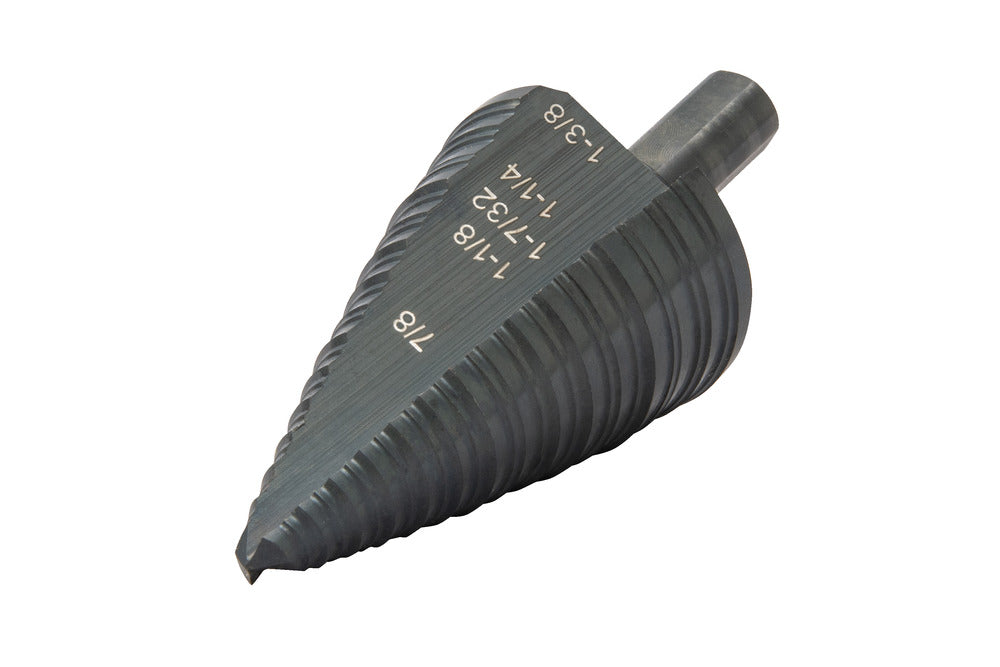

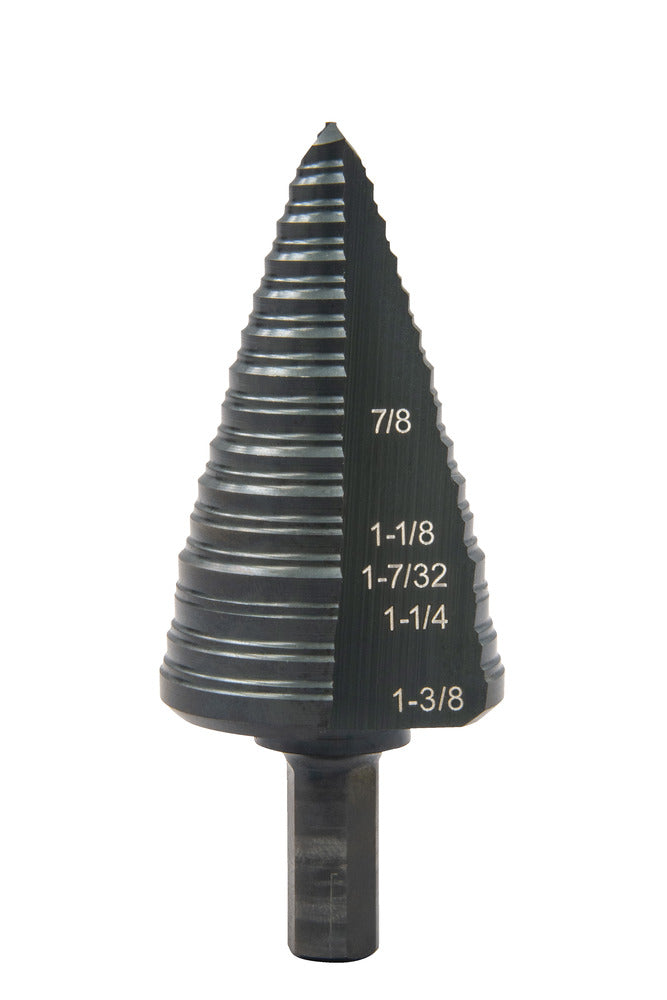

Greenlee GSB12 1-3/8" Step Bit (#12)

• Durable split-point tip for fast, accurate material penetration.
• Patented split-step design optimizes chip load for fast, smooth cutting, and more holes per charge.
• Progressive cutting edges provides power tool accessory balanced aggression to maximize torque efficiency and minimize stalling
• Improved double flute design for superior chip evacuation, cutting speeds and tool life.
• Three-flat shank for all 1/2" drill chucks.
• Laser markings for quick, easy product and size identification.
• Replaced 36414
• Also available for sale in a carton, qty. 25 (Cat #: GSB12-B UPC #: 783310082064)

Product Specifications:

Type	Multi-hole Step Bit
Application	Cuts mild steel, aluminum, brass, copper, wood, fiberglass, plastics and laminates
Number of Drill Stages	4
Minimum Drill Diameter	3/16" (4.8 mm)
Maximum Drill Diameter	1/8" (3.2 mm)
Maximum Sheet Metal Thickness	10 gauge (3.5 mm)

GSB Series Step Bits Datasheet
