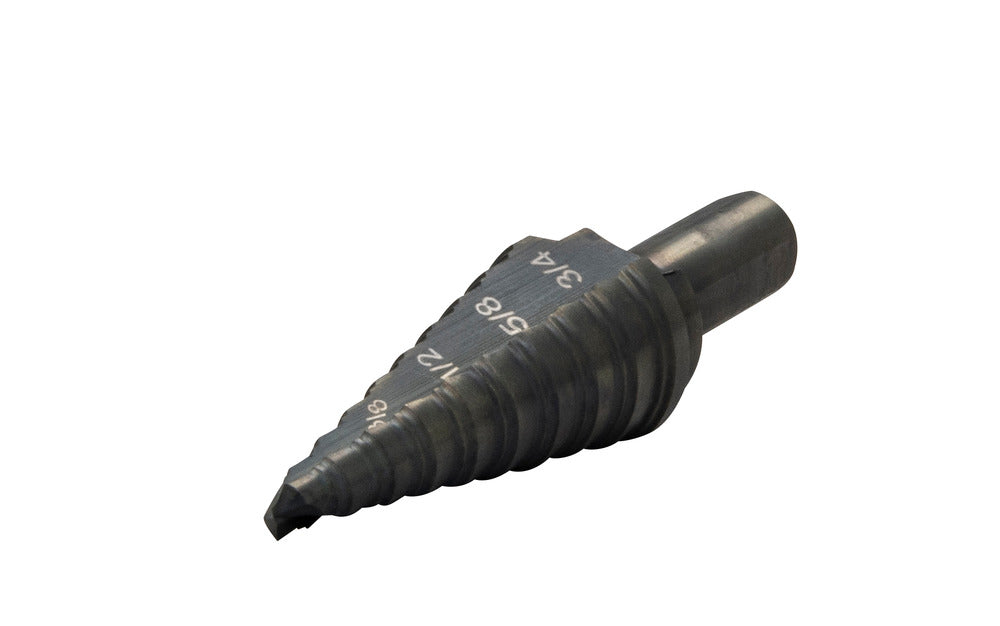

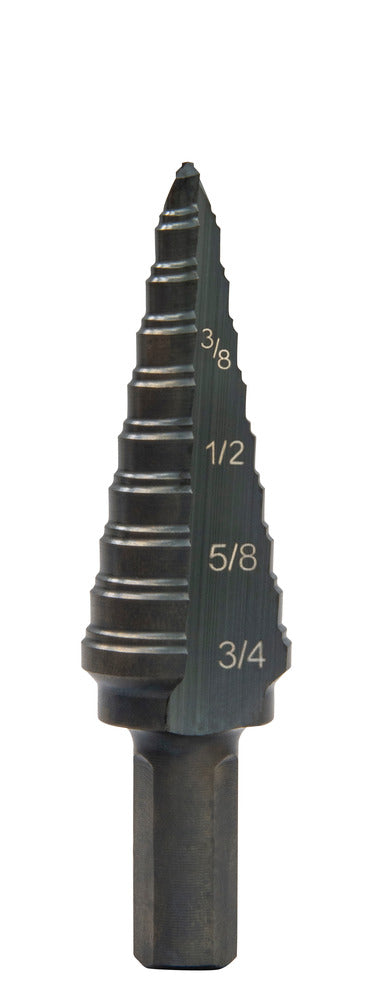

Greenlee GSB03 3/4" Step Bit (#3)

• Durable split-point tip for fast, accurate material penetration.
• Patented split-step design optimizes chip load for fast, smooth cutting, and more holes per charge.
• Progressive cutting edges provides power tool balanced aggression to maximize torque efficiency and minimize stalling.
• Improved double flute design for superior chip evacuation, cutting speeds and tool life.
• Three-flat shank for all 1/2” drill chucks.
• Laser markings for quick, easy product and size identification.
• Replaced 30005

Product Specifications:

Type:	Multi-hole Step Bit
Application:	Cuts mild steel, aluminum, brass, copper, wood, fiberglass, plastics and laminates
Number of Drill Stages:	10
Minimum Drill Diameter:	3/16" (4.8 mm)
Maximum Drill Diameter:	3/4" (19.1 mm)
Maximum Sheet Metal Thickness:	10 gauge (3.5 mm)

GSB Series Step Bits Datasheet
