Freud 99-861 1-11/16" Premier Adjustable Rail & Stile Bit - Ogee

Save 38%
Original price $143.16
Current price $89.22
SKU 99-861
Currently 1 in stock.

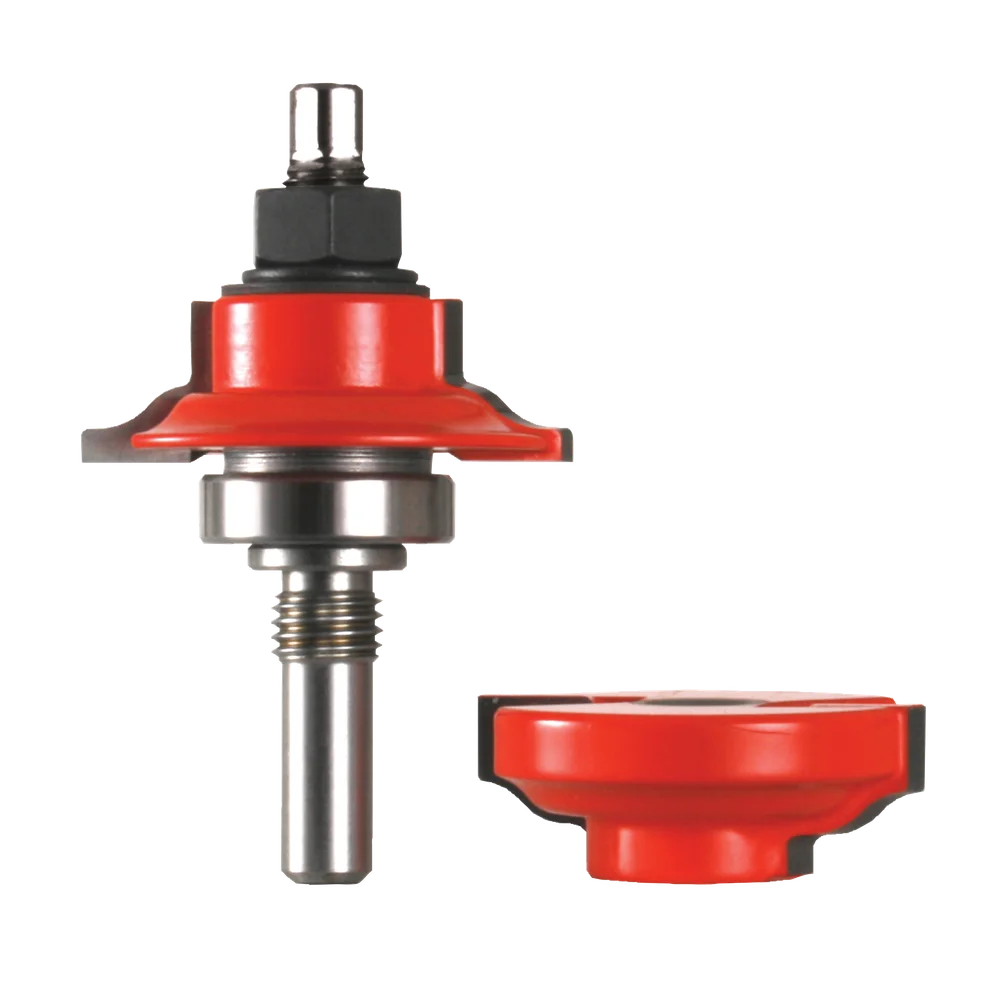

Freud 99-861 1-11/16" Premier Adjustable Rail & Stile Bit - Ogee

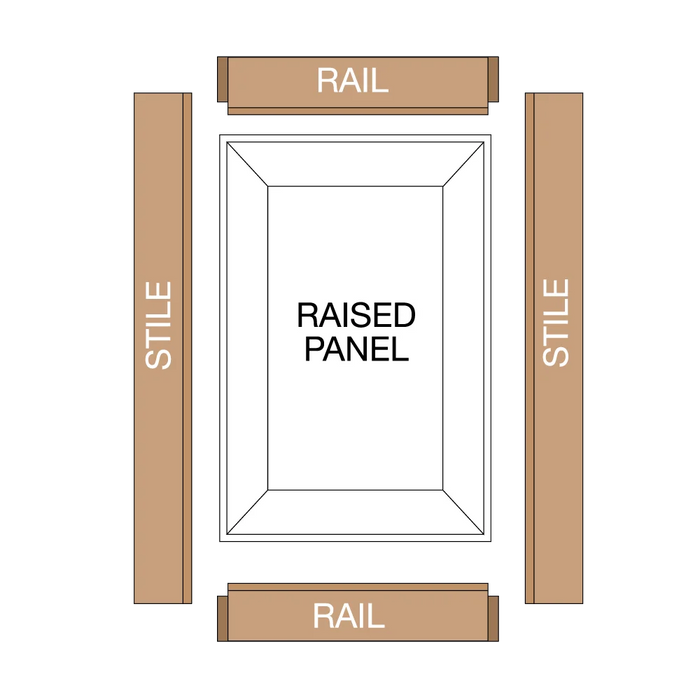

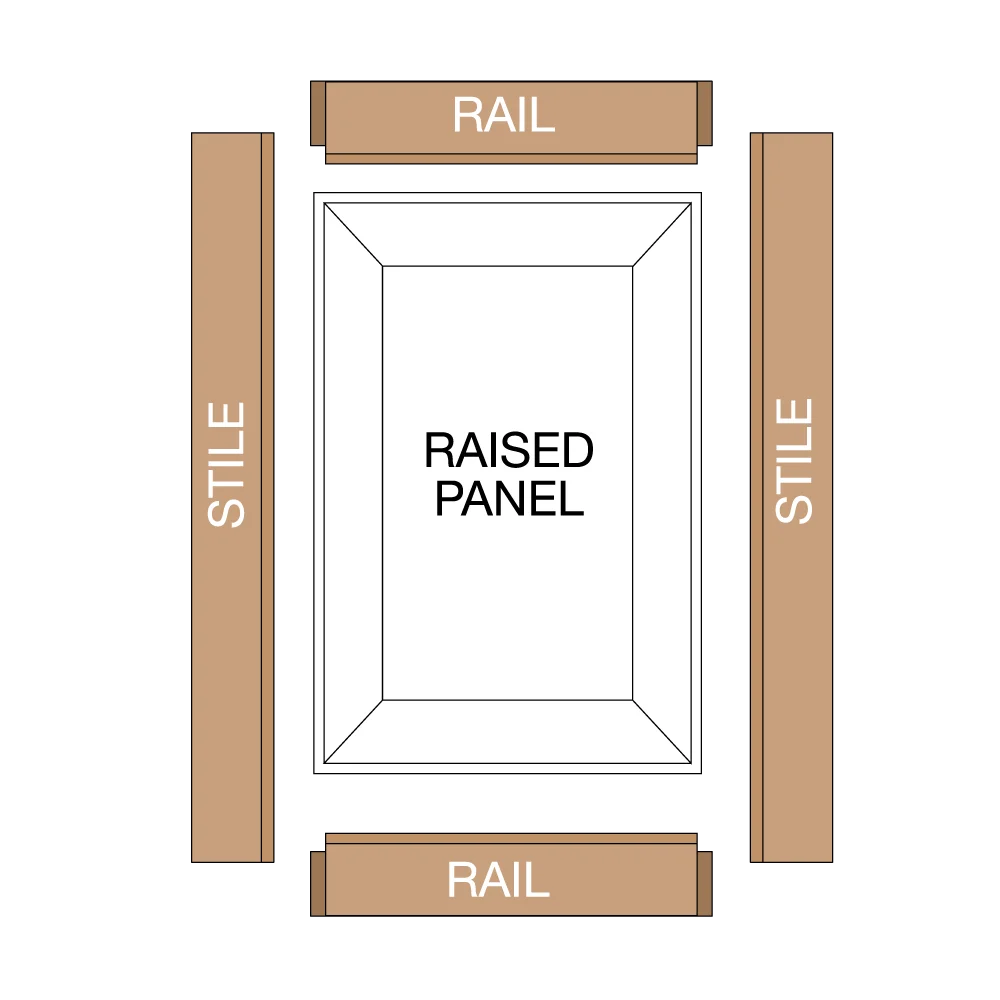

Freud's unique Premier Adjustable Rail and Stile System builds perfect doors in material from 5/8" to 1-1/4" thick, and also features Freud's patented technology for producing extra-strong long tenon joints. The System also includes adjustable shims to adjust the panel groove from 7/32"(5.5mm) for thinner plywood panels to 3/8" (9.5mm) thick for larger solid wood raised panels. Offered in five different profiles to suit any project! For even more versatility, add optional cutters to produce double-sided doors, or the optional cutter for glass and screen door construction. Use in table-mounted routers to mill and hardwood or softwood.

  • Build rail and stile doors with your choice of five different profiles with thickness from 5/8" to 1-1/4"
  • Patented Extended Tenon Capability for milling extra-strong long tenon joints
  • Unique cutter geometry to eliminate tearout
  • TiCo™ Hi-Density Carbide to maximize bit life and material finish
  • Freud Perma-SHIELD® Coating
Ideal For: producing extra-strong long tenon joints

Used in Combination With #99-761 - 1-11/16" Premier Adjustable Rail & Stile Bit - Ogee

TECHNICAL SPECIFICATIONS


Max RPM: 16000
Overall Dia. (D): 1-11/16"
Overall Length (H): 3-13/16"
Shank Dia. (A): 1/2"
Large Radius (R1): 13/64"
