Freud 99-569 3-1/2" Raised Panel Bit w/Backcutters

Save 38%
Original price $177.70
Current price $110.75
SKU 99-569
Currently 1 in stock.

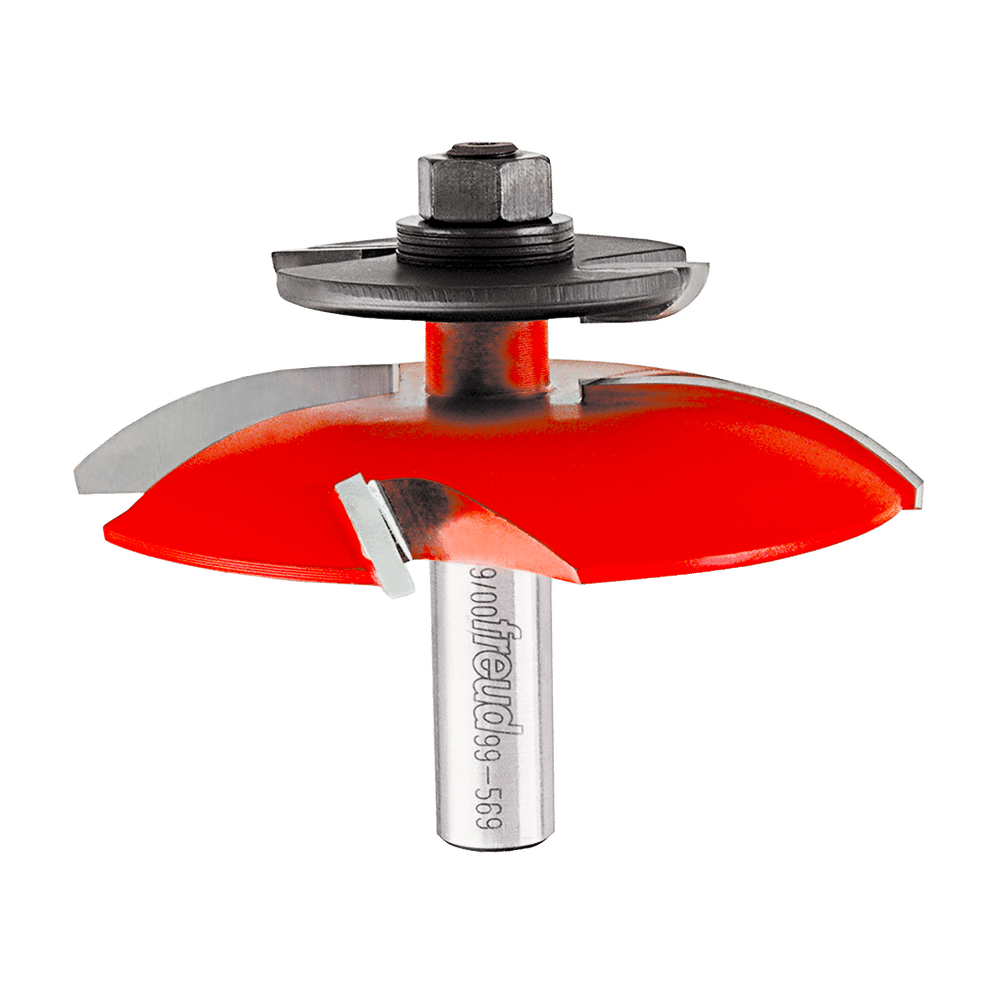

Freud 99-569 3-1/2" Raised Panel Bit w/Backcutters

These Raised Panel Bits include a backcutter that routs a rabbet on the back of the door panel, resulting in a 3/4"-thick panel that sits flush with the doorframe for a professional, architecturally correct appearance. Shims are included to allow adjustment of tongue thickness from 7/32" to 1/4" for maximum versatility and compatibility. Exclusive Quadra-Cut™ design includes two cutters that shear upwards and two edges shearing downward to deliver a flawless finish. Use in table-mounted routers with fence only. Suitable for hardwood, softwood or composite panels.

  • Bits include backcutters to rabbet the panel back: 3/4" panels sit flush with 3/4" frame
  • Patented design allows these bits to produce a full 1-1/2" wide reveal for traditional raised panel doors
  • Cuts all composition materials, plywoods, hardwoods, and softwoods
  • Use in table-mounted routers with fence only
  • Freud Perma-SHIELD® Coating

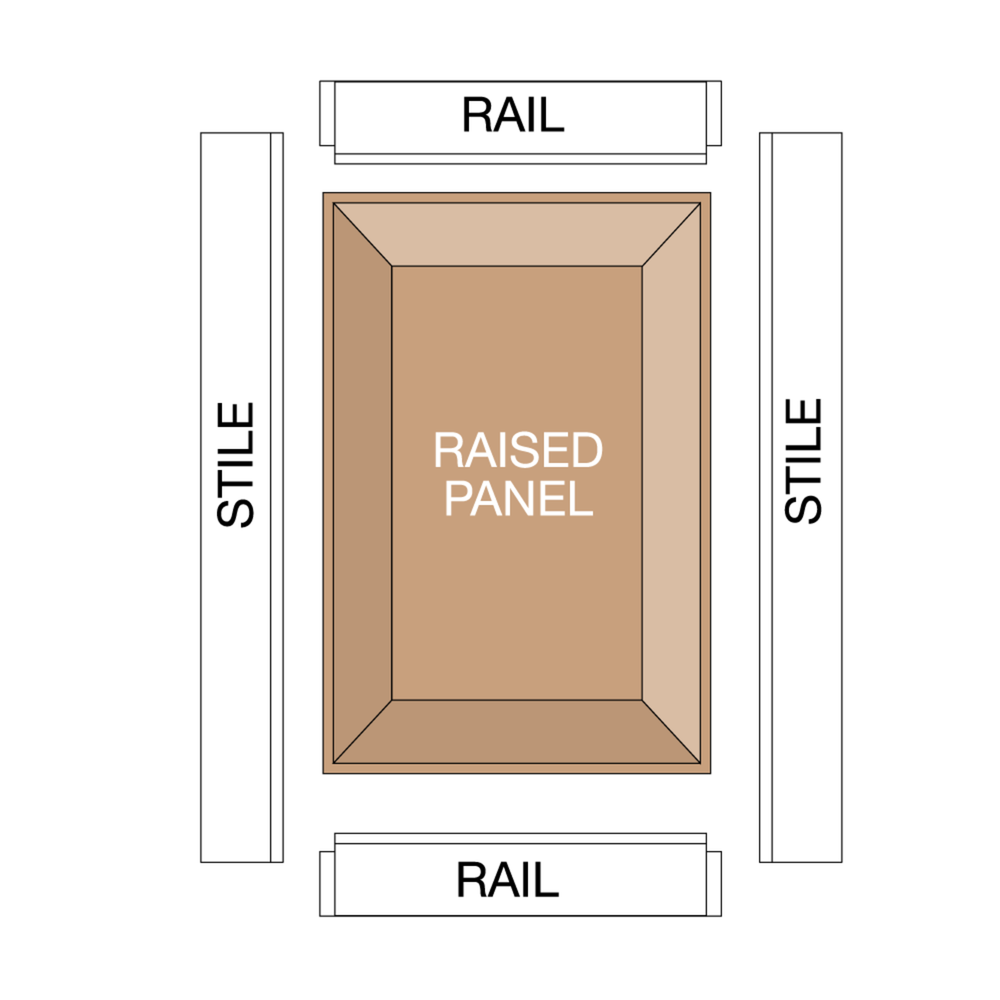

Ideal For: Creating beautiful raised panels for cabinet doors or wall paneling

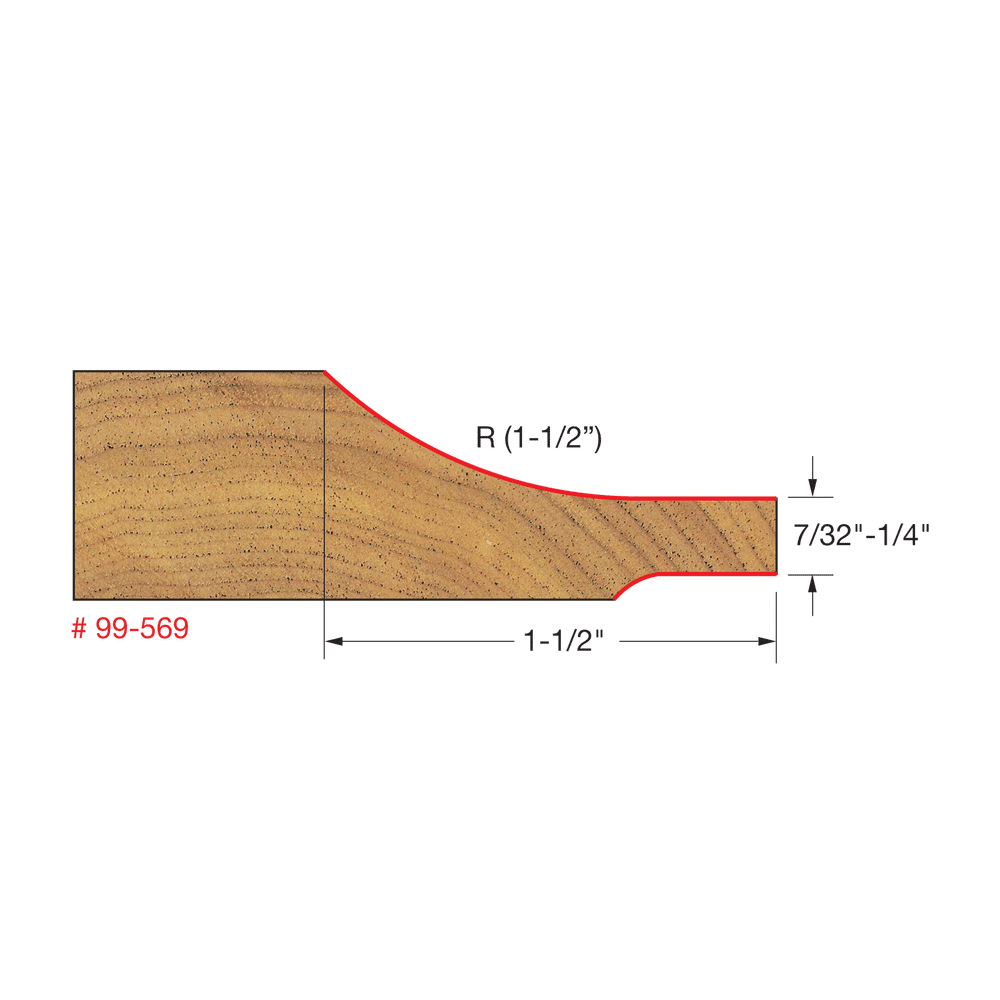

TECHNICAL SPECIFICATIONS

LARGE RADIUS (R1): 1-1/2"
MINOR HEIGHT (M): 5/32"
NUMBER OF CUTTERS: 4
OVERALL DIA. (D): 3-1/2"
OVERALL LENGTH (H): 3"
SHANK DIA. (A): 1/2"
SMALL RADIUS (R2): 3/16"
CARBIDE HEIGHT (H): 1"
