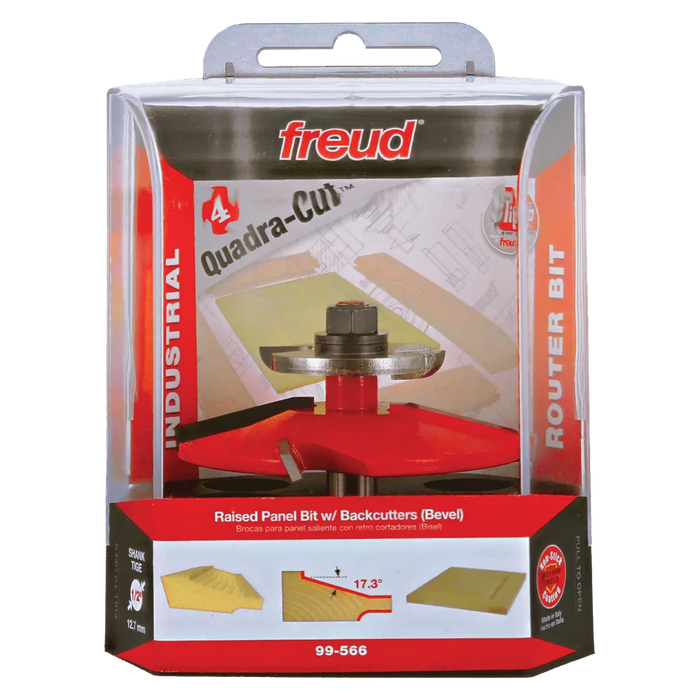

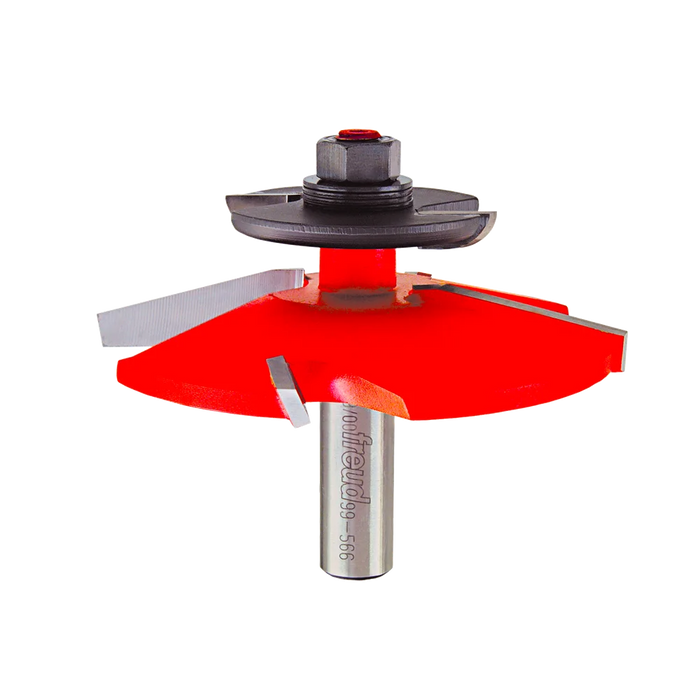

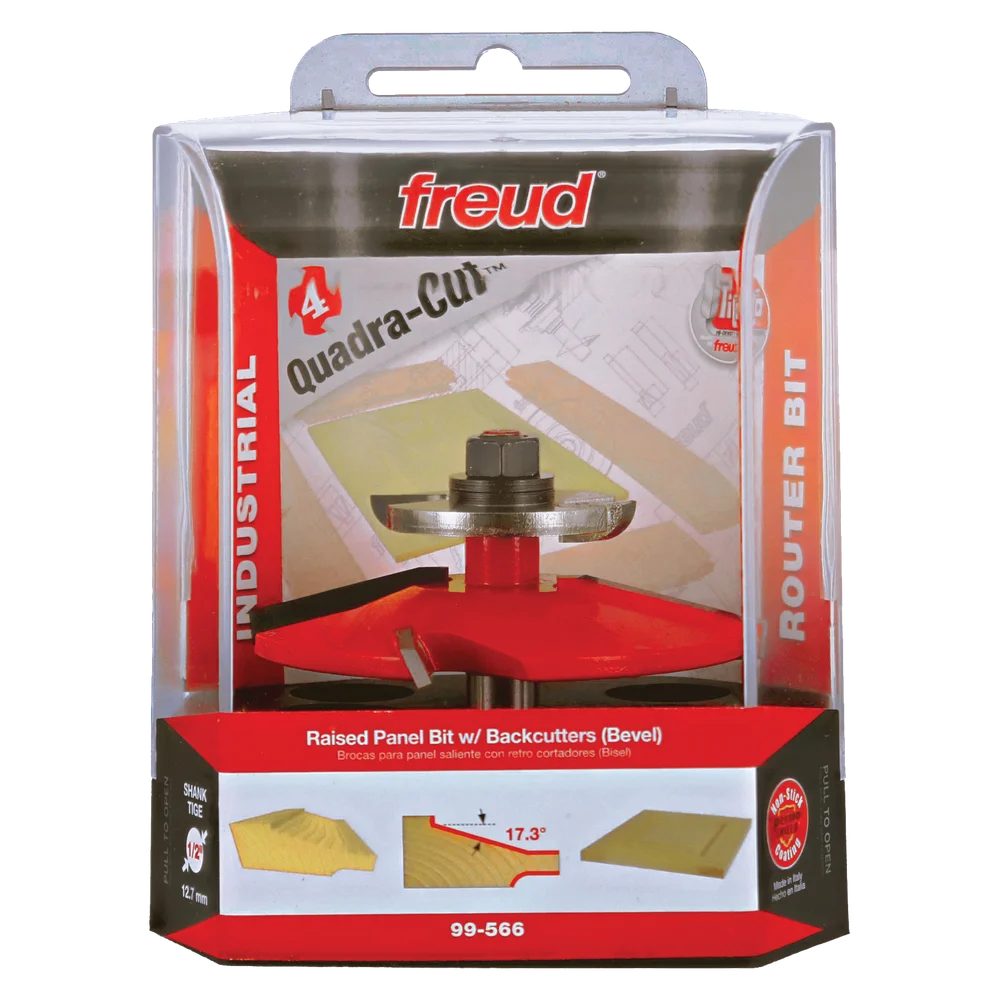

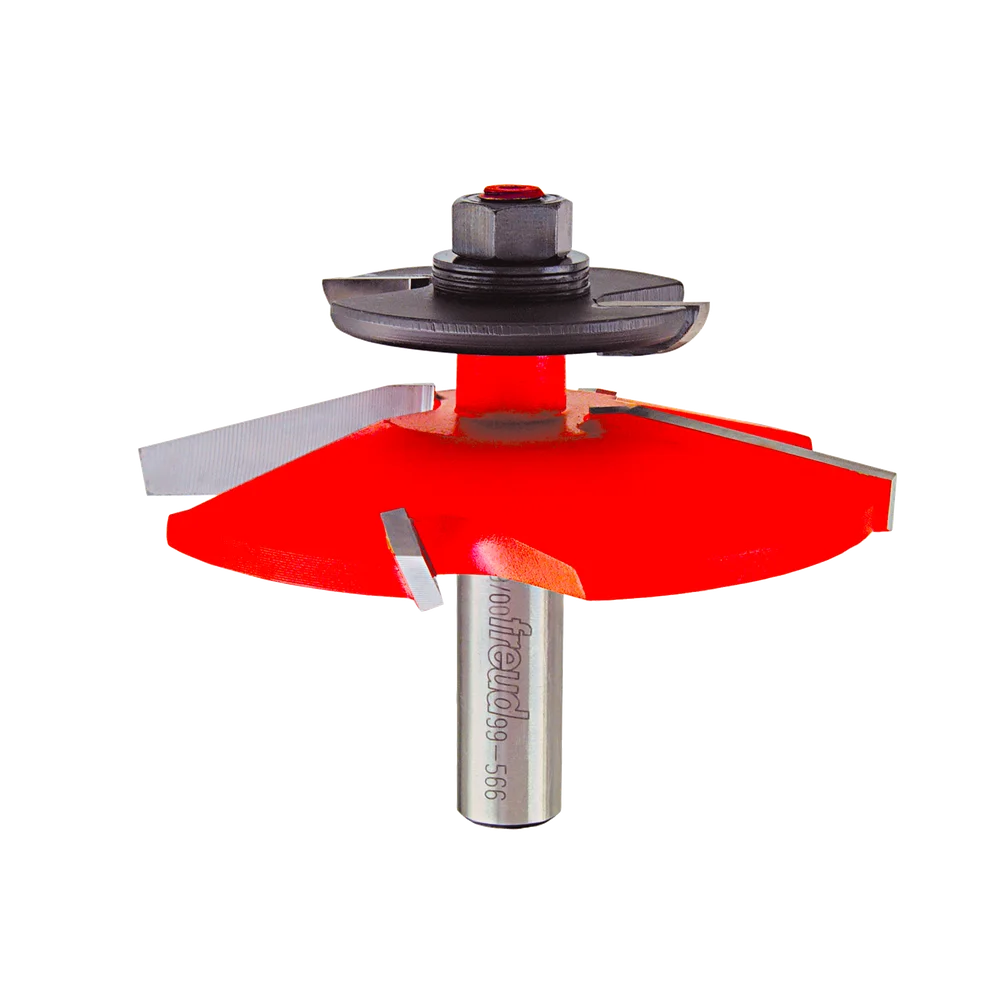

Freud 99-566 3-1/2" Raised Panel Bit with Backcutters
Save 30%
Original price
$177.70
Current price
$124.97
SKU 99-566
Freud 99-566 3-1/2" Raised Panel Bit with Backcutters
These Raised Panel Bits include a backcutter that routs a rabbet on the back of the door panel, resulting in a 3/4"-thick panel that sits flush with the doorframe for a professional, architecturally correct appearance. Shims are included to allow adjustment of tongue thickness from 7/32" to 1/4" for maximum versatility and compatibility. Exclusive Quadra-Cut™ design includes two cutters that shear upwards and two edges shearing downward to deliver a flawless finish. Use in table-mounted routers with fence only. Suitable for hardwood, softwood or composite panels.
- Bits include backcutters to rabbet the panel back: 3/4" panels sit flush with 3/4" frame
- Patented design allows these bits to produce a full 1-1/2" wide reveal for traditional raised panel doors
- Cuts all composition materials, plywoods, hardwoods, and softwoods
- Use in table-mounted routers with fence only
- Freud Perma-SHIELD® Coating

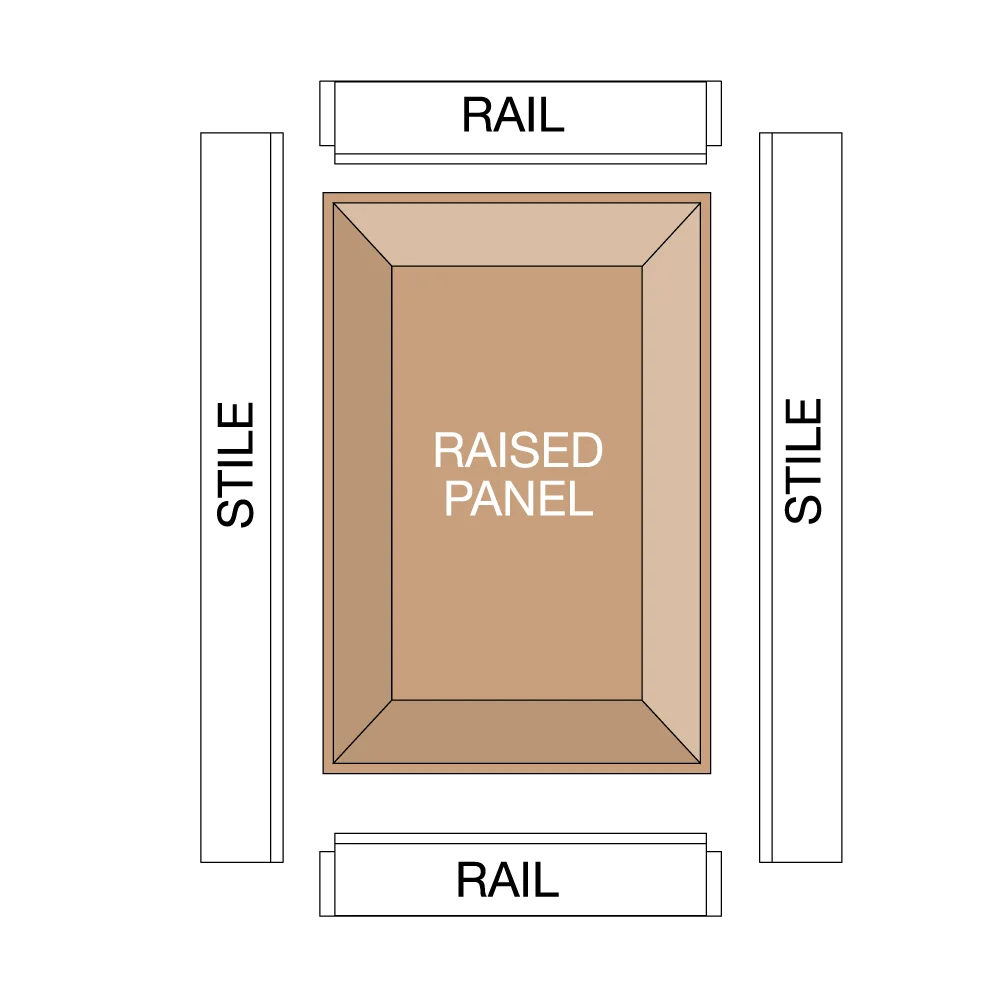

Ideal For: Creating beautiful raised panels for cabinet doors or wall paneling
TECHNICAL SPECIFICATIONS
| LARGE RADIUS (R1): | 1-3/16" |
| NUMBER OF CUTTERS: | 4 |
| OVERALL DIA. (D): | 3-1/2" |
| OVERALL LENGTH (H): | 3" |
| SHANK DIA. (A): | 1/2" |
| SMALL RADIUS (R2): | 3/16" |
| CARBIDE HEIGHT (H): | 1" |
| MAX RPM: | 12000 |
| MINOR HEIGHT (M): | 5/32" |
