Freud 99-061 1‑1/2" Rail & Stile Profile Bit
Sold out
Original price
$78.64
Current price
$56.47
SKU 99-061

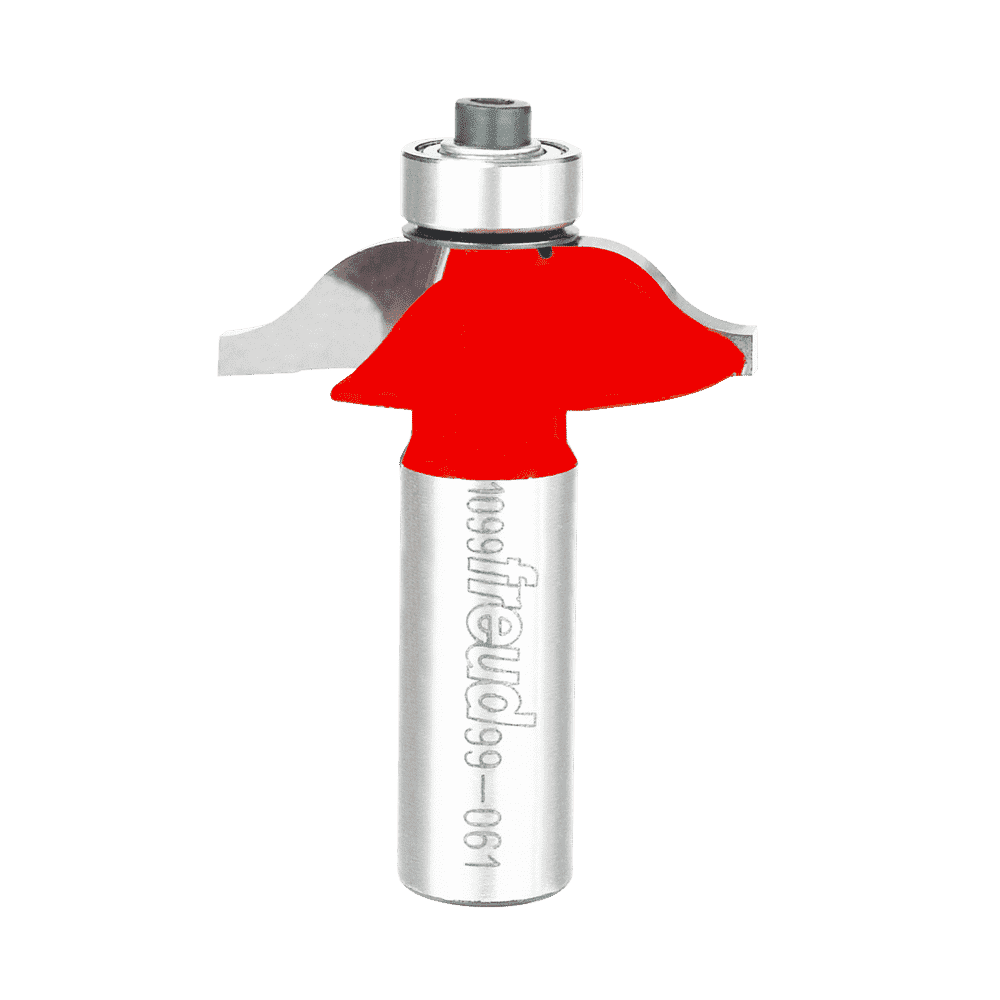

Freud 99-061 1‑1/2" Rail & Stile Profile Bit

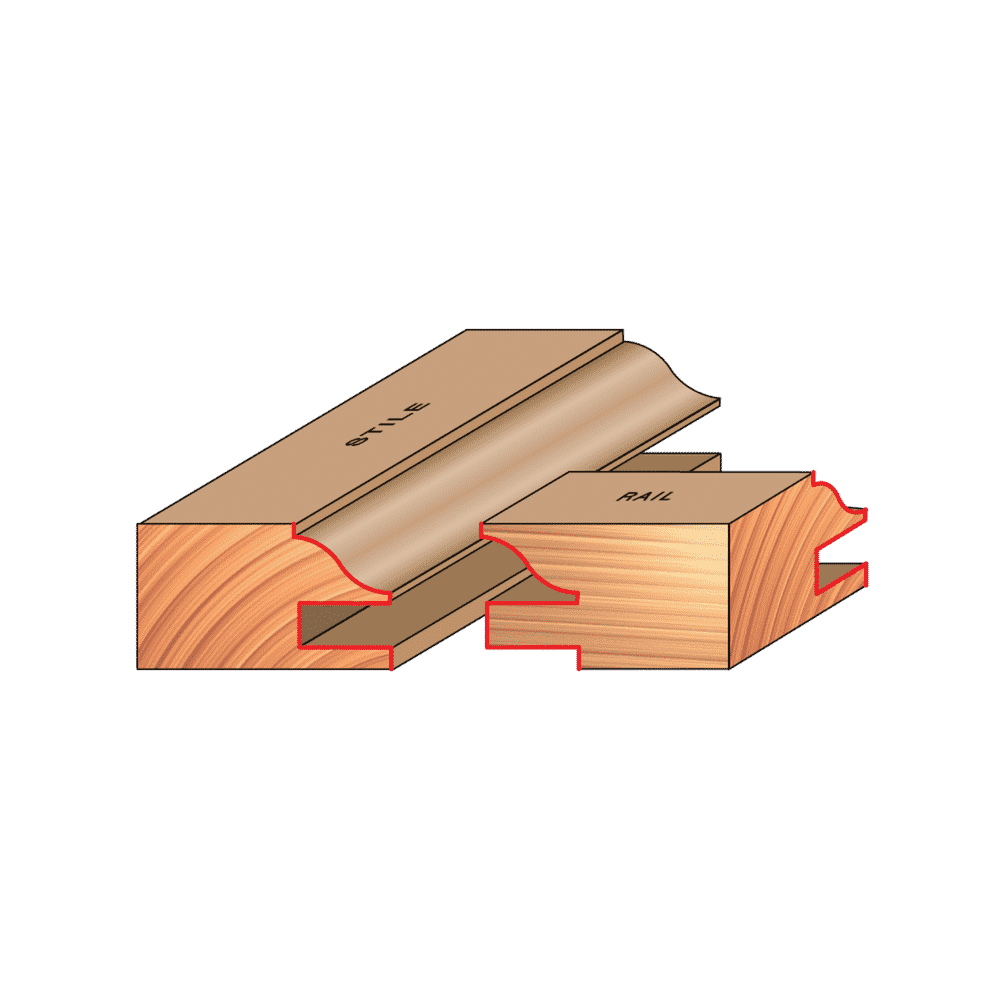

These cleverly-designed bits produce both the rail and stile ogee shapes for your doors with a single bit. Use the 99-060 or 99-061 bits to rout cope and stick profile cuts on the rails and stiles. Then use the 99-062 to rout the panel slot and the back of the tongue on the coped piece. The result is a complete rail and stile match for any cabinet door project. Use with hand-held or table-mounted routers to cut hardwood or softwood door parts.
- One profile bit routs the rail and stile shapes on both stile and rail
- Add the 99-062 to rout the panel slot and back of the rail cut
- Use with hand-held or table-mounted routers to cut hardwood or softwood door parts
- Freud Perma-SHIELD® Coating
Ideal For: Matching, reversible profiles for cope & stick joints
TECHNICAL SPECIFICATIONS
| MINOR HEIGHT (M) | 1/8" |
| NUMBER OF CUTTERS | 2 |
| OVERALL DIA. (D) | 1-1/2" |
| OVERALL LENGTH (H) | 2-1/4" |
| SHANK DIA. (A) | 1/2" |
| CARBIDE HEIGHT (H) | 3/8" |

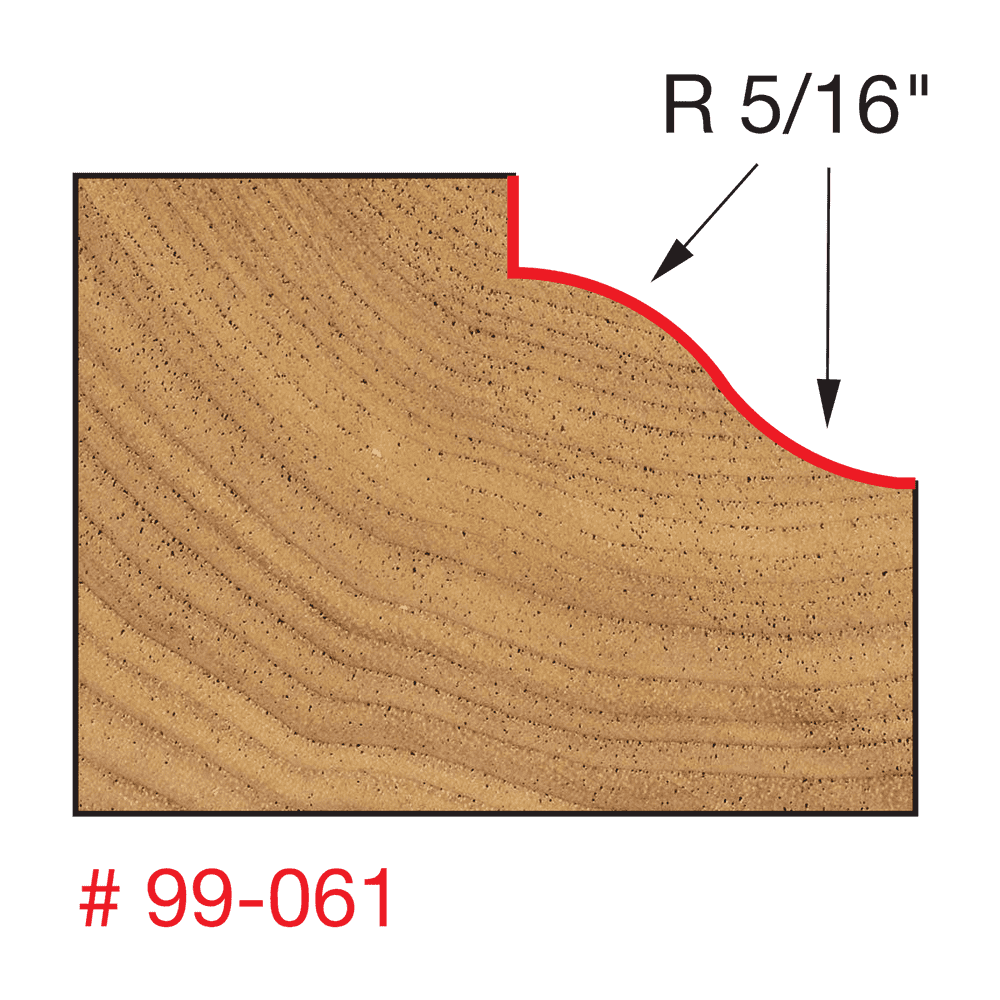

| RADIUS (R) | 5/16" |
