Description

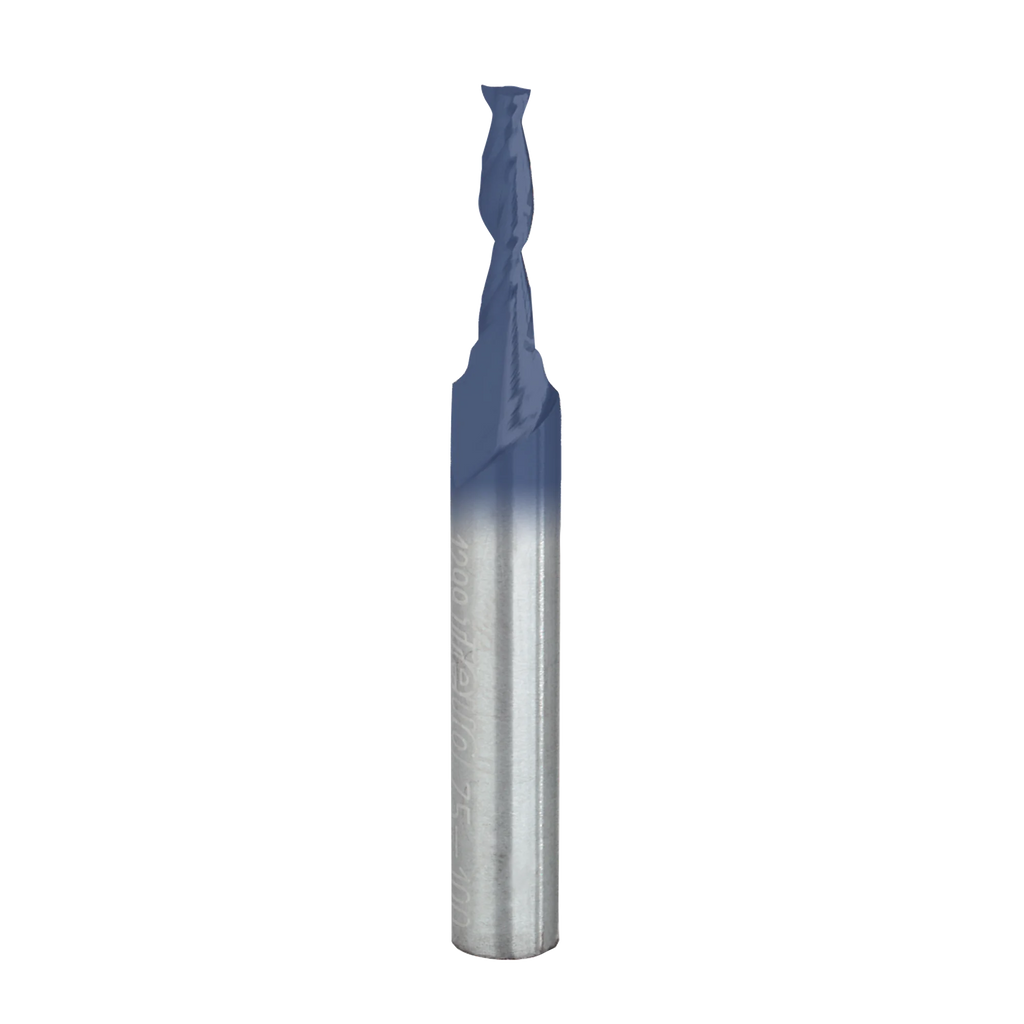

Freud 75-100 1/8" Up Spiral Bit

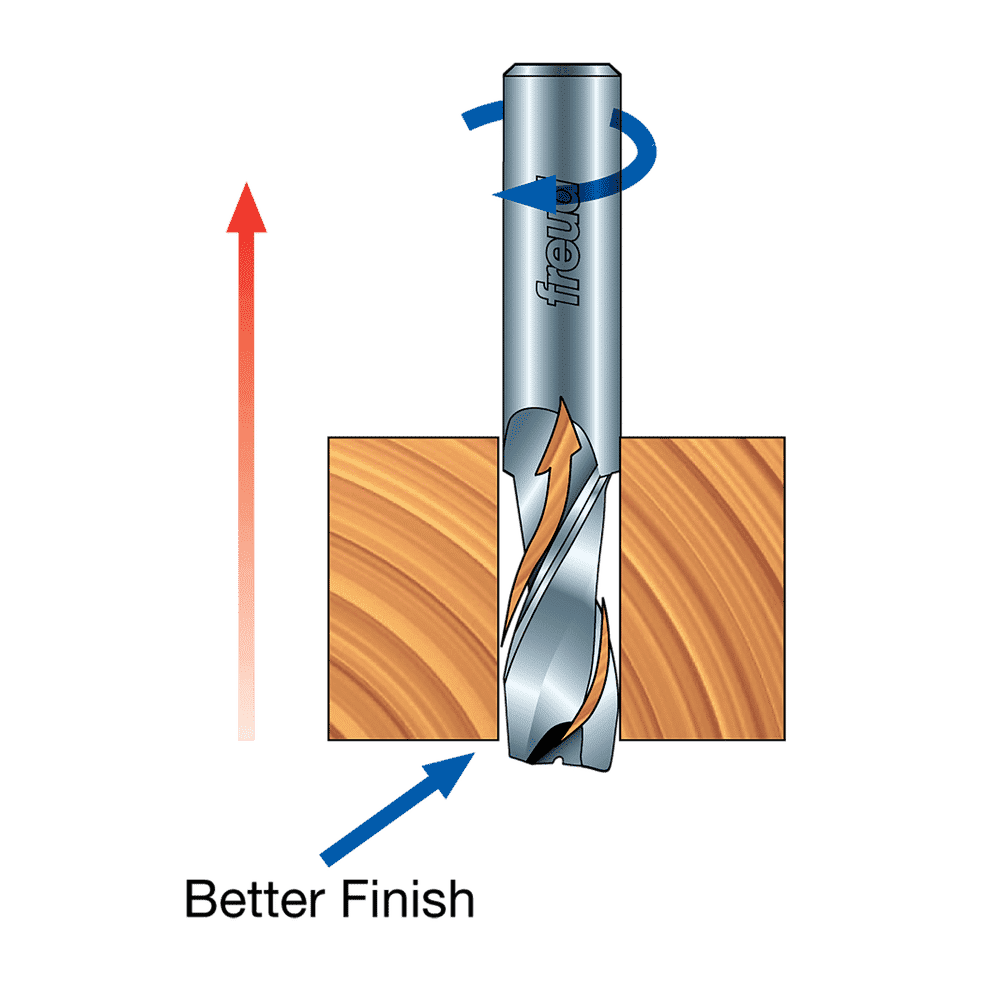

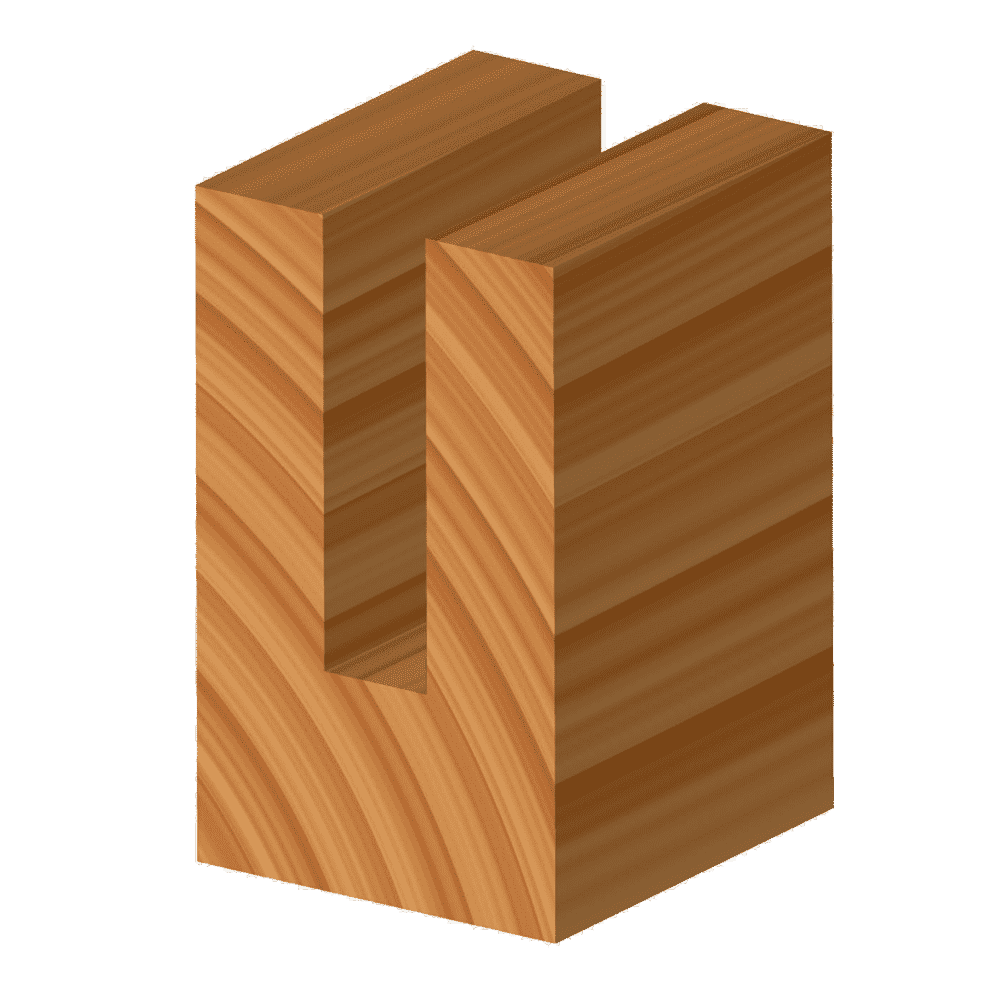

Solid carbide up spiral bits combine effective chip removal with a cut quality that can’t be matched by standard straight bits. Ideal for through-cuts, mortises and deep blind holes in production applications. The up spiral design provides the best cut quality on the bottom surface of the material. Use these bits in CNC, hand-held or table-mounted routers.
- Fast chip removal with excellent quality and long life
- Use in CNC, hand-held and table-mounted routers
- Black I.C.E. coating for cool cutting edge and superior chip evacuation
- Freud Premier Solid Carbide
- Black I.C.E. + Freud TiCo™ Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits
Ideal For: high-volume production settings

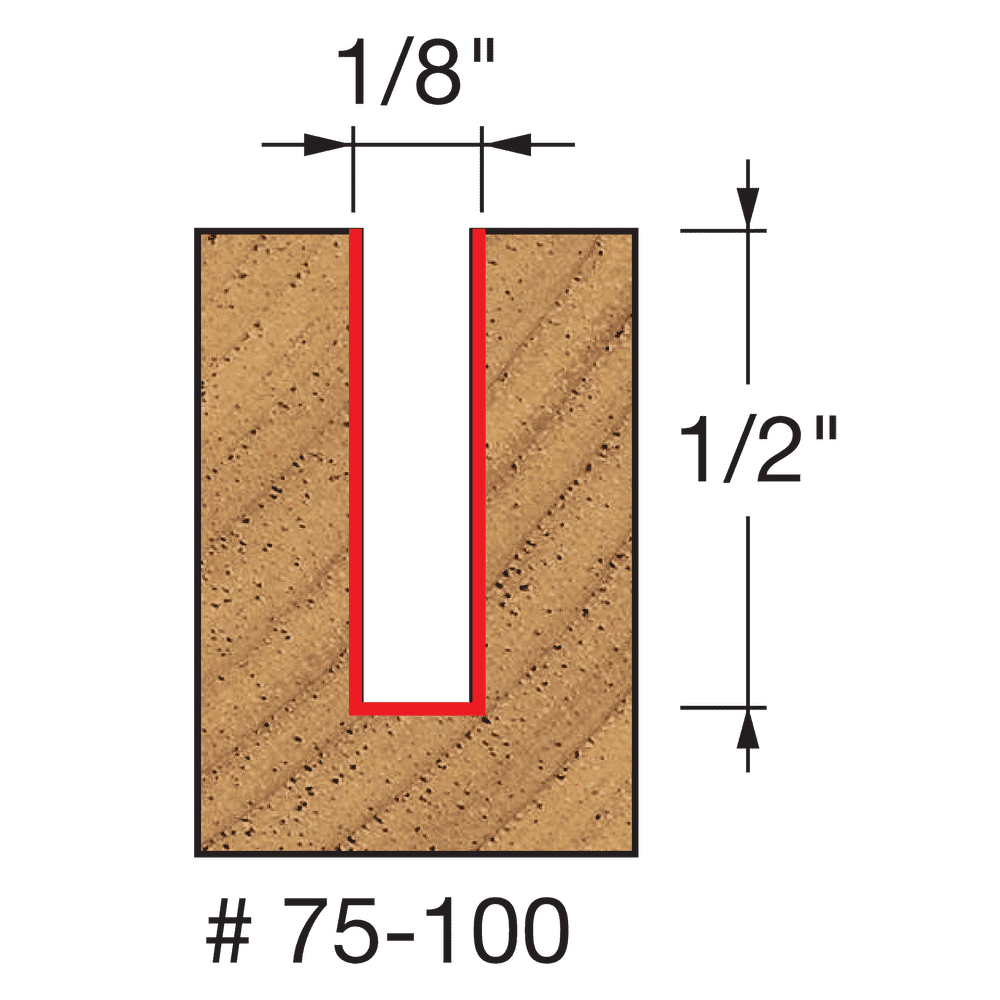

TECHNICAL SPECIFICATIONS
| NUMBER OF CUTTERS: | 2 |
| OVERALL DIA. (D): | 1/8" |
| OVERALL LENGTH (H): | 2" |
| SHANK DIA. (A): | 1/4" |
| CARBIDE HEIGHT (H): | 1/2" |
| MAX RPM | 24000 |
