Freud 75-025 1/4" O-Flute Up Spiral Bit - Edmondson Supply

Freud 75-025 1/4" O-Flute Up Spiral Bit

Save 37%
$84.63
$53.29
SKU 75-025
Currently 1 in stock.

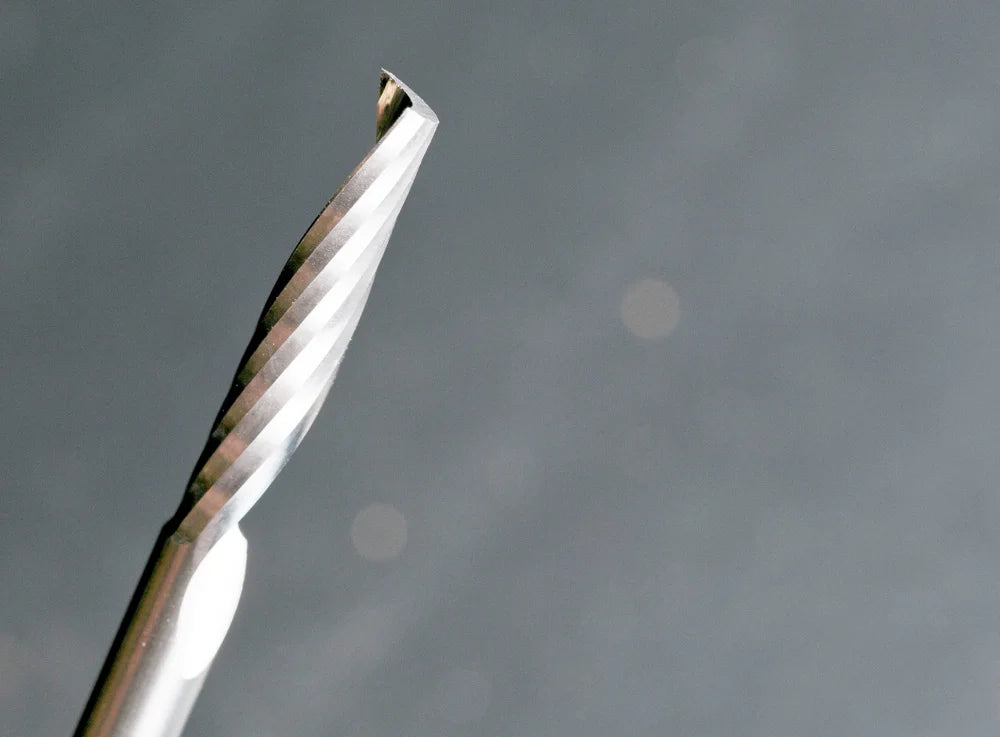

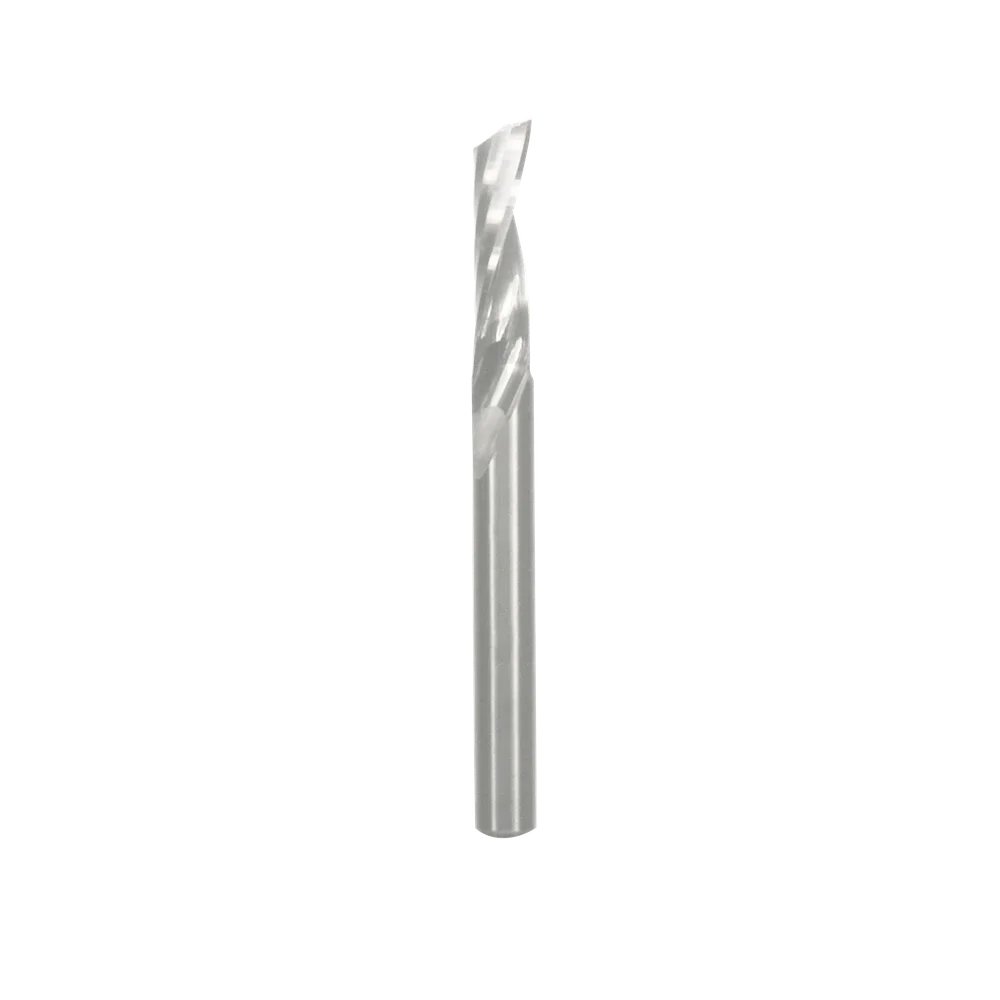

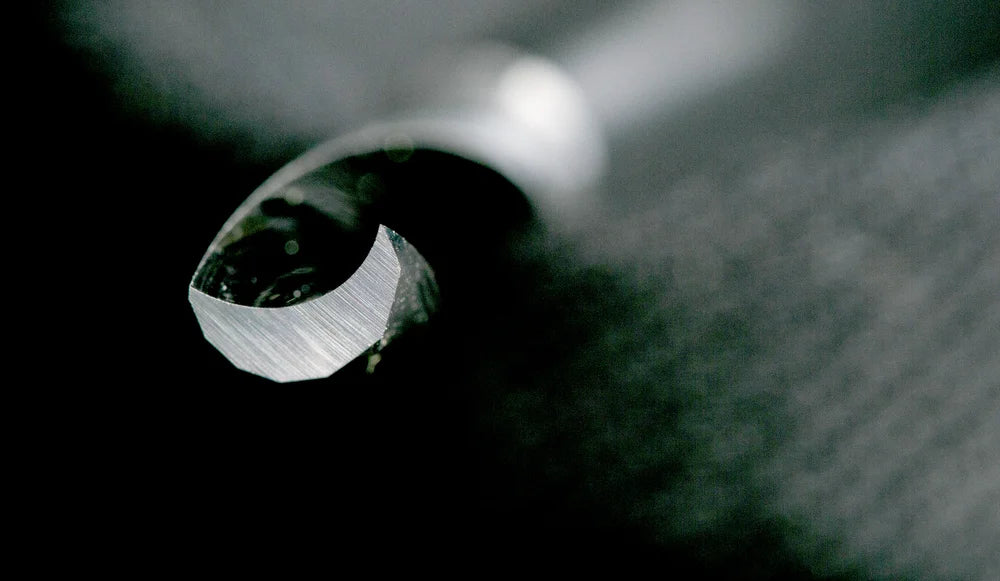

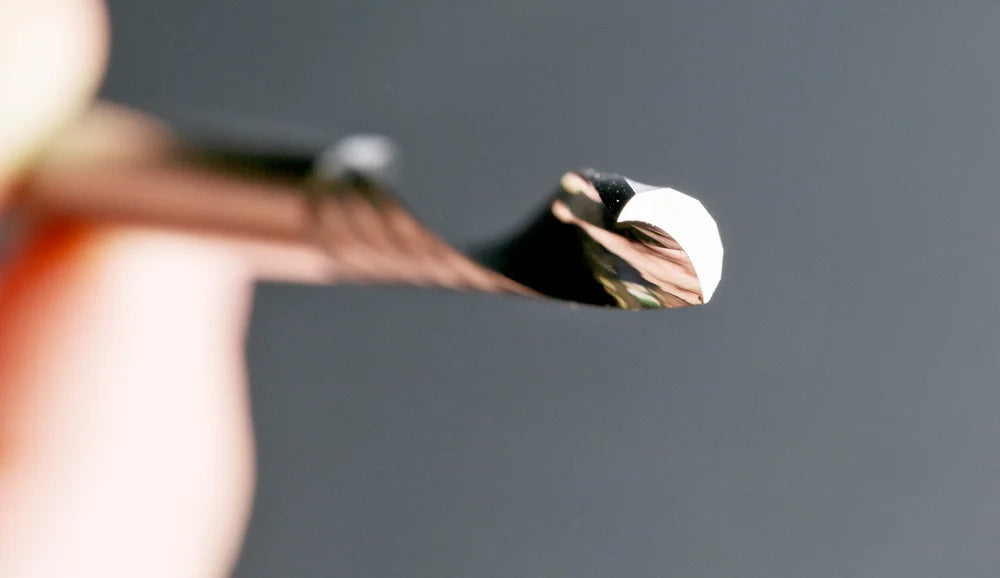

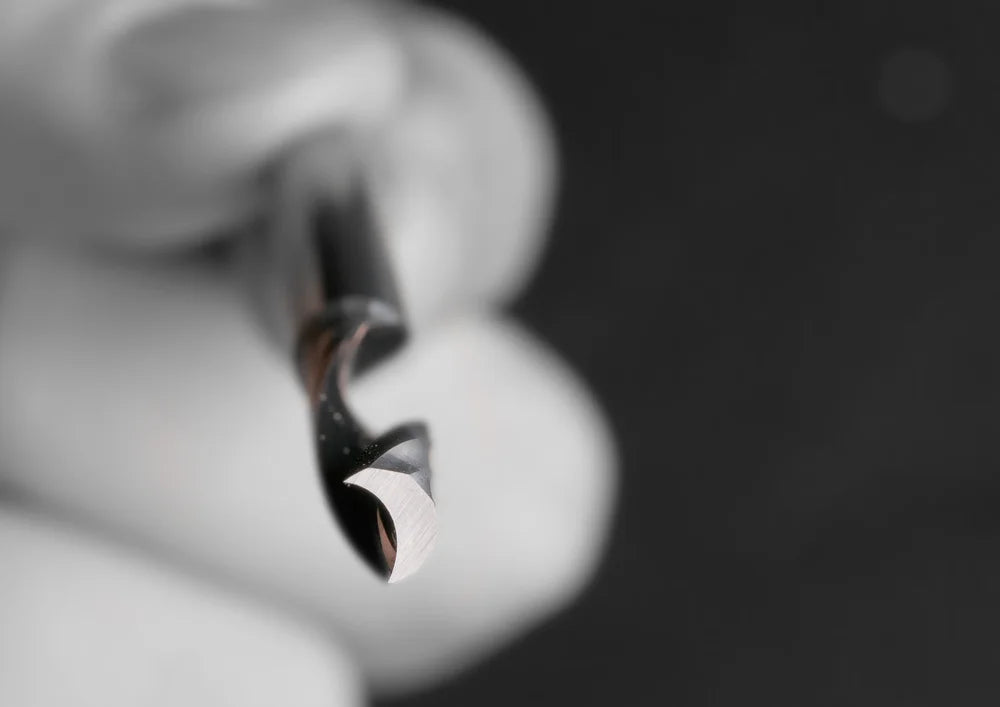

Freud 75-025 1/4" O-Flute Up Spiral Bit

Freud O-Flute bits are designed for smooth finishes on solid surface and plastics such as ABS, UHMW, acrylic, nylon and polycarbonate. The up shear design provides fast chip clearance, and delivers the best cut quality on the bottom surface. The O-Flute design delivers cooler cuts in plastic to avoid melting. Use these bits in any CNC, hand-held or table-mounted router. Also a good choice for fine wood cuts. Always make multiple passes for deep cuts in hard materials. Specialty designed for Soft Plastic Material (UHMW, ABS, PC, PS, PP, PET, HDPE, HIPS)

  • Smooth cuts in solid surface and plastics
  • Up Shear design clears chips fast, delivers cleanest cut on bottom surface
  • O-Flute design cuts cooler, avoids melting
  • Use in CNC, hand-held and table-mounted routers
  • Black I.C.E. coating for cool cutting edge and superior chip evacuation
  • Freud Premier Solid Carbide
  • Black I.C.E. + Freud TiCo™ Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits
Ideal For: ABS, UHMW, acrylic, nylon and polycarbonate



TECHNICAL SPECIFICATIONS

NUMBER OF CUTTERS 1
MAX RPM 24000
CARBIDE HEIGHT (H) 7/8"
OVERALL DIA. (D) 1/4"
OVERALL LENGTH (H) 2-1/2"
SHANK DIA. (A) 1/4"
