Freud 66-100 1/4" Bevel Trim Bit
Save 37%
Original price
$16.32
Current price
$10.28
SKU 66-100

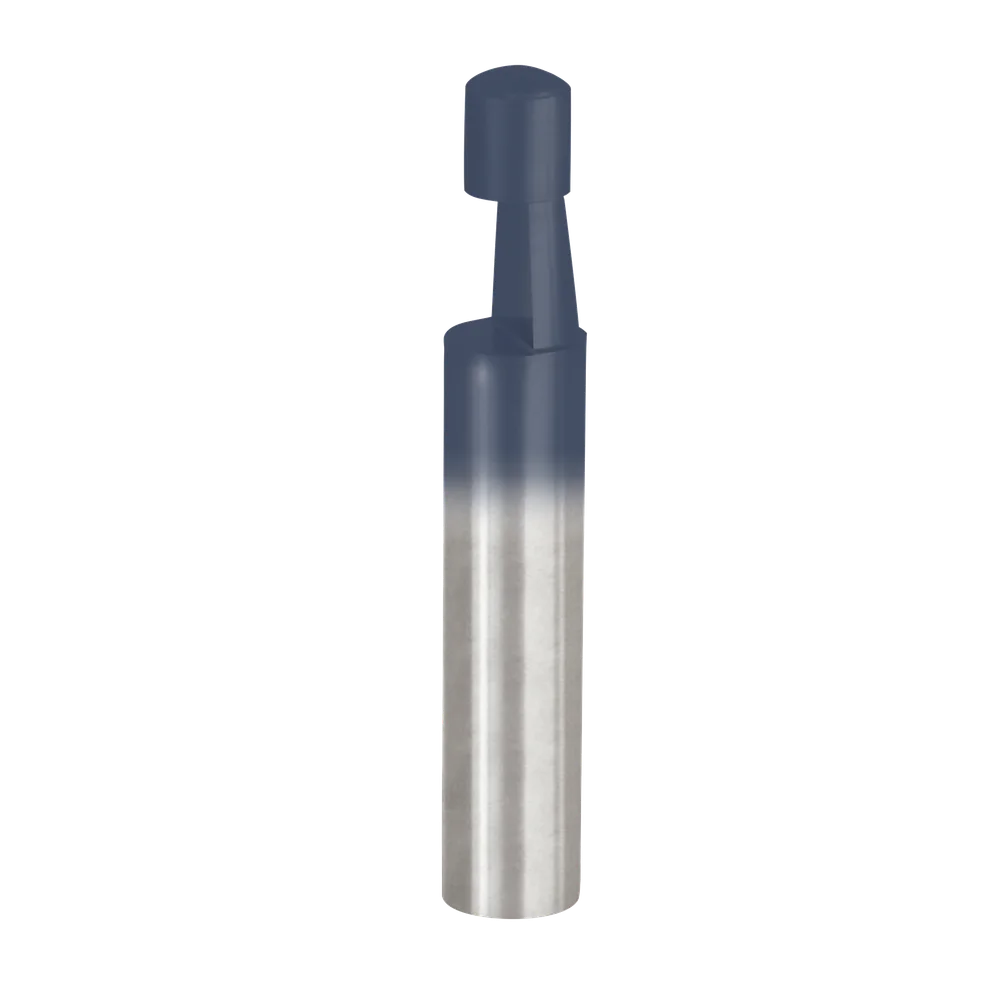

Freud 66-100 1/4" Bevel Trim Bit

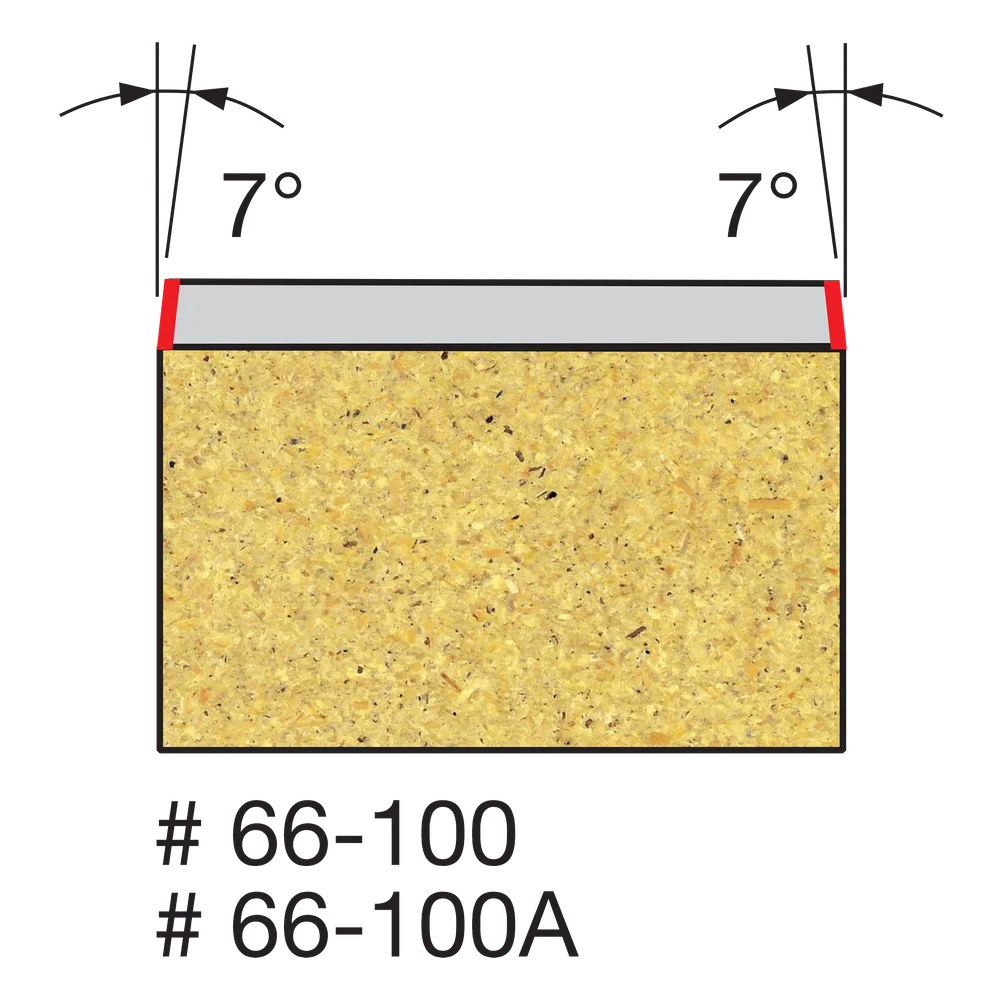

Bevel Trim Bits produce a clean, finished edge on plastic laminates with little or no filing. Choose among bevel angles from 8 degrees to 45 degrees in the 41-series bits, which also include a ball bearing guide. Or choose the solid carbide 66-100 for a 7 degree bevel in a very cost effective tool.
- Black I.C.E. coating for cool cutting edge and superior chip evacuation
- Black I.C.E. + Freud TiCo™ Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits
Ideal For: Fast bevel trim of plastic laminate
TECHNICAL SPECIFICATIONS
| NUMBER OF CUTTERS | 2 |
| MAX RPM | 24000 |
| ANGLE (D) | 7° |
| BEARING DIA. (B) | 3/16" |
| CARBIDE HEIGHT (H) | 1/4" |
| OVERALL DIA. (D) | 1/4" |
| OVERALL LENGTH (H) | 1-1/2" |
| SHANK DIA. (A) | 1/4" |
