Freud 41-104 19/32" Bevel Trim Bit

Sold out
Original price $37.60
Current price $30.47
SKU 41-104

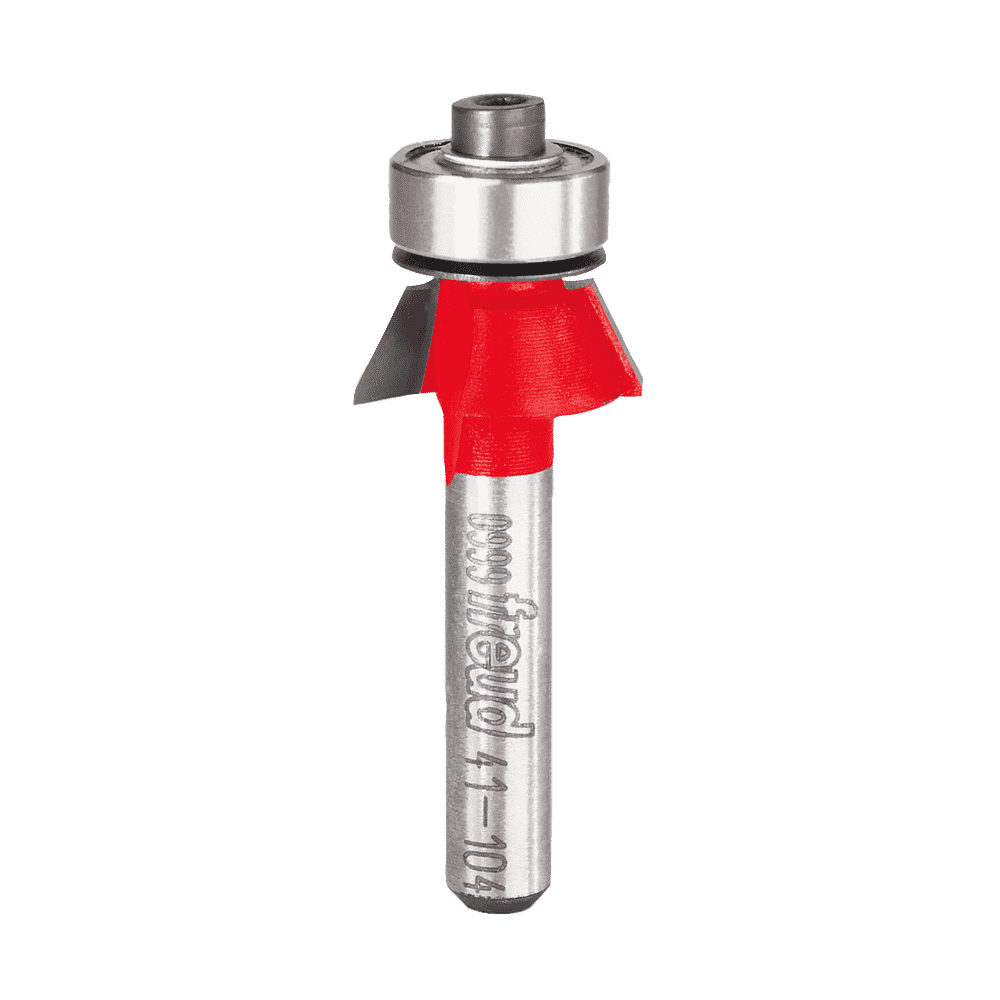

Freud 41-104 19/32" Bevel Trim Bit

Bevel Trim Bits produce a clean, finished edge on plastic laminates with little or no filing. Choose among bevel angles from 8 degrees to 45 degrees in the 41-series bits, which also include a ball bearing guide. Or choose the solid carbide 66-100 for a 7 degree bevel in a very cost effective tool.

  • Rout a clean, smooth edge of laminates with little of no time-consuming filing
  • Cuts all plastic laminates
  • 41-Series includes ball bearing guide, 66-100 is cost-effective solid carbide
  • Use in hand-held or table-mounted routers and laminate trimmers

      Ideal For: Beveled edge on plastic laminates



      TECHNICAL SPECIFICATIONS

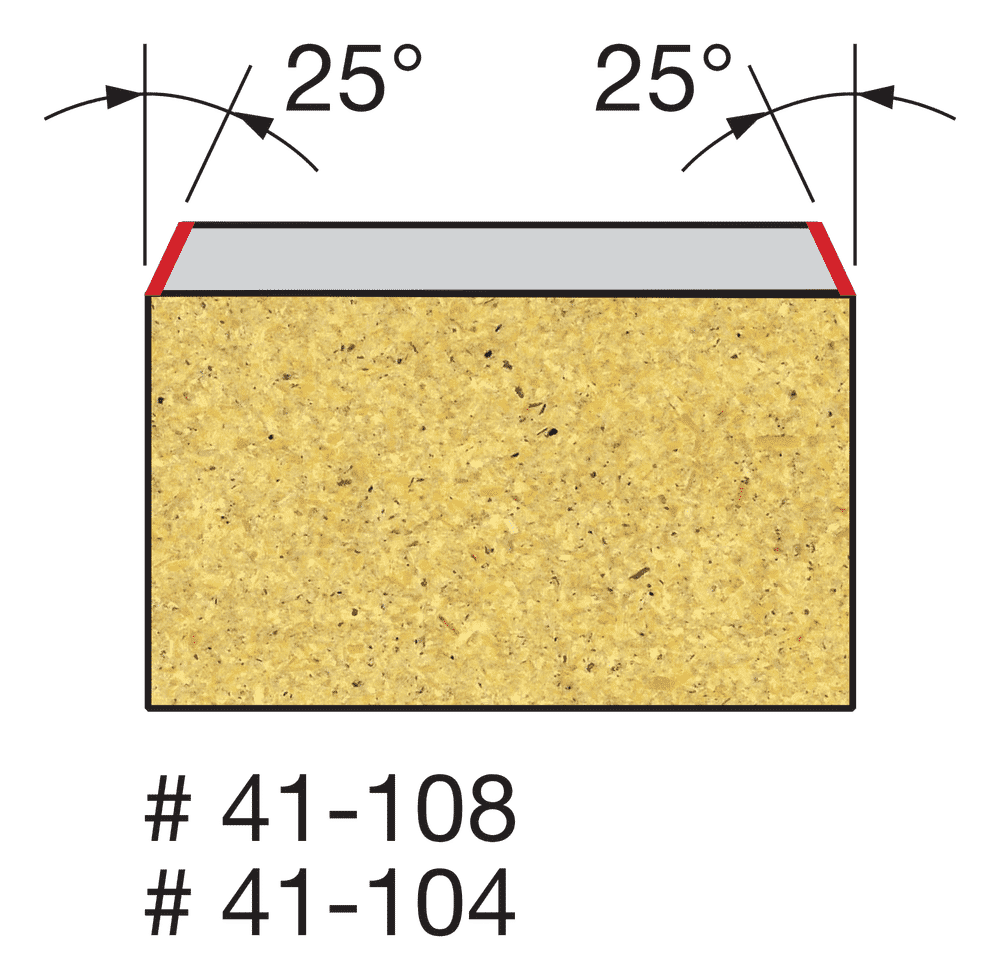

      ANGLE (D) 25°
      BEARING DIA. (B) 1/2"
      NUMBER OF CUTTERS 2
      OVERALL DIA. (D) 19/32"
      OVERALL LENGTH (H) 1-7/8"
      SHANK DIA. (A) 1/4"
      CARBIDE HEIGHT (H) 9/32"
