Freud 40-202 1‑11/32" Chamfer Bit (Overall Length: 2-1/4")
Save 37%
Original price
$60.61
Current price
$38.19
SKU 40-202

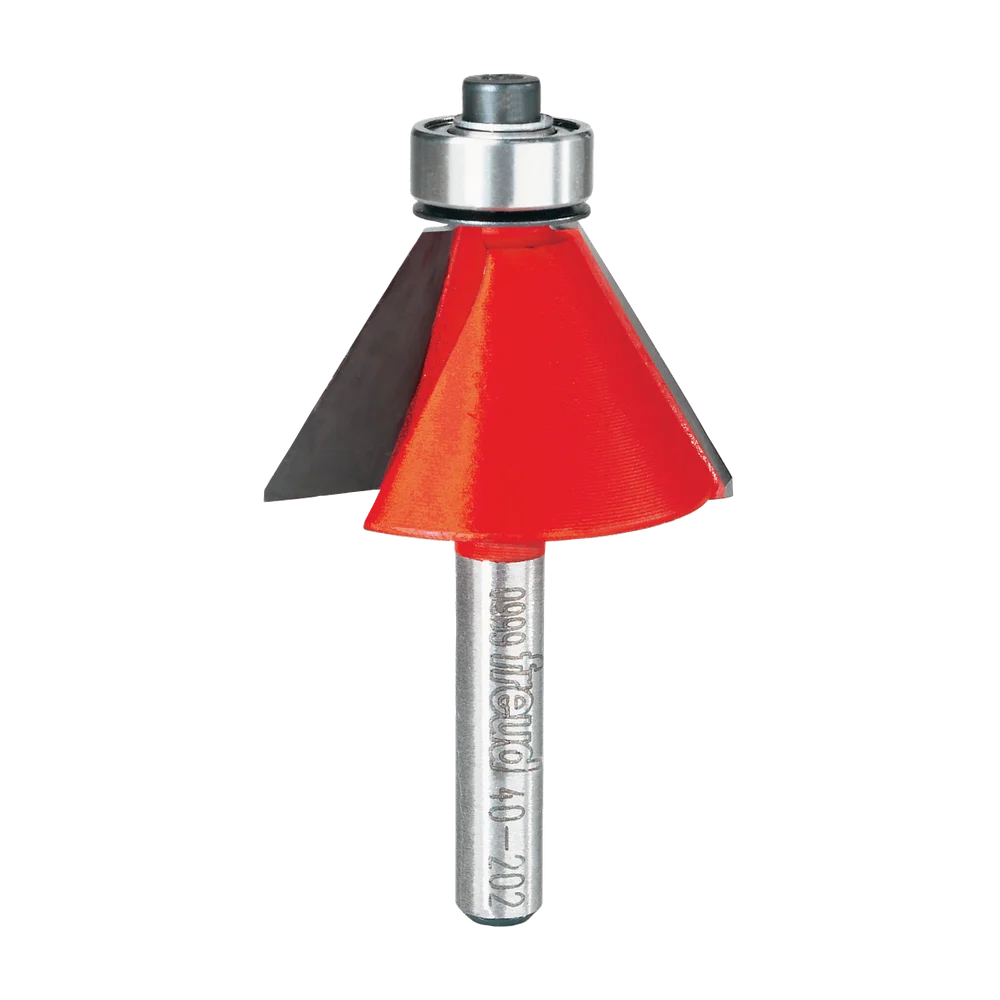

Freud 40-202 1‑11/32" Chamfer Bit (Overall Length: 2-1/4")
The chamfer profile seems simple, but it is a great solution for lots of multiple-sided projects, joinery, and easing edges. Creates a uniform chamfer on the edge of any work piece to add character, while retaining crisp geometric lines. #40-094 makes 16-sided pieces and #40-098 makes 12-sided pieces. Routs hardwood, softwood, plywood and composites; use in hand-held or table-mounted portable routers.
- Chamfer size easily adjusts by changing the height of the bit or moving the fence
- Cuts all composition materials, plywood, hardwood, and softwood
- Use on hand-held and table-mounted routers
- Freud Perma-SHIELD® Coating
Ideal For: Eased or decorative edges, or joinery with 45° bevels
TECHNICAL SPECIFICATIONS
| NUMBER OF CUTTERS | 2 |
| MAX RPM | 16000 |

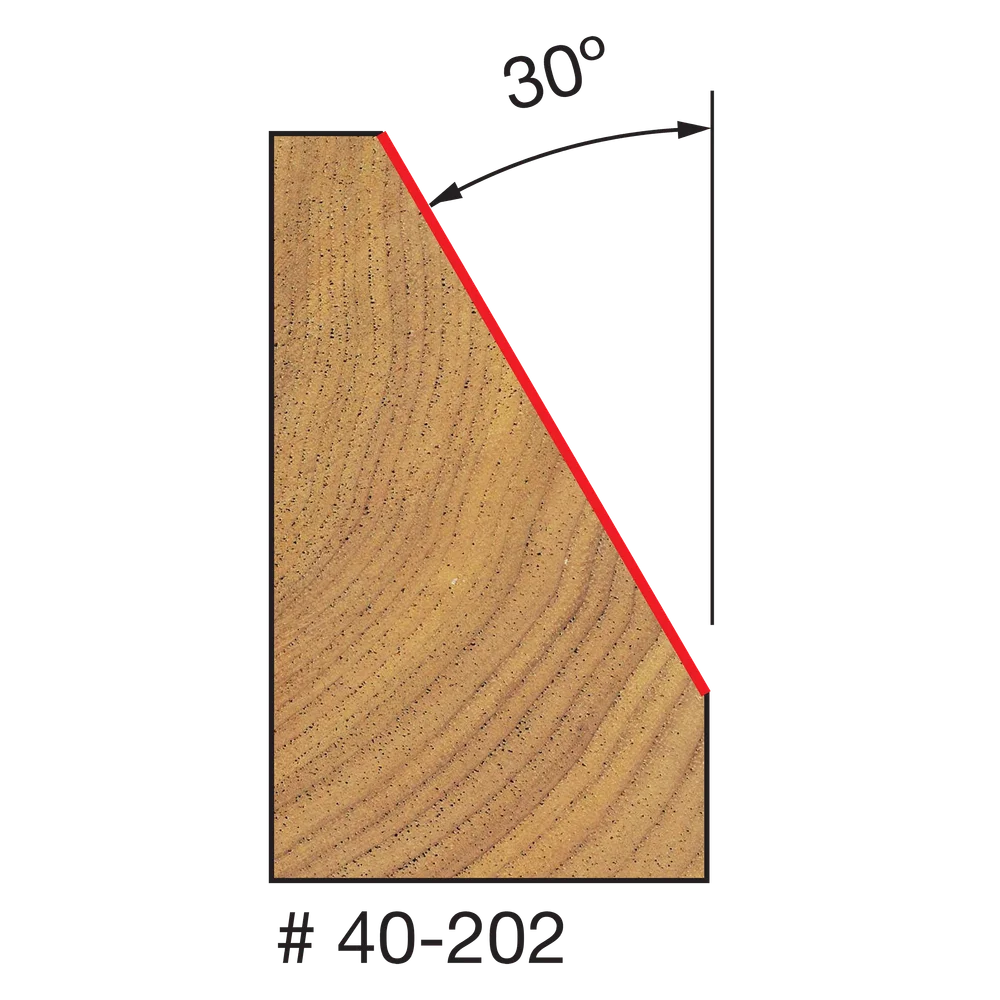

| ANGLE (D) | 30° |
| BEARING DIA. (B) | 1/2" |
| CARBIDE HEIGHT (H) | 3/4" |
| OVERALL DIA. (D) | 1-11/32" |
| OVERALL LENGTH (H) | 2-1/4" |
| SHANK DIA. (A) | 1/4" |
