Freud 40-114 1‑5/8" Chamfer Bit

Save 16%
Original price $46.41
Current price $38.97
SKU 40-114

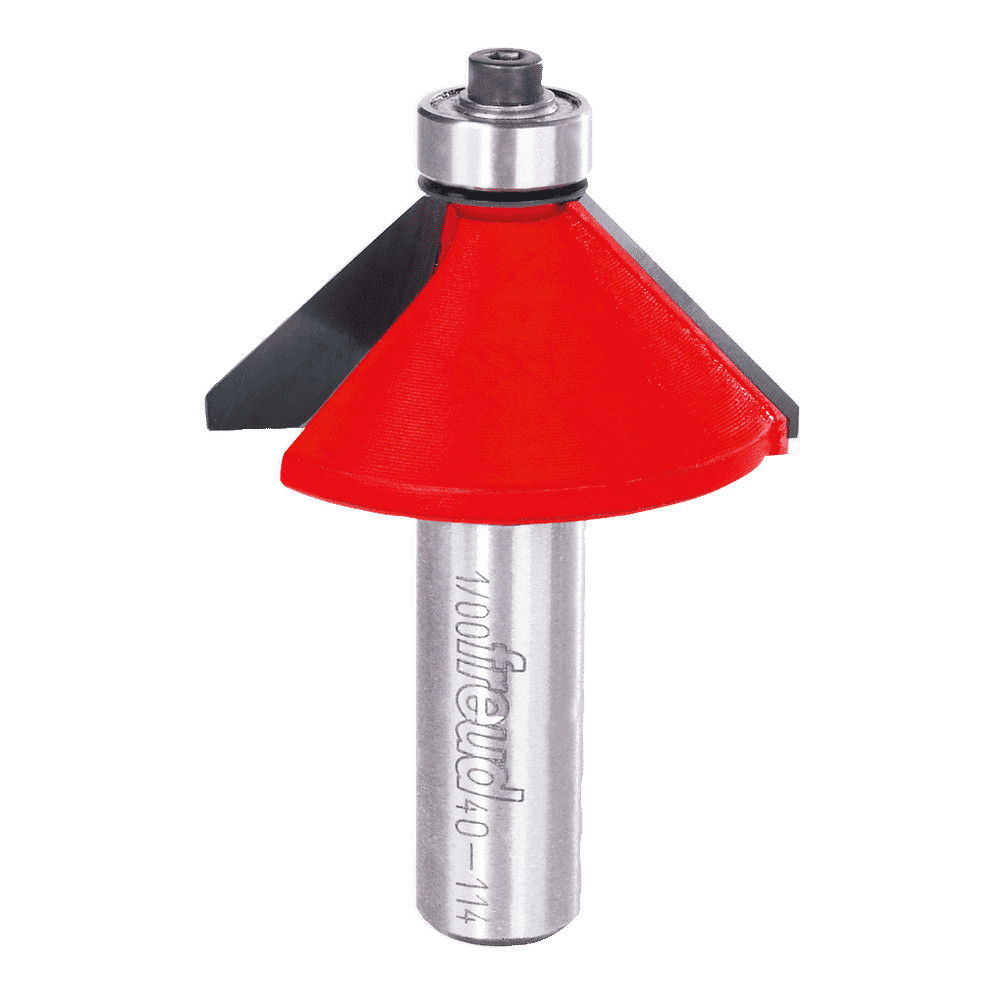

Freud 40-114 1‑5/8" Chamfer Bit

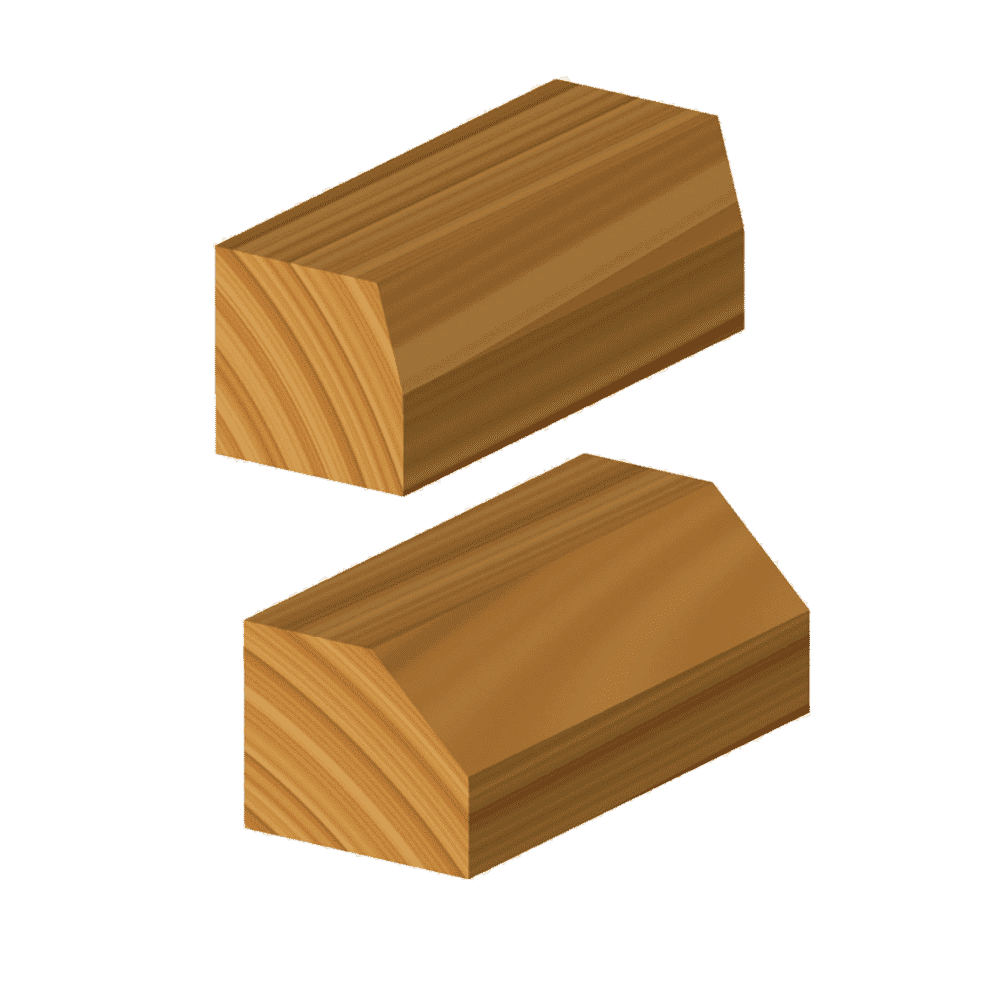

The chamfer profile seems simple, but it is a great solution for lots of multiple-sided projects, joinery, and easing edges. Creates a uniform chamfer on the edge of any work piece to add character, while retaining crisp geometric lines. #40-094 makes 16-sided pieces and #40-098 makes 12-sided pieces. Routs hardwood, softwood, plywood and composites; use in hand-held or table-mounted portable routers.

  • Chamfer size easily adjusts by changing the height of the bit or moving the fence
  • Cuts all composition materials, plywood, hardwood, and softwood
  • Use on hand-held and table-mounted routers
  • Freud Perma-SHIELD® Coating

    Ideal For: Eased or decorative edges, or joinery with 45° bevel



    TECHNICAL SPECIFICATIONS

    ANGLE (D) 30°
    BEARING DIA. (B) 1/2"
    NUMBER OF CUTTERS 2
    OVERALL DIA. (D) 1-11/32"
    OVERALL LENGTH (H) 2-3/4"
    SHANK DIA. (A) 1/2"
    CARBIDE HEIGHT (H) 3/4"
