Description

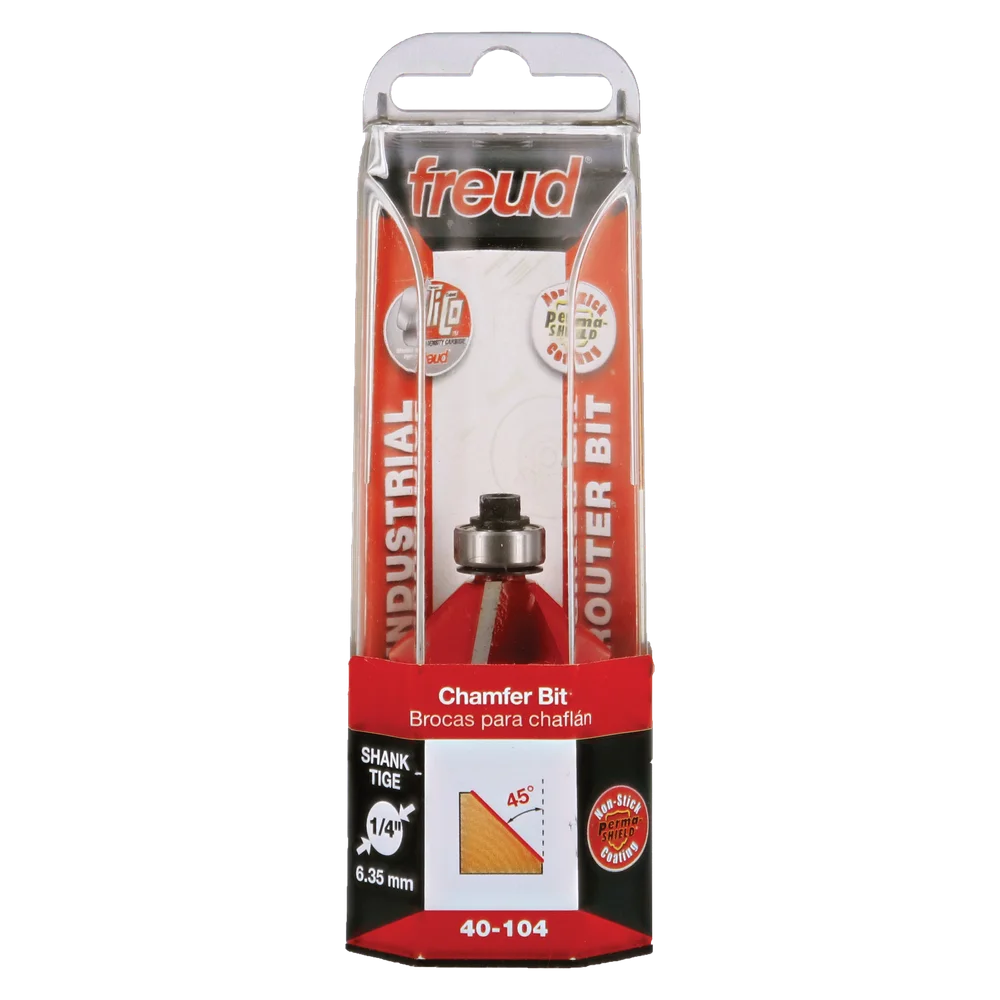

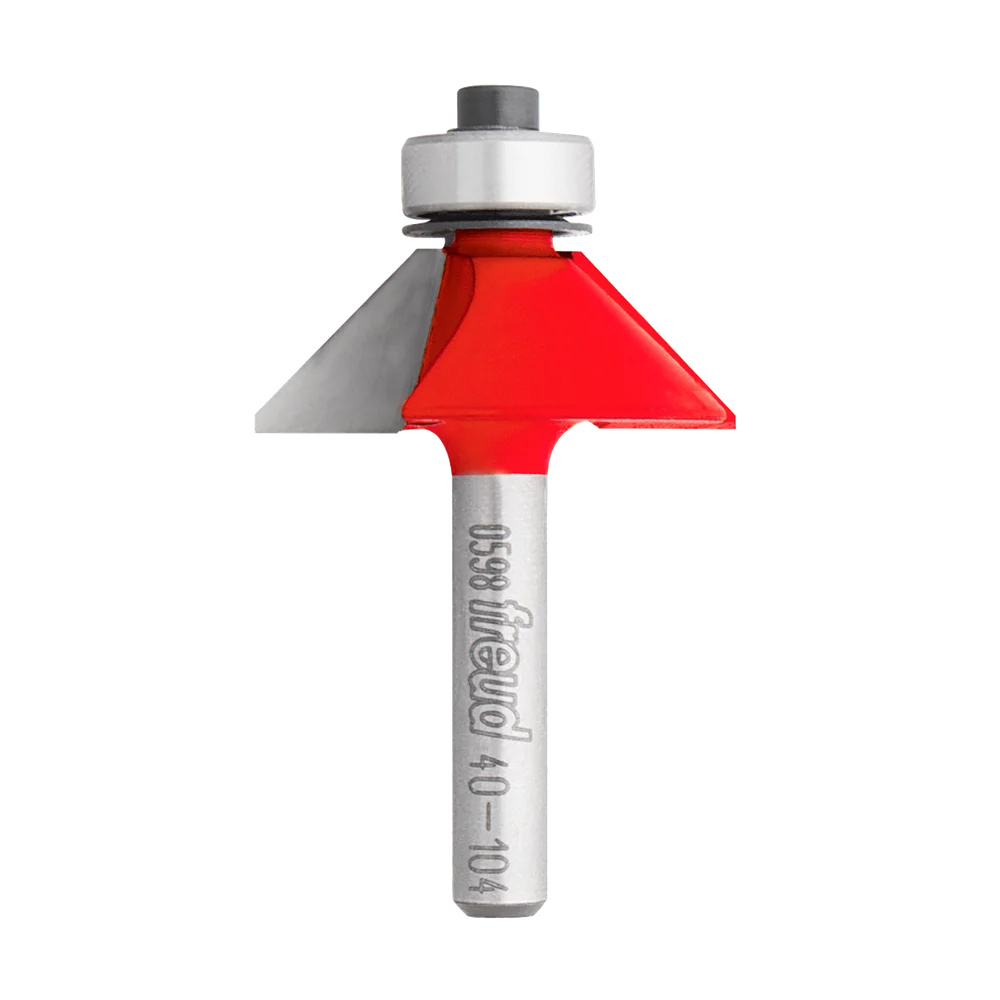

Freud 40-104 1‑11/32" Chamfer Bit (Overall Length: 2-3/16")

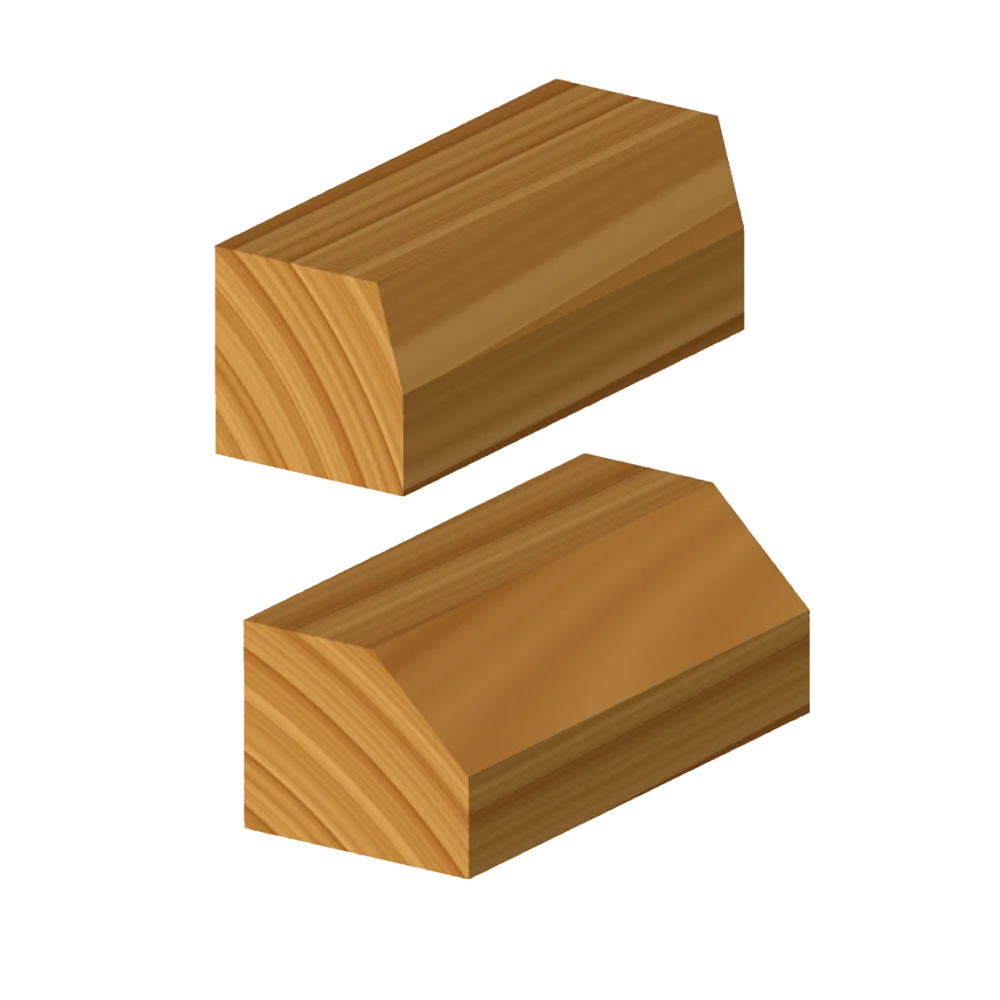

The chamfer profile seems simple, but it is a great solution for lots of multiple-sided projects, joinery, and easing edges. Creates a uniform chamfer on the edge of any work piece to add character, while retaining crisp geometric lines. #40-094 makes 16-sided pieces and #40-098 makes 12-sided pieces. Routs hardwood, softwood, plywood and composites; use in hand-held or table-mounted portable routers.
- Chamfer size easily adjusts by changing the height of the bit or moving the fence
- Cuts all composition materials, plywood, hardwood, and softwood
- Use on hand-held and table-mounted routers
- Freud Perma-SHIELD® Coating
Ideal For: Eased or decorative edges, joinery
TECHNICAL SPECIFICATIONS:
| NUMBER OF CUTTERS: | 2 |
| MAX RPM: | 16000 |

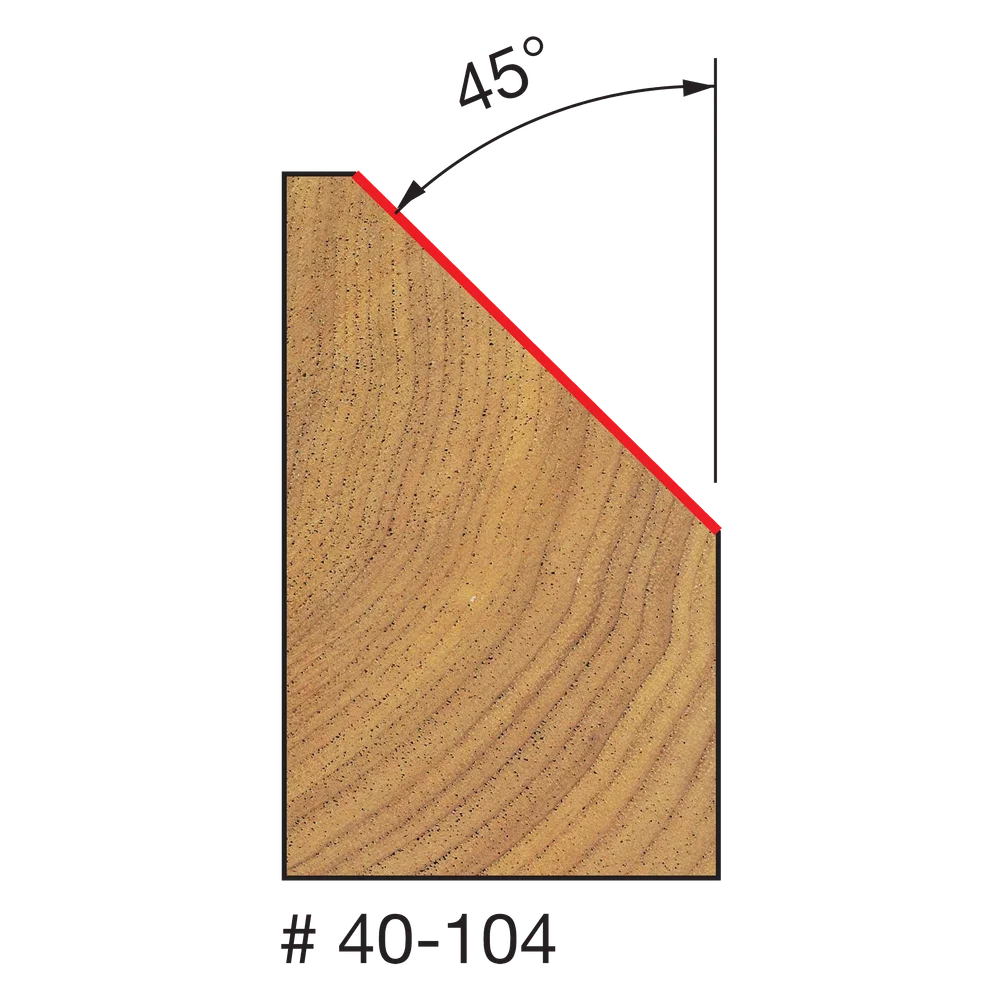

| ANGLE (D): | 45° |
| BEARING DIA. (B): | 1/2" |
| CARBIDE HEIGHT (H): | 1/2" |
| OVERALL DIA. (D): | 1-11/32" |
| OVERALL LENGTH (H): | 2-3/16" |
| SHANK DIA. (A): | 1/4" |
