Description

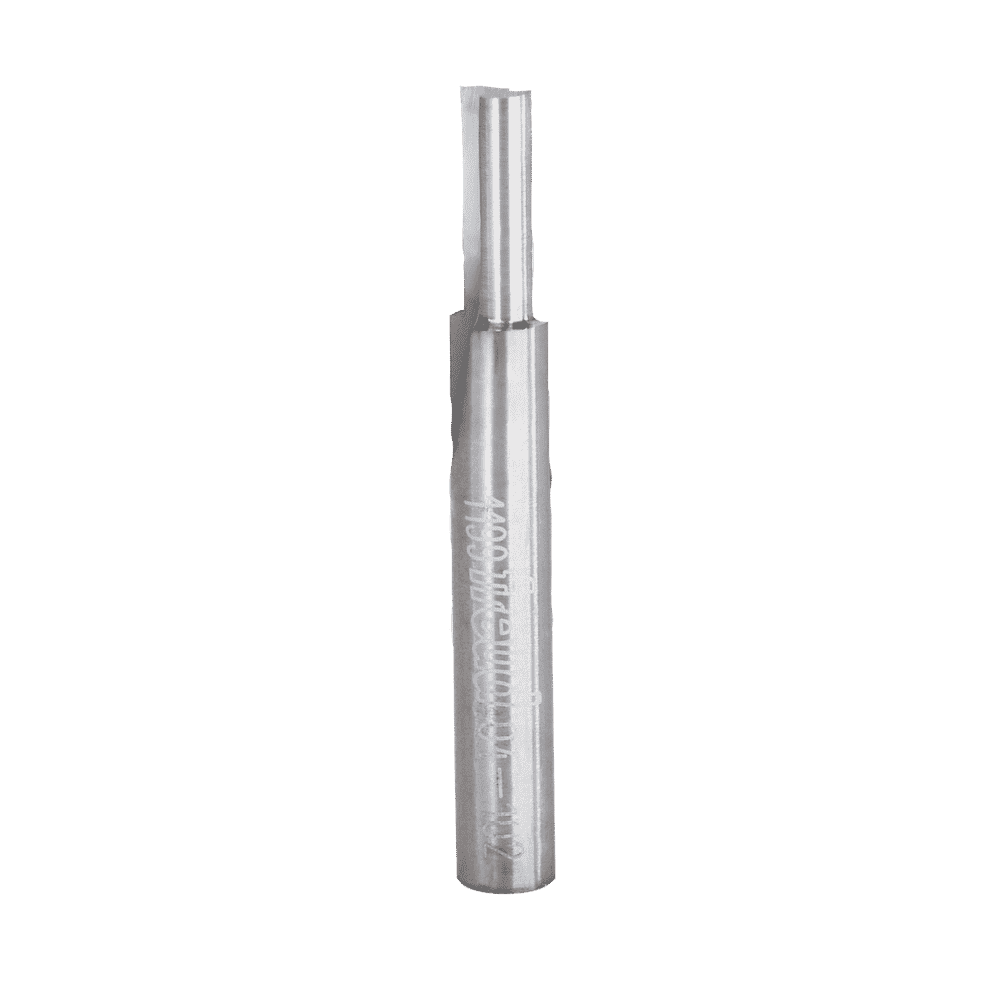

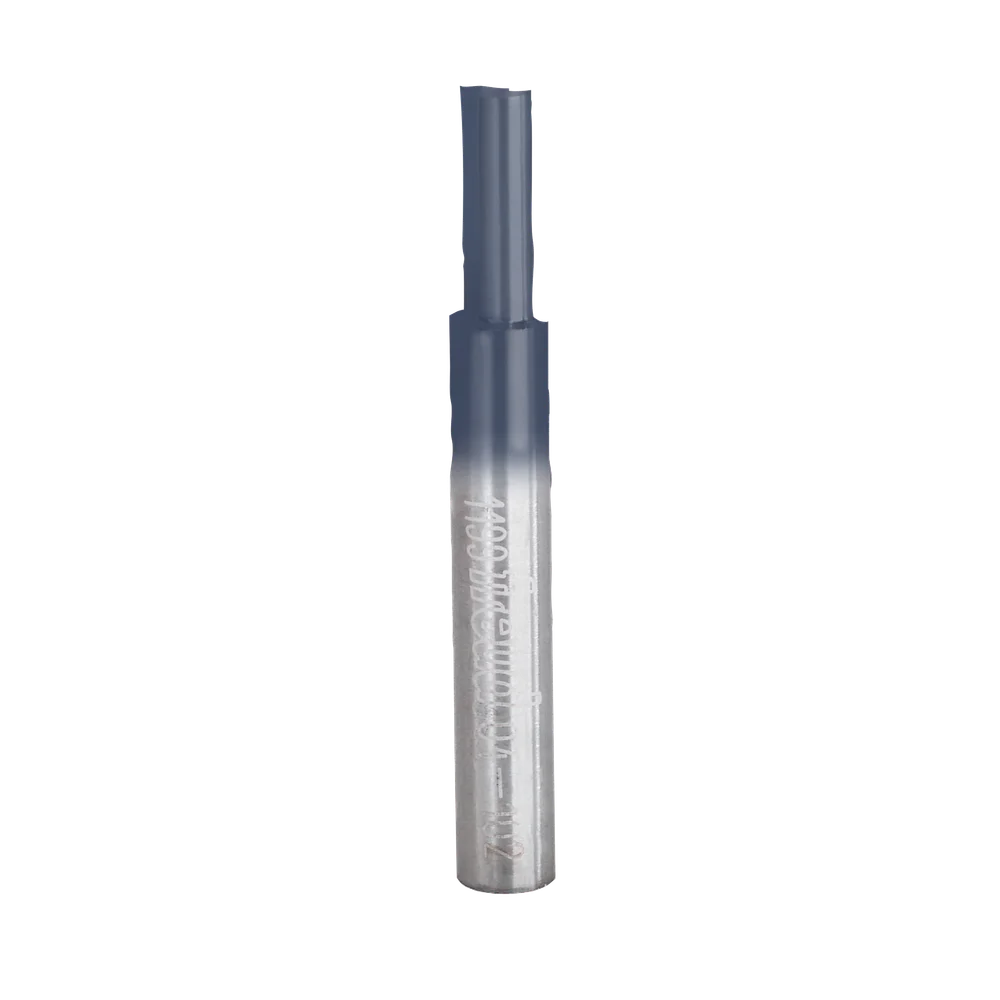

Freud 04-102 3/16" Double Flute Straight Bit
Freud's huge selection of carbide tipped and solid carbide double flute straight bits are ideal for grooving, edge-routing and other general purpose routing tasks. The precise hook and shear angles provide fast cutting and a smooth finish in hardwood, softwood, plywood and composite materials. Tips are relieved to allow for efficient plunge cuts. Designed for use in CNC, hand-held and table-mounted routers.
- Black I.C.E. coating for cool cutting edge and superior chip evacuation
- Black I.C.E. + Freud TiCo™ Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits
Ideal For: grooving and edge-routing applications

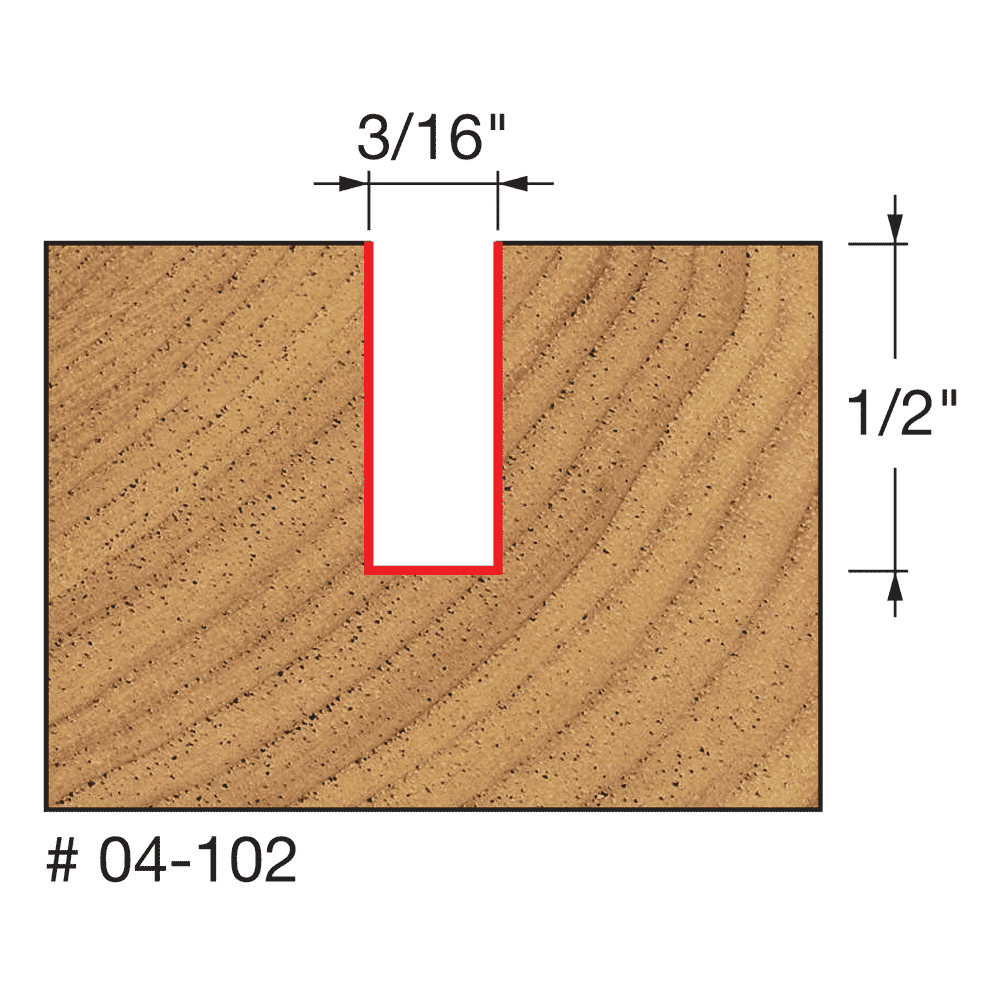

TECHNICAL SPECIFICATIONS
| NUMBER OF CUTTERS: | 2 |
| OVERALL DIA. (D): | 3/16" |
| OVERALL LENGTH (H): | 2" |
| SHANK DIA. (A): | 1/4" |
| CARBIDE HEIGHT (H): | 1/2" |
