Fluke T6-1000 Electrical Tester with FieldSense Technology, 1000V

Save 10%
Original price $279.99
Current price $251.99
SKU T6-1000

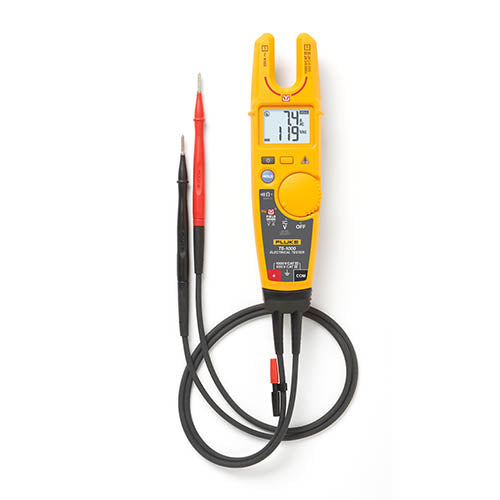

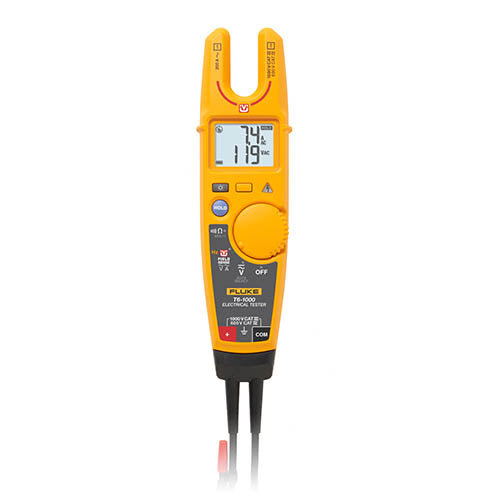

Fluke T6-1000 Electrical Tester with FieldSense Technology, 1000V

Products usually ship within 1 business day.

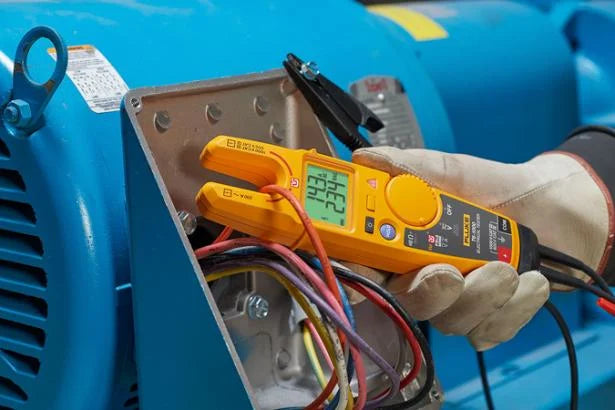

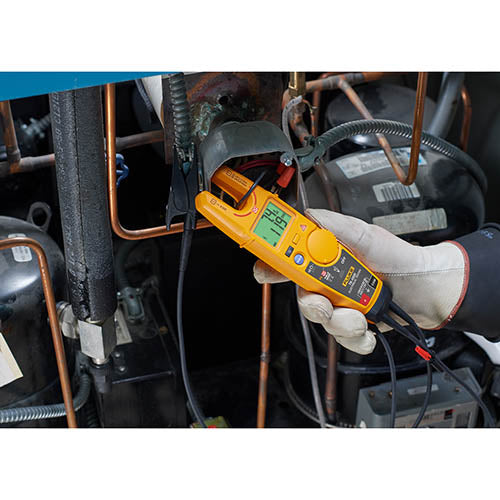

We know working in electrical boxes jammed with wires can be challenging when you’re trying to find a safe metallic contact point. Now, with Fluke’s T6-600 or T6-1000 with integrated FieldSense technology, you can quickly and easily take measurements by sliding the open fork over a conductor to see the voltage level without the need for test leads.

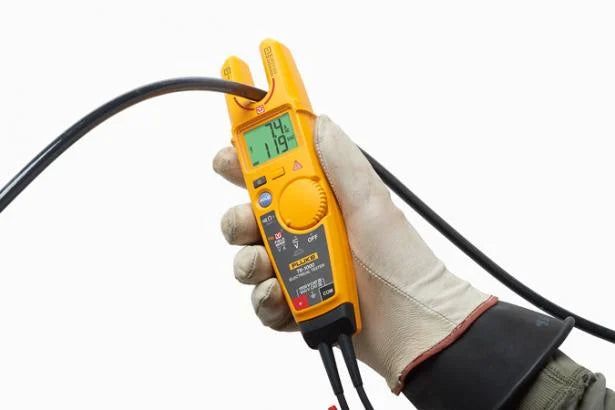

Measure voltage...without test leads

Measure voltage up to 1000 V ac through the open fork, without test lead contact to live voltage.* Without opening covers or removing wire nuts. On wires up to AWG 4/0 (120 mm2), carrying as much as 200 A. It will change your job. Safer. Faster. Easier.

Product Highlights

  • FieldSense technology for ac voltage, current and frequency measurement without making electrical contact to live voltage*
  • Simultaneous voltage and current display (T6-1000)— shows all power supply measurements at a glance for efficient troubleshooting
  • 1 to 1000 V ac or dc (T6-1000)
  • 0.1 to 200 A ac
  • True-rms voltage and current
  • Resistance 1 Ω to 100 kΩ (T6-1000)
  • Works with wires up to AWG 4/0 (120 mm2) with a 17.8 mm jaw opening
  • HOLD button temporarily freezes the reading for easy viewing
  • Easy to read display with backlight
  • Accepts optional Fluke TPAK Magnetic Meter Hanger for convenient operation
  • Standard two-year warranty; extendable to 4 years through product registration within 45 days of purchase+

* Voltage measurement requires capacitive path to ground, provided through user in most applications. Ground connection via test lead may be required in some situations.
+ Register product online within 45 days of purchase to extend warranty to four years. See http://a.fluke.com/registration for details. Two-year additional warranty offer may be discontinued without notice



    T6-1000 - Service Information

    T6-1000 - Quick Reference Guide

    T6-1000 - Data Sheet
