Fluke 376 FC Wireless True-RMS AC/DC Clamp Meter with iFlex

Save 10%
Original price $592.99
Current price $533.69
SKU FLUKE-376 FC
Currently 1 in stock.

Fluke 376 FC Wireless True-RMS AC/DC Clamp Meter with iFlex

Products usually ship within 1 business day.

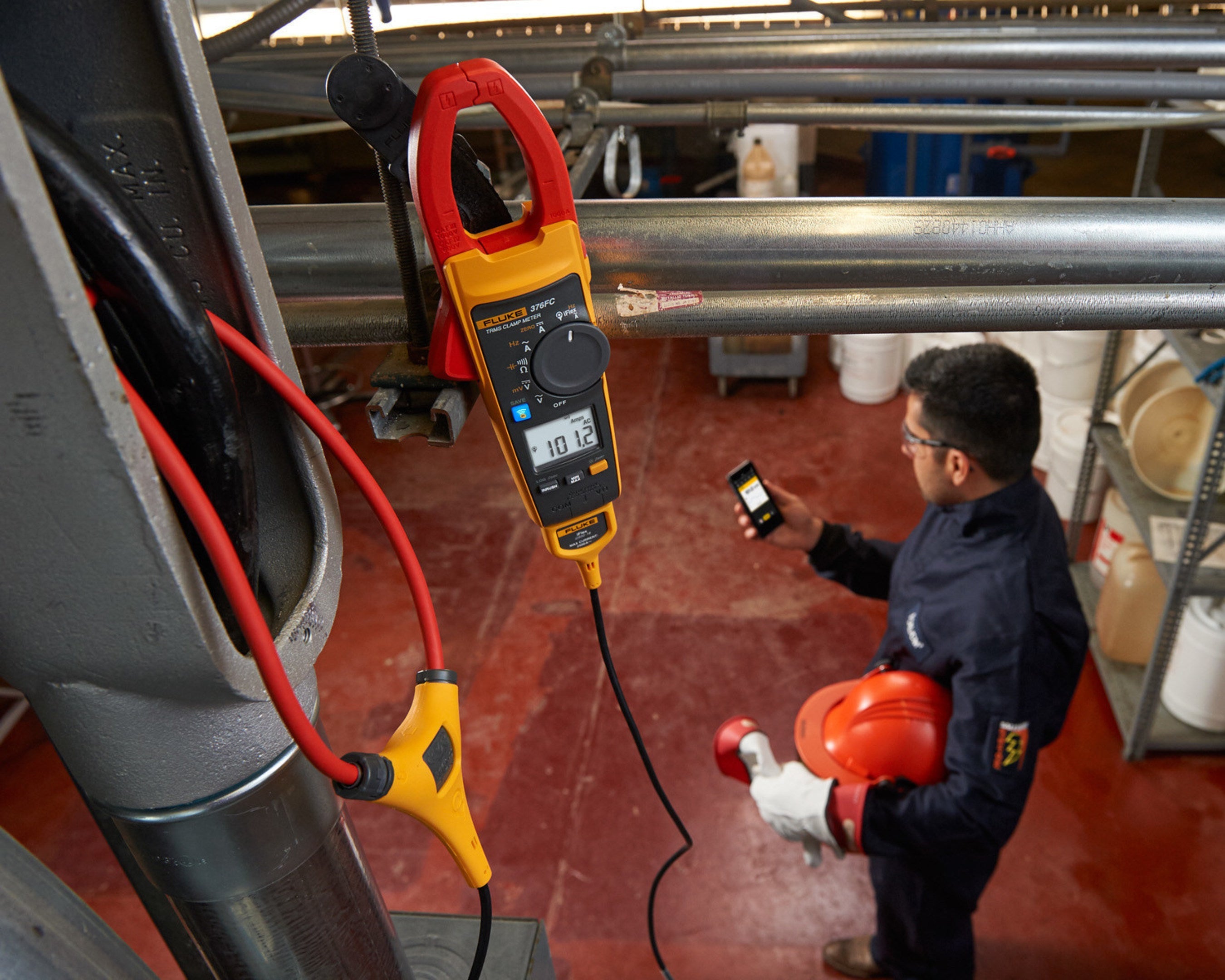

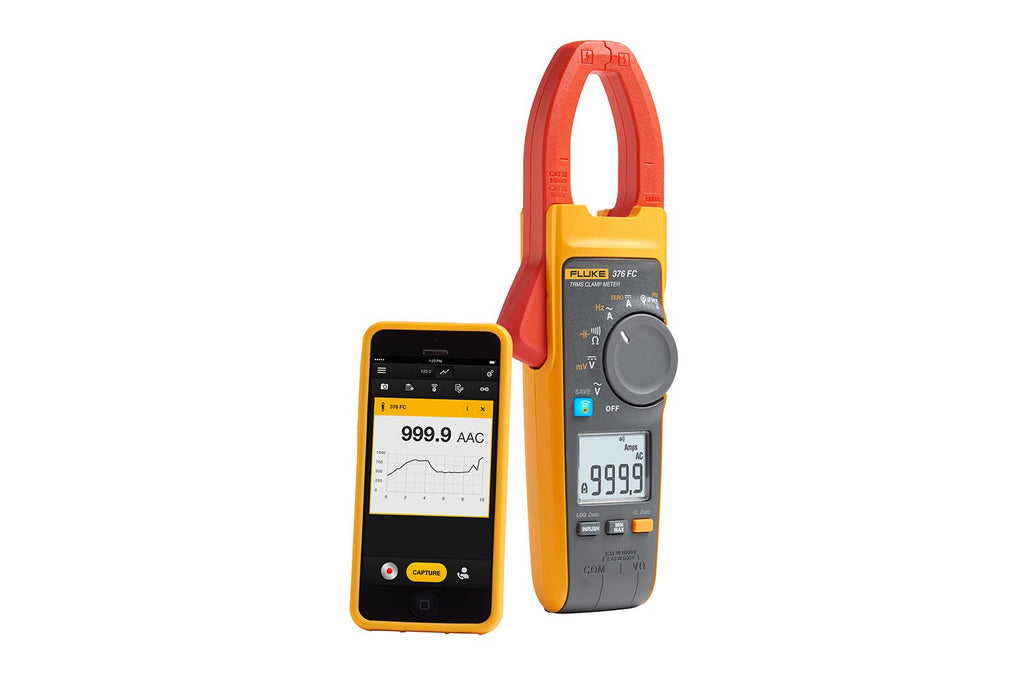

The Fluke 376 FC True-rms Clamp Meter with iFlex is the most advanced troubleshooting tool for industrial and commercial electricians. The 376 is part of the Fluke Connect family of wireless test tools that enable you to log, trend and monitor measurements while remaining safely away from the arc flash zone through Bluetooth connectivity.

Find the cause of difficult problems

The 376 FC clamp meter uses an integrated low-pass filter for accurate measurements of non-linear signals, such as adjustable speed drives, electronic ballasts and other non-linear loads. The clamp also uses proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it.

Measure:

  • Voltage to 1000 V AC or DC
  • Resistance to 60 kΩ with continuity detection
  • Min, max, average, and inrush recording to capture variations automatically
  • 500 mV DC measurement range to interface with other accessories
  • 1000 μF capacitance measurement

Work safely and conveniently

The 376 FC clamp carries a CAT III 1000 V, CAT IV 600 V safety rating, designed to offer you the highest possible protection in a test tool.

The included iFlex flexible current probe provides easier access to large conductors in tight spaces. The flexible probe:

  • Expands the measurement range to 2500 A AC
  • Allows frequency measurement to 500 Hz with body jaw and iFlex

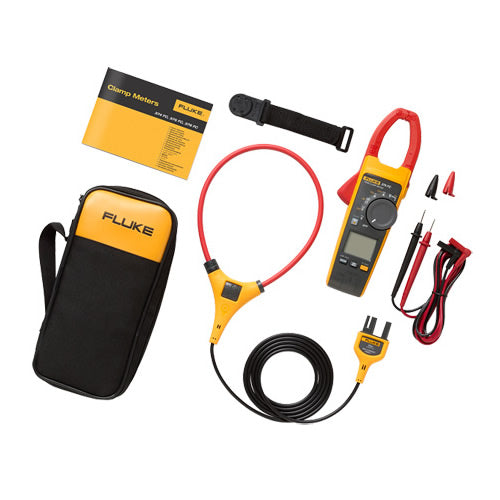

    Includes

    • Fluke 376 FC True-RMS Clamp Meter
    • 18-inch iFlex® Flexible Current Probe
    • TPAK magnetic hanging strap
    • TL75 Test Leads
    • Two AA batteries (Installed)
    • Soft carrying case



    General Specifications

    Voltage AC 1000
    Voltage DC 1000
    Current AC (clamp jaw / iFlex) 999.9 / 2500
    Current DC 999.9
    Resistance / Continuity 60 kΩ / Yes
    Three-phase calculations No
    Power Quality indicator No
    Data Logging Yes
    Inrush Yes
    Low pass filter (for VFD) Yes
    Safety

    CAT III 1000 V

    CAT IV 600 V





    Fluke 376 FC - User Manual

    Fluke 376 FC - Data Sheet
