Fieldpiece SCM4 Carbon Monoxide Detector

Save 15%
Original price $295.00
Current price $250.75
SKU SCM4

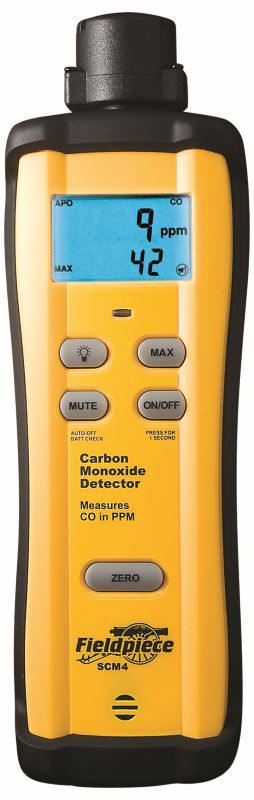

Fieldpiece SCM4 Carbon Monoxide Detector

Products usually ship within 1 business day.

  • Field-replaceable CO sensor
  • Calibrate to ambient quickly with the ZERO button
  • Audio/visual alarms with mute
  • Fast electro-chemical sensor
  • Magnetic hanger for hands free

The SCM4 Carbon Monoxide (CO) Detector has a very fast reaction time, and measures CO in parts per million (ppm). Its electrochemical sensor is fast enough for walk-around tests. Features and benefits include: Field-replaceable CO sensor; Advanced three-pin sensor measures 0 to 1000 ppm CO; Calibrate / Zero SCM4 to ambient quickly with the ZERO button; Audio and visual alarms w/mute; Bright-blue, backlit dual-display with MAX and real-time measurements displayed; Magnetic hanger for hands-free operation; Auto Power-Off (APO).

The "Walk-Around" Test:  The SCM4 responds to changes in CO levels in real time.

  • Zero the unit outdoors away from any source of CO (will not zero if CO levels are higher than 5ppm)
  • Enter the structure
  • Walk around and watch the display
  • Move toward the area of highest concentration to find the CO source

The SCM4 Carbon Monoxide Detector (CO Detector) offers several features and benefits to field technicians:

  • Field-replaceable CO sensor
    • Easy to install
    • Lasts approximately two years
    • Comes pre-calibrated
  • Fast electrochemical sensor helps you find CO sources like cracked heat exchangers or breached flue stacks
  • Calibrate to ambient quickly with ZERO button
  • Audio and visual alarms (with MUTE function)
  • Alarm rate increases as carbon monoxide concentration increases
  • MAX hold to help you zero in on the source
  • Bright-blue backlit dual-display to test in dark crawl spaces
  • Magnetic hanger for hands free testing
  • Auto Power Off (APO) to save battery life (easy to disable)
  • Battery check with % of battery life left displayed



    What's Included

    • Carbon Monoxide Detector - SCM4
    • 9V Battery (installed)
    • Operator’s Manual



    User Manual



    Specifications

    • Sensor Type:  Electrochemical (specific to CO)
    • Sensor Calibration:  Factory calibrated @ 17ppm CO and 200ppm CO
    • Range:  0 to 1000 ppm; 0 to 2000 ppm (less than 5 minute exposure time)
    • Initial Accuracy:  @ 73°F±9°F, <75% R.H.
      0-15ppm ±5% reading ±1 ppm after zeroing
      16-35ppm ±5% reading ±2 ppm after zeroing
      36-1000ppm ±5% reading ±5ppm after zeroing
    • Long Term Drift:  less than 5% per year (depending on use)
    • CO Air Sample Temperature Range:  32 to 105°F
    • Operating Environment:  32 to 122°F (0 to 50°C); 15 to 90% R.H., non-condensing
    • Storage Environment:  32 to 68°F (0 to 20°C) at <80% R.H. with battery removed from meter
    • Battery:  9V
    • Battery Life:  150 hours typical alkaline
    • Auto Power Off:  After 15 minutes
