Fieldpiece MR45 Digital Refrigerant Recovery Machine

Products usually ship within 1 business day.

Your Recovery Revolution.

• Starts and runs easily with lower voltage
• Minimizes liquid slugging and maximizes vapor recovery
• Easy access ports
• Water resistant to withstand direct rain
• R32 Ready

Welcome to the Recovery Revolution

The Fieldpiece MR45 recovery machine has onboard system monitoring that adjusts motor performance to handle liquid and run twice as fast on vapor.  MR45 also steps up low voltage at the power plug to deliver full power to the motor where high voltage drop is a problem.  With a powerful 1HP motor and super-sized condenser, this machine excels on longer and hotter jobs.  The easy-to-read display, lightweight (22lbs), straight hose connection ports, and single dial make this machine user-friendly while being tough enough for everyday use, even in the rain.

• Protects from voltage drop (runs as low as 95 VAC)

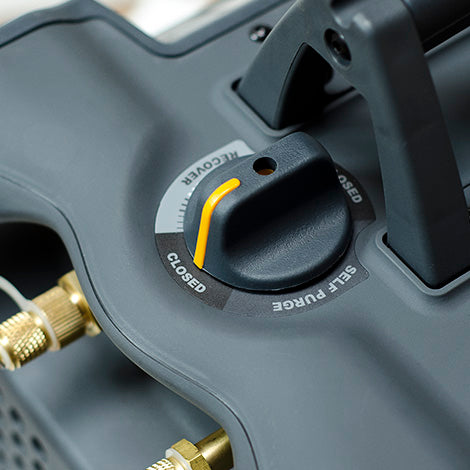

• Single dial self purge
• Twice the RPMs (3,000) and twice the horsepower (1HP) with DC Motor

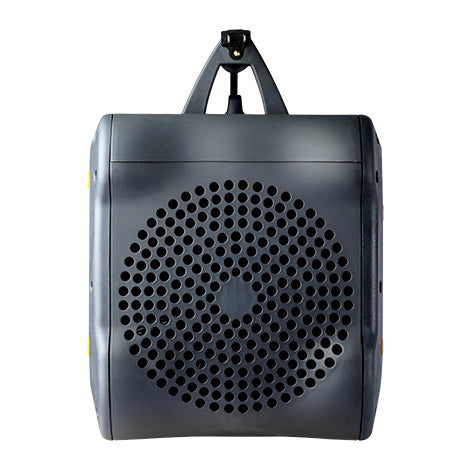

• Extra large condenser cools faster, especially on hot days
• Only 22 lbs
• Water resistance to withstand direct rain
• Easy access ports
• Long life and low friction with ceramic cylinders
• Dual cylinder compressor
• Easy hose connections and built in power cord storage
• Large backlit display with status messages
• A2L ready including R32

Includes:

• The best darn recovery machine on the market.  And an operator’s manual.

Specifications

• Display: 2 x 10000 count LCD with status messages
• Backlight: Blue color
• Measurement rate: 3.3 times per second, nominal
• Input Port Pressure Sensor Range: -30” Hg to 600 psig
• Output Port Pressure Sensor Range: -30” Hg to 600 psig
• High Pressure Cutoff: 558 psig, nominal
• Resolution and Units: 1 psig (1” Hg), 0.05 bar (2 cmHg),
  0.01 Mpa (2 cmHg), 5 Kpa (2 cmHg)
• Pressure Sensor Accuracy: ± 0.5 “ Hg (Vacuum) ± (0.6% of reading +2 psig)
• Final Recovery Vacuum: 14.9” Hg
• Compressor: Twin cylinder reciprocating (oil-less)
• DC Motor: 1 HP (variable smart speed)
• Power Source: 95 to 130 VAC @ 60 Hz 1 phase
• Max Current Draw: 12.0 AAC
• Valve: Single dual-route ball valve
• Input Port Filtration: 9 mm mesh screen, stainless
• Dimensions: 14.8” x 9.8” x 13.5” 376 mm x 250 mm x 344 mm
• Weight: 22 lbs
• Operating Environment: 32°F to 122°F (0°C to 50°C)
• Storage Environment: -4°F to 140°F (-20°C to 60°C)

Product Flyer

User Manual
