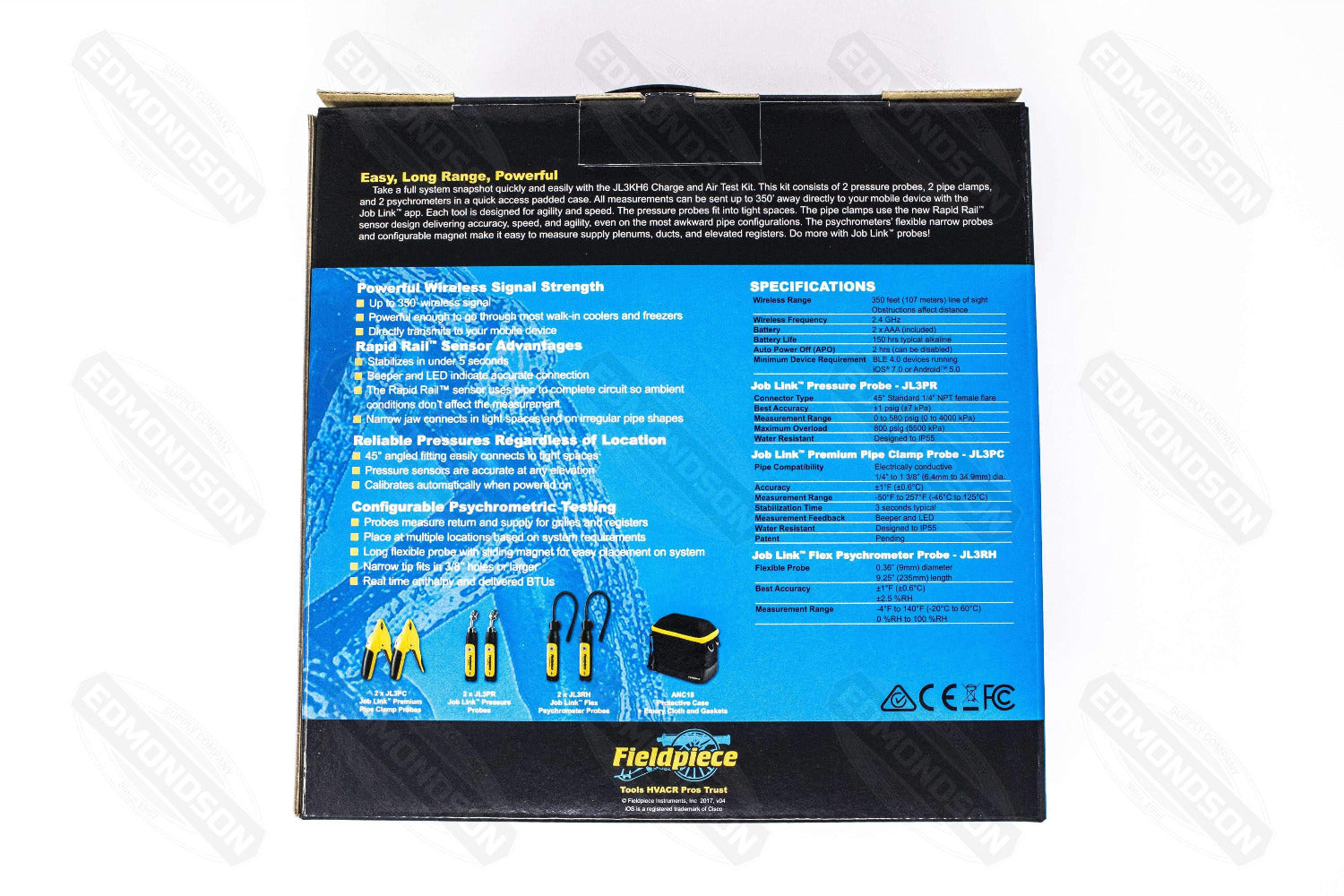

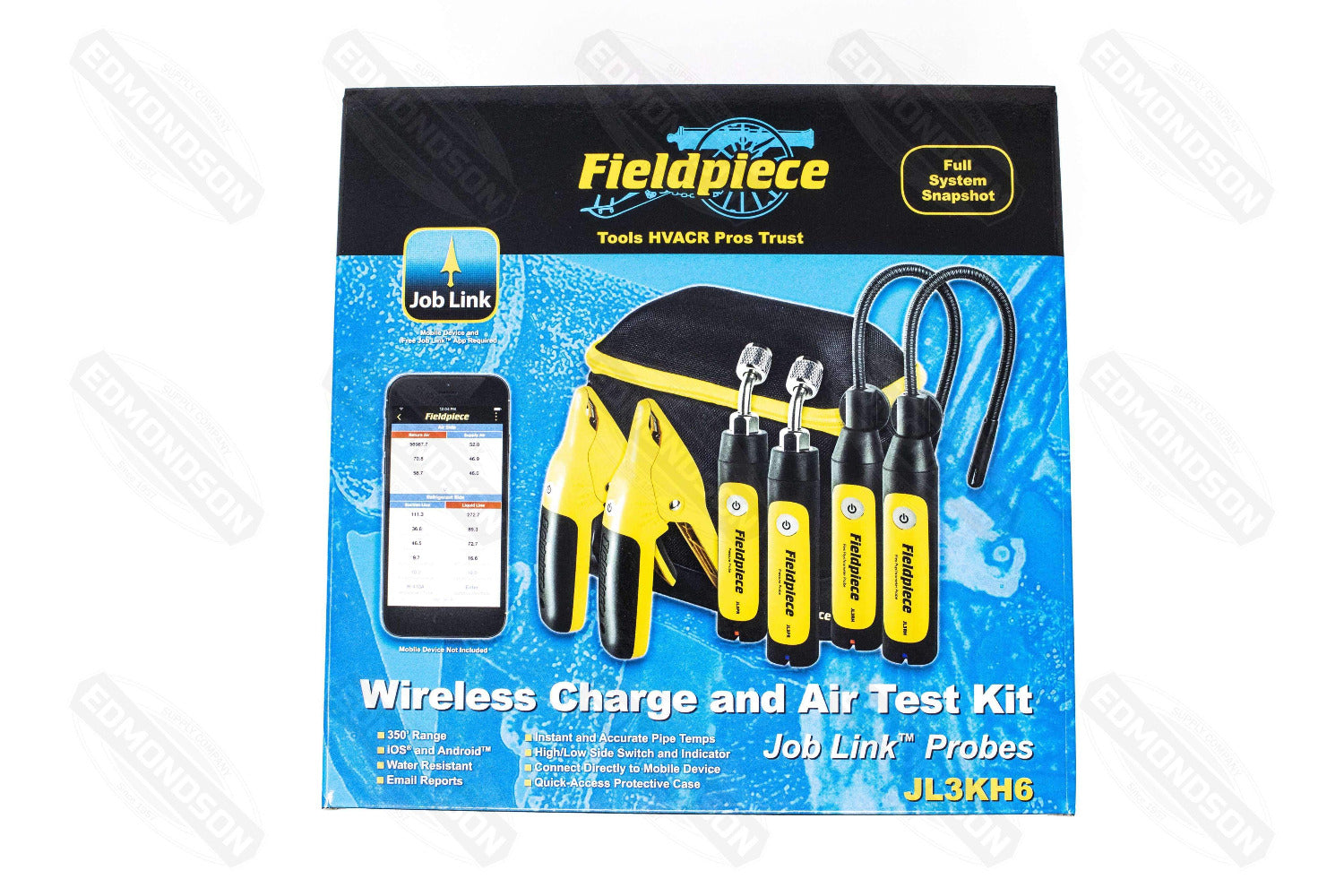

Fieldpiece JL3KH6 Job Link® System Charge and Air Kit

Save 15%
Original price $640.00
Current price $544.00
SKU JL3KH6

Fieldpiece JL3KH6 Job Link® System Charge and Air Kit

Products usually ship within 1 business day.

Powerful, Long Range and Easy

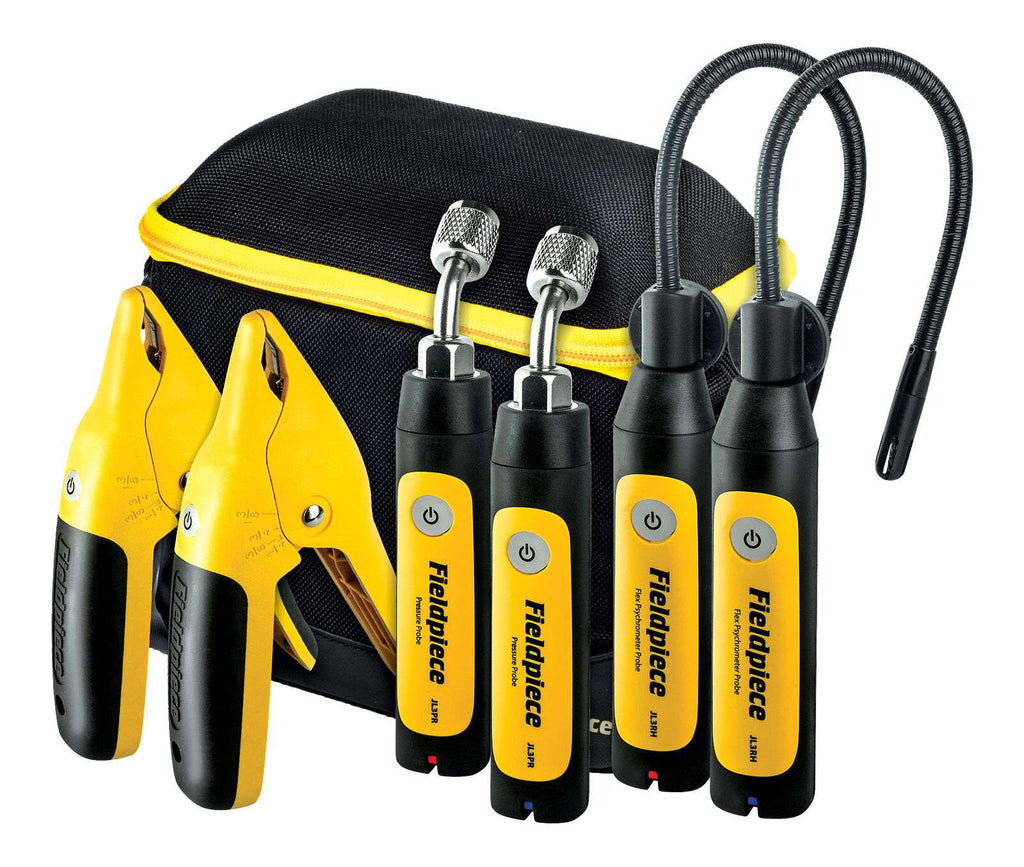

Take a full system snapshot quickly and easily with the JL3KH6 Charge and Air Test Kit. This kit consists of 2 pressure probes, 2 pipe clamps, and 2 psychrometers in a quick access padded case. All measurements can be sent up to 350' away directly to your mobile device with the Job Link app. Each tool is designed for agility and speed. The pressure probes fit into tight spaces. The pipe clamps use the new Rapid Rail sensor design delivering accuracy, speed, and agility, even on the most awkward pipe configurations. The psychrometers flexible narrow probes and configurable magnet make it easy to measure supply plenums, ducts, and elevated registers. Do more with JobLink smart probes!

Wireless Range of 350' Plus

  • Directly connects to mobile device with Job Link System App
  • Fast accurate temps with new Rapid Rail technology
  • Pressures auto calibrate at any elevation
  • Configurable psychrometers with flexible probe and sliding magnet



SPECIFICATIONS

  • Wireless Range:  350 feet or more
  • Wireless Frequency:  2.4 GHz
  • Battery:  2 x AAA (included)
  • Battery Life:  150 hrs typical alkaline
  • Auto Power Off (APO):  2 hrs (can be disabled)
  • Minimum Device Requirement:  BLE 4.0 devices running iOS® 7.0 or AndroidTM 5.0

Job Link Pressure Probe - JL3PR

  • Connector Type:  45° Standard 1/4” NPT female flare

  • Best Accuracy:  ±1 psig (±7 kPa)

  • Measurement Range:  0 to 580 psig (0 to 4000 kPa)

  • Maximum Overload:  800 psig (5500 kPa)

  • Water Resistant:  Designed to IP55

Job Link Premium Pipe Clamp Probe - JL3PC

  • Pipe Compatibility:  Electrically conductive 1/4” to 1 3/8” (6.4mm to 34.9mm) dia.

  • Accuracy:  ±1°F (±0.6°C)

  • Measurement Range:  -50°F to 257°F (-46°C to 125°C)

  • Stabilization Time:  3 seconds typical

  • Measurement Feedback:  Beeper and LED

  • Water Resistant:  Designed to IP55

Job Link Flex Psychrometer Probe - JL3RH

  • Flexible Probe:  0.36” (9mm) diameter, 9.25” (235mm) length

  • Best Accuracy:  ±1°F (±0.6°C) ±2.5 %RH

  • Measurement Range:  -4°F to 140°F (-20°C to 60°C) 0 %RH to 100 %RH



What's Included

  • 2 Job Link Pipe Temp Probes
  • 2 Job Link Pressure Probes
  • 2 Job Link Psychrometer Probes
  • Padded Carrying Case
  • 2 x AAA Batteries Per Probe (12 Total)



JL3RH User Manual

JL3PR User Manual

JL3PC User Manual

Flyer
