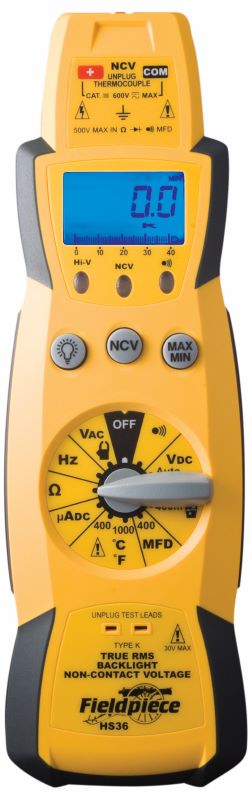

Fieldpiece HS36 Expandable True RMS Stick Meter with Backlight

Save 15%
Original price $362.00
Current price $307.70
Currently 1 in stock.

Fieldpiece HS36 Expandable True RMS Stick Meter with Backlight

Products usually ship within 1 business day.

Every feature. Fits in your pocket.

  • Works with all accessory heads
  • Non-contact voltage
  • Microamps DC for flame diodes
  • 400 AAC with included amp
  • Temperature up to 1000 degrees F
  • Lead storage

Expandable True RMS Stick Multimeter with Backlight – Designed for HVACR Field Service – HS36

Our top of the line Stick Meter, the HS36 includes the ranges you use everyday for HVACR field service plus includes a bright blue backlight and True RMS. Like the rest of the HS30 series, the HS36 comes equipped with a magnetic hanger, along with detachable silicone test leads and alligator clip probe tips for remote and easy one-handed testing, as well as the full set of built-in safety features.  This auto-ranging stick meter also includes a bar graph on the LCD for an analog feel. Technicians who prefer our expandable stick meters tell us this is the best digital multimeter for HVACR field service.

The HS meter series is unlike any other found in HVACR. We incorporate a number of safety features, both those you can and can’t see, into our meters.  In addition, the HS series accepts modular test instrument accessory heads, so you have more testing capabilities without buying a lot of expensive instruments.  And it's packed with the features HVACR technicians need:


  • Non-contact Voltage
  • High Voltage and Continuity Indicators
  • Microamps
  • Capacitance
  • Temperature
  • Silicone Leads with Detachable Probe Tips
  • Rugged ABS case with rubberized bumpers
  • Built-in magnetic hanger allows you to test with one hand or no-hands
  • Built-in lead storage
  • Ergonomic shape fits naturally in your hand
  • Auto power-off (APO) to conserve battery life

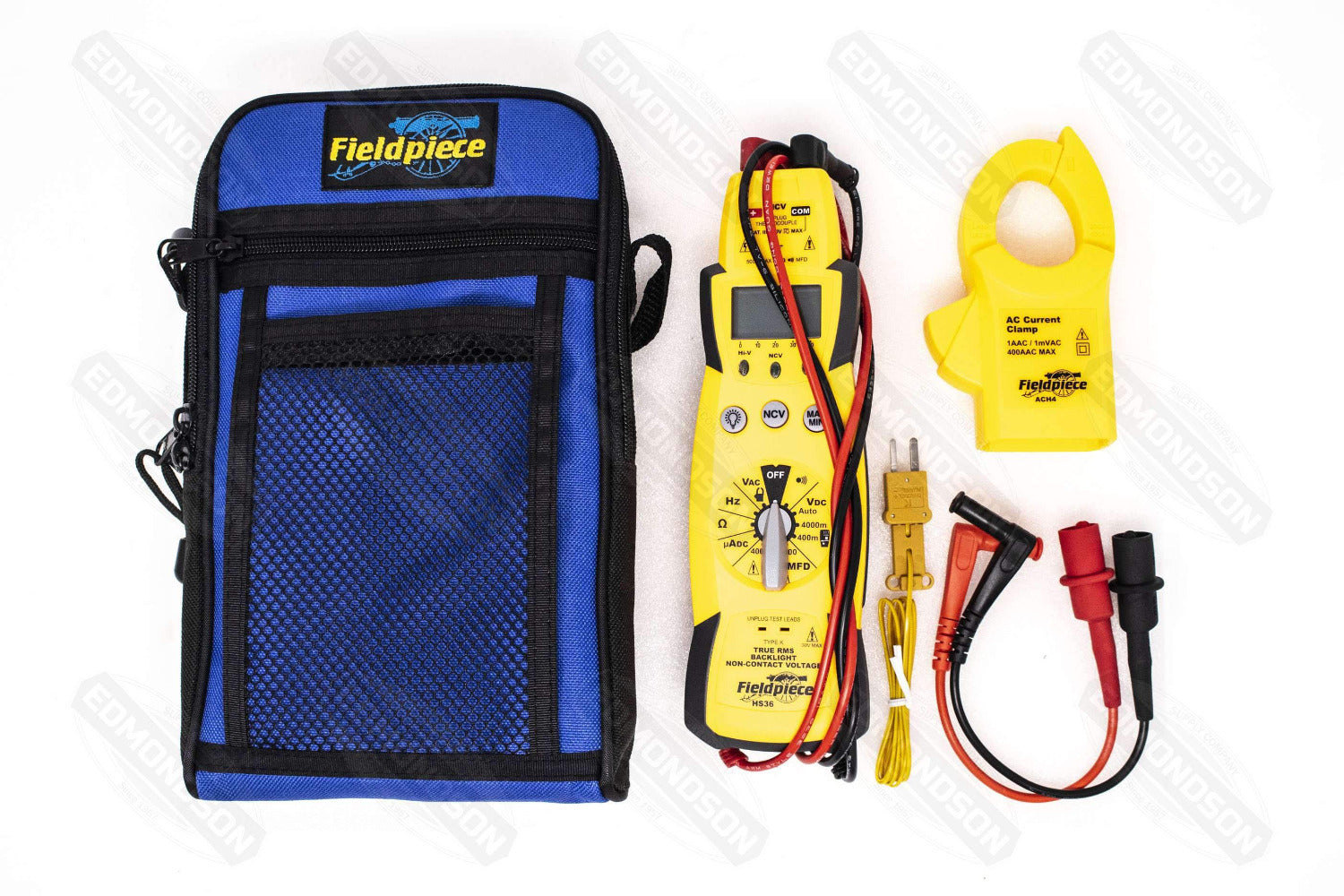

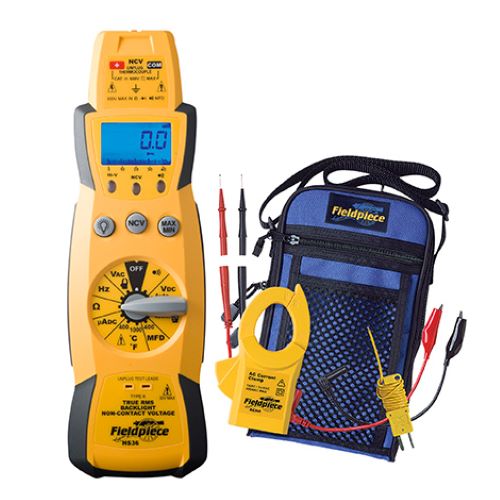

What's Included

  • Expandable True RMS Stick Multimeter with Backlight - HS36
  • 400A Amp Clamp Accessory - ACH4
  • Deluxe Silicone Test Leads - ADLS2
  • Short Alligator Lead Extensions - ASA2
  • Deluxe Meter Case - ANC1
  • 9-Volt Battery (installed)
  • Operator’s Manual


User Manual



  • Display:  3¾ digit liquid crystal display (LCD) with a maximum reading of 3999
  • Analog bar graph:  41 segments with measurements 20 times per second
  • Range (RNG):  Manual ranging mode (HS35)
  • Overrange:  “OL” mark indication
  • Auto power off:  30 minutes
  • Operating environment:  32 to 122°F (0 to 50°C) at <70% R.H.
  • Storage temperature:  -4 to 140°F (-20 to 60°C), 0 to 80% R.H. with battery removed
  • Accuracy:  Specifications good in ambient conditions of 73°F ±9°F (23°C ±5°C), <75% relative humidity
  • Temperature coefficient:  0.1×(specified accuracy) per °F/°C. (32 to 64°F (0 to 18°C), 82 to 122°F(28 to 50°C))
  • Power:  Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22
  • Battery life:  300 hours typical with alkaline
  • Accessories:  One pair test leads, one pair alligator clips, k-type thermocouple, 9V battery (installed), and operating instructions
  • Safety:  UL,CE,Cat III600V,UL61010-1,IEC/EN61010-1
  • Temperature:
    Range: -30 to 1000°F (-34 to 538°C)
    Resolution: 0.1°F/°C
    Accuracy: ±1°F, 32 to 120°F (0 to 49°C),
    ±1% + 1.5°F, -4 to 750°F (-20 to 399°C),
    ±2% + 4°F, -30 to -4°F (-34 to -20°C),
    ±2% + 4°F, 750 to 1000°F (399 to 538°C)
  • Sensor type:  K-type thermocouple
  • Overload protection:  60 VDC or 30 VAC rms
