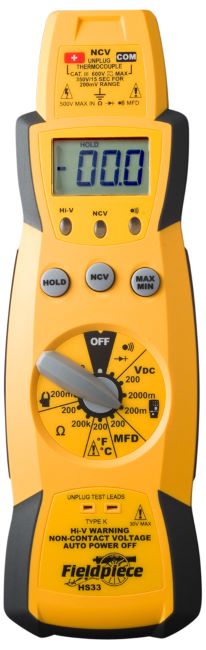

Fieldpiece HS33 Manual Ranging Expandable Stick Meter

Save 15%
Original price $191.00
Current price $162.35
SKU HS33

Fieldpiece HS33 Manual Ranging Expandable Stick Meter

Products usually ship within 1 business day.



Expandable. Dependable. Practically indispensable.

The Perfect Fit for HVACR.

  • Works with any accessory head
  • Non-contact voltage
  • Microamps DC for flame diodes
  • 400 AAC with included clamp
  • Temperature up to 1000°F
  • Convenient lead storage
  • Safe one-handed testing

An expandable multimeter designed for you.

You’re really going to like the HS33 manual ranging multimeter. That’s because we designed it to include all of the tests you use every day. We’re talking voltage, microamps, capacitance and temperature. Since it’s part of the HS30 series, the HS33 accepts all of our accessory heads. Plus, because it’s from Fieldpiece, you know it’s tough enough to handle anything you’ll face out there.



Go ahead. Use it anywhere.

We added a magnetic hanger to make it easy to attach to metal surfaces, and the detachable silicone test leads and alligator clip make remote and one-handed testing a snap. The HS33 also has a host of built-in safety features as well as excellent temperature compensation and capacitance ranges.



More than enough features.

We put a K-type thermocouple port on the front to allow tests for a number of HVACR temperatures right from your multimeter. Essentially, we’ve thought of everything and packed it with the features you need to get the job done with ease. Here are a few:

  • Non-contact voltage
  • High voltage and continuity indicators
  • Capacitance
  • Min/Max
  • Temperature
  • Rugged ABS case with rubberized bumpers
  • Built-in magnetic hanger allows you to test with one hand or no hands
  • Built-in lead storage
  • Ergonomic shape fits naturally in your hand
  • Auto power-off (APO) to conserve battery life

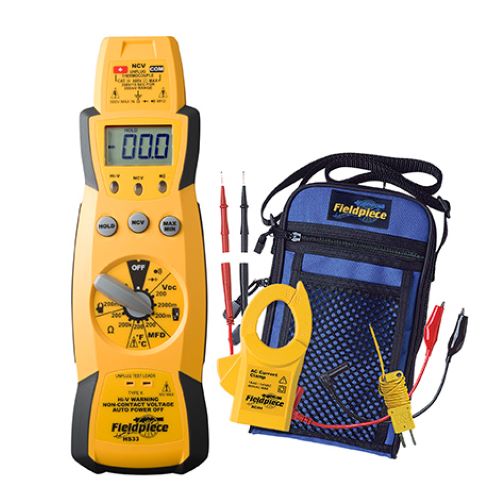

What’s Included

  • HS33 – Expandable Stick Multimeter
  • (1) 400A Amp Clamp Accessory – ACH4
  • (2) Deluxe Silicone Test Leads – ADLS2
  • (2) Short Alligator Lead Extensions – ASA2
  • (1) ATB1 Wrap Tab K-type Thermocouple
  • (1) Deluxe Meter Case – ANC1
  • (1) 9-Volt Battery (installed)



Specifications

  • Display: 3½ digit liquid crystal display (LCD) with a maximum reading of 1999
  • Overrange: “OL” mark indication
  • Auto power off: 60 minutes
  • Operating environment: 32 to 122°F (0 to 50°C) at <70% R.H.
  • Storage temperature: -4 to 140°F (-20 to 60°C), 0 to 80% R.H. with battery removed
  • Accuracy: Specifications good in ambient conditions of 73°F ±9°F (23°C ±5°C), <75% relative humidity
  • Temperature Coefficient: 0.1×(specified accuracy) per °F/°C. (32 to 64°F (0 to 18°C), 82 to 122°F (28 to 50°C))
  • Power: Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22
  • Battery life: 300 hours typical with alkaline
  • Safety: UL, CE, Cat III 600V, UL3111, IEC/EN61010-1, C-Tick certified
