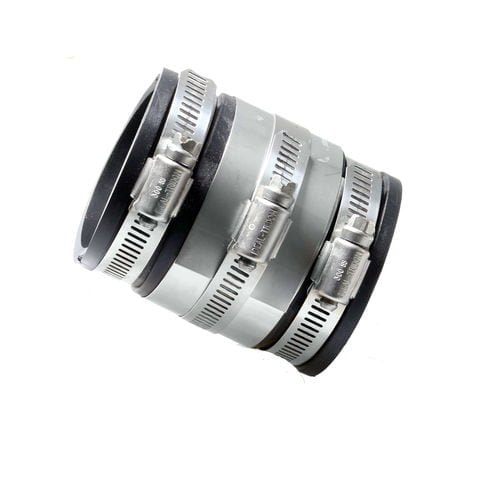

Fernco 1056-22RC 2" x 2" Strong Back PVC Shielded Coupling (Connects Cast Iron and PVC)

Strong Back RC Couplings combine Fernco flexible sealing performance with stainless steel reinforcement for a stronger underground transition. Strong Back RC Couplings are designed for pipe transitions where the outside diameters, pipe materials or jobsite conditions require added alignment support. The molded-in bushing works with the stainless steel shear ring to help keep the connection stable while the flexible elastomeric sleeve maintains a dependable seal.

FEATURES:

• Strong back RC couplings offer a 0.012 in stainless steel shield and a molded in bushing
• 300 series stainless steel clamp
• 60 in lb installation torque
• Flexible PVC 60 duro shore a
• 4.3 psi tested pressure

DESCRIPTION:

Designed to resist heavy earth loads and shear forces, Fernco RC pipe couplings stand as the optimal choice for below-ground applications.

Fernco® Pipe Coupling, Strong Back Flexible, Series: 1056RC, Specifically designed to connect 2" to 2" Cast Iron, Plastic (Sch 40, SDR-35, ABS), and Steel pipes. This coupling has an internal diameter (ID) of 2.40” and fits pipe ODs between 2.15"- 2.50".

SPECIFICATIONS:

Fitting/Connector Type:	Coupling
End Style:	Cast Iron/Plastic
Material:	PVC
Nominal Size:	2 in
Type:	Strong Back Flexible
