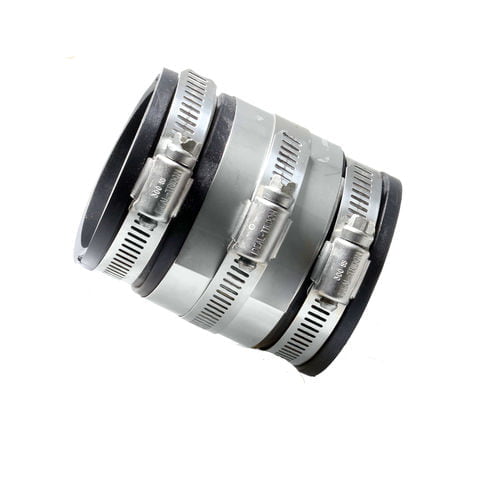

Fernco 1056-150RC 1.5" x 1.5" Strong Back PVC Shielded Coupling (Connects Cast Iron and PVC)

Strong Back RC Couplings combine Fernco flexible sealing performance with stainless steel reinforcement for a stronger underground transition. Strong Back RC Couplings are designed for pipe transitions where the outside diameters, pipe materials or jobsite conditions require added alignment support. The molded-in bushing works with the stainless steel shear ring to help keep the connection stable while the flexible elastomeric sleeve maintains a dependable seal.

FEATURES:

• Strong back RC couplings offer a 0.012 in stainless steel shield and a molded in bushing
• 300 series stainless steel clamp
• 60 in lb installation torque
• Flexible PVC 60 duro shore a
• 4.3 psi tested pressure

DESCRIPTION:

Designed to resist heavy earth loads and shear forces, Fernco RC pipe couplings stand as the optimal choice for below-ground applications.

Fernco® Pipe Coupling, Strong Back Flexible, Series: 1056RC, Specifically designed to connect 1.5" to 1.5" Cast Iron, Plastic (Sch 40, SDR-35, ABS), and Steel pipes. This coupling accommodates pipe outer diameters (ODs) ranging from 1.65"-2" on one end and 1.65"-2" on the other end.

SPECIFICATIONS:

Fitting/Connector Type:	Coupling
End Style:	Cast Iron/Plastic
Material:	PVC
Nominal Size:	1.5 in
Type:	Strong Back Flexible
