Description

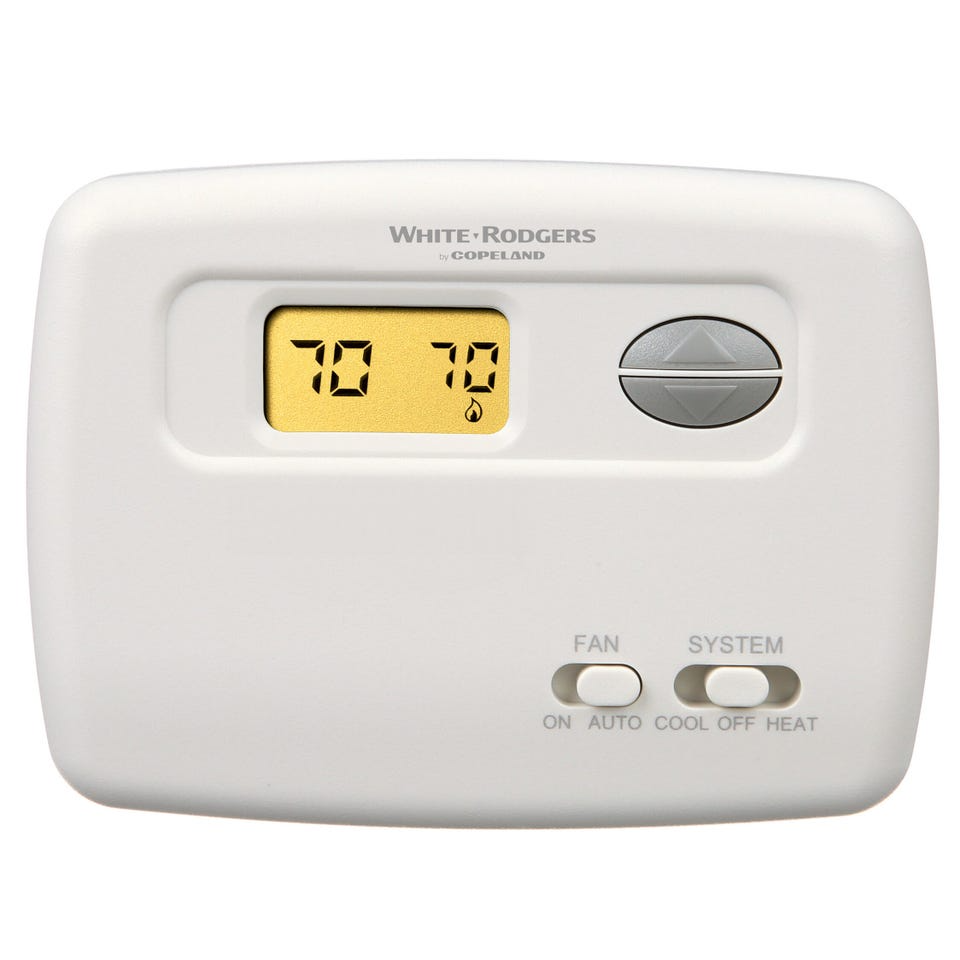

Copeland White-Rodgers 1F78-144 70 Series Non-Programmable Thermostat, 1 Heat - 1 Cool
The perfect upgrade from mechanical thermostat available as Heat Pump or Single Stage offering economy and value with proven reliability.
Features
- Single Stage
- Non-Programmable Thermostat
- Battery Powered
- Fossil Fuel or Electric Heat Compatible
- Millivolt Compatible
- Selectable Fahrenheit or Celsius Temperature Display
- Low-Battery Indicator
- Horizontal Model
- Electronic Accuracy
- Temperature Accuracy for Customers on a Budget
Specifications
| Auto Changeover (Heat/Cool) | No |
|---|---|
| Batteries Included | Yes |
| Battery Life | 2 yr (Max.) |
| Battery Type | (2) AAA |
| California Prop 65 Cancer or Reproductive Harm | Yes |
| Color | White |
| Compatibility | 3-Wire Zone Valve Control: No |
| Economizer Control: No | |
| Millivolt Compatible: Yes | |
| Display | Digital LCD |
| Display Backlight | Yes (upon key press) |
| Display Size [in²] | 1.2 |
| Electrical Rating | 20 to 30 Vac, 50/60Hz, NEC Class II |
| Electrical Rating, Current [A] | 1.5A (Per Terminal), 2.5A Maximum (All Terminals Combined) |
| Fan Options | Auto |
| On | |
| Housing Material | Plastic |
| Keypad Lockout | No |
| Model Number | 1F78-144 |
| Mounting | Horizontal |
| Overall Product Dimensions [in] | 5.15" L x 3.85" H x 1.15" D |
| Performance Features | Backlight on Keypress |
| Power Source | Battery |
| Program Options | Non-Programmable |
| Program Periods Per Day | None |
| Sensor Options | None |
| Set-Point Temperature Limits | No |
| Setpoint Temperature Range [°F] | 45 to 99 |
| Stages | Single Stage 1H/1C, Heat Pump 1H/1C |
| Style | Horizontal |
| System Switch | Heat-Off-Cool |
| System Type | Heat Pump (No Aux) |
| Single-Stage | |
| Terminals | RC,RH,W,Y,O,B,G |
| Typical Applications | Conventional Air Conditioning |
| Gas/Oil/Electric Heat | |
| Heat Pump | |
| Millivolt Heat Systems | |
| Recreational Vehicle | |
| Voltage | 24 Vac |
| What's In The Box | Thermostat, instructions, mounting hardware, (2) AAA batteries, wire labels |
