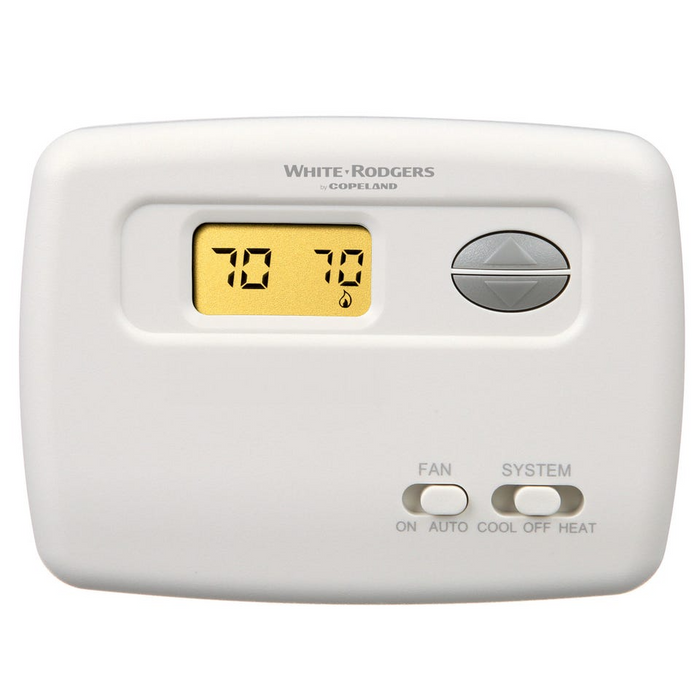

Emerson White-Rodgers 1F78-144 70 Series Non-Programmable Thermostat, 1 Heat - 1 Cool

Save 58%
Original price $64.96
Current price $27.41
SKU 1F78-148

Emerson White-Rodgers 1F78-144 70 Series Non-Programmable Thermostat, 1 Heat - 1 Cool

Products usually ship within 1 business day.

The perfect upgrade from mechanical thermostat available as Heat Pump or Single Stage offering economy and value with proven reliability.

  • Single Stage
  • Non-Programmable Thermostat
  • Battery Powered
  • Fossil Fuel or Electric Heat Compatible
  • Millivolt Compatible
  • Selectable Fahrenheit or Celsius Temperature Display
  • Low-Battery Indicator



Data Sheet

Installation Instructions

Thermostat Cross Reference



    Specifications

    Program Options:
    Non-Programmable
    Program Periods Per Day Options: None
    Stages Heat/Cool: Single Stage - 1H/1C
    Style: Horizontal
    Typical Applications: Gas/Oil/Electric
    3-Wire Zone Valve Connections: No
    Millivolt Compatible: Yes
    Economizer Connections: No
    Humidity Control: No
    Terminal Designations: RC, RH, W, Y, O, B, G
    Heat Pump Dual Fuel Control: No
    Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option: None
    Remote Sensor Options: None
    Power Source: Battery
    Auto Changeover (Heat/Cool): No
    Fan Option: Auto, On
    Filter Change Reminder: No
    Energy Mgt. Recovery/Early Start: No
    Keypad Lockout: No
    Set-Point Temperature Limits: No
    Display Type: 1.2 square in.
    Backlight: Key Press
    Voltage: 20 to 30 Vac 50/60 Hz
    Amp Rating: 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
    Set-Point Range: 45 to 99°F (7 to 37°C)
