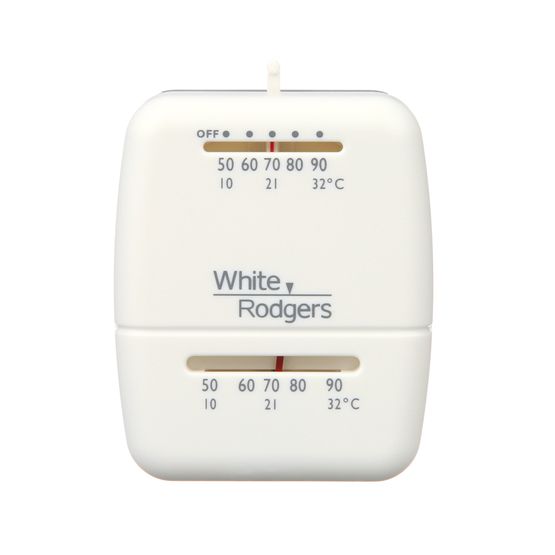

Emerson White-Rodgers 1C26-101 Heat/Cool Mechanical Thermostat, 24V
Save 58%
Original price
$40.61
Current price
$17.13
SKU 1C26-101
Emerson White-Rodgers 1C26-101 Heat/Cool Mechanical Thermostat, 24V
Products usually ship within 1 business day.
Mercury Free Reliable performance in an attractive design.
- Rugged snap-action contacts
- Adjustable heat anticipator
- Built in bimetal thermometer
- Heat / cool model includes switching subbase
- Heat / cool model compatible with electric heat systems
1C26-101 Instruction Manual
Specifications
| Stages Heat/Cool: | Single Stage - 1H/1C, Conventional or Heat Pump No Aux |
| System Switch: | Heat-Off-Cool |
| Fan Switch: | Auto-On |
| Contacts: | Snap-Action |
| Typical Applications: | Gas/Oil/Electric |
| Millivolt Compatible: | Yes |
| Electric Heat Strip: | Yes |
| ”OFF” Position: | Yes |
| Accessories: | Includes F61-2499 Wall mounting plate |
| Range: | 50-90°F (10-32°C) |
| Style: | Vertical |
| Terminals: | RC, RH, W,Y, O, B, G, A |
| Voltage: | mV to 30 Vac 50/60 Hz |
| Amperage: | Anticipation Adjustable from 0.15 to 1.2 Amps |
| Overall Dimensions: | 3.75”H X 3.13”W X 1.63”D |
