Emerson TXV+CONNECT 3TR-410A, 3 Ton, R-410A Thermostatic Expansion Valve
Save 59%
Original price
$180.06
Current price
$73.15
SKU 066662

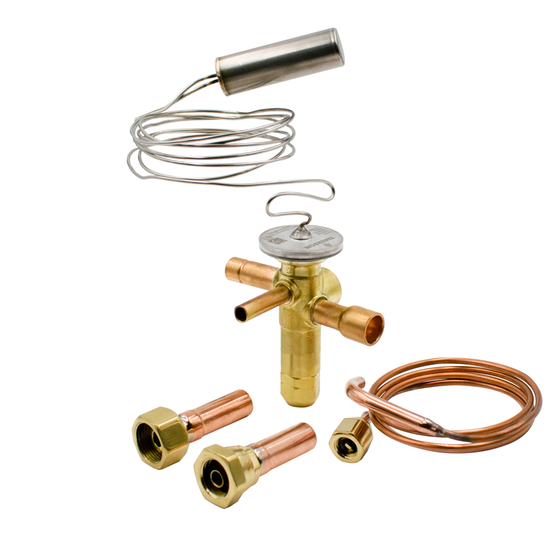

Emerson TXV+CONNECT 3TR-410A, 3 Ton, R-410A Thermostatic Expansion Valve
TXV Connect Kit Thermostatic Expansion Valve, Externally Equalized, 3 Ton Capacity, Refrigerant Code Z (R-410A), Charge Code AA (Wide Range), Cap Tube 5 Ft., 3/8" ODF X 1/2" ODF, Straight Thru Body
Emerson™ TXV Connect kits include our latest generation thermal expansion valves plus Chattleff and Aeroquip adapters that are easy to install into all residential air conditioning systems.
Features and Benefits
- ODF TXVs with Chatleff and Aeroquip adapters
- One valve to fit all systems
- TXV with internal check, bulb strap, and connection options all in one box
- R-410A and R-22 kits in multiple capacities
- Easy field replacement of fixed orifice for increased efficiency
Data Sheet
Specifications
| Capacity Nominal: | 3 Tons |
| Refrigerant: | R-410A |
| Inlet Connection Size: | 3/8” ODF Solder (Chatleff and Aeroquip Adapters Included) |
| Outlet Connection Size: | 1/2” ODF Solder (Chatleff and Aeroquip Adapters Included) |
| Internal Check: | Yes |
| Maximum Working Pressure: | 700 psig |
| Approvals: | UL/CUL File Number SA5312 (Valves) |
