Emerson BVS 078 7/8" ODF Refrigeration Ball Valve with Access Port

Save 56%
Original price $95.74
Current price $41.89
SKU 806758
Currently 20 in stock.

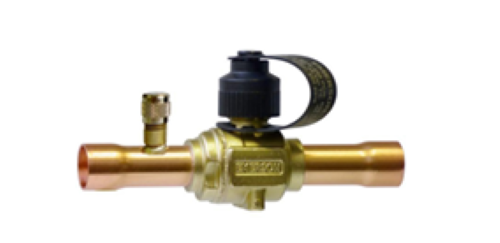

Emerson BVS 078 7/8" ODF Refrigeration Ball Valve with Access Port

The BVE/BVS Series welded refrigeration ball valves isolate suction, discharge, and liquid line pipework during maintenance shutdown periods.



Features and Benefits

  • Forged brass body
  • Compact, lightweight, hermetic welded design
  • Compatible with HCFC and HFC refrigerants/lubricants including R-410A and R-744
  • Full flow design*
  • Bi-directional flow characteristics
  • Valve stem cap retained by strap attached to main body
  • Integrated access port available on all sizes
  • Low operating friction design



Spec Sheet



Specifications

Inlet Connection Size: 7/8” ODF Solder
Outlet Connection Size: 7/8” ODF Solder
Access Valve:
Port Size: Full Port
Body Design: Forged Brass
Construction: Extended Tubes, 100% Copper Connections
Maximum Working Pressure: 650 psig
Fluid Temperature Range: -40°F to 250°F (302°F short term)
Approvals: UL/CUL File Number SA5312
