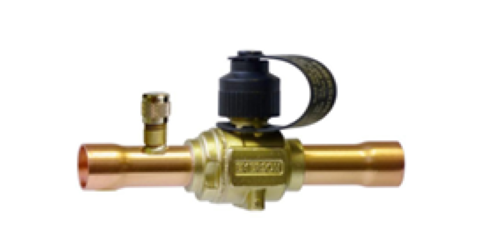

Emerson BVS 034 3/4" BV Series Ball Valves



BVS Series Welded Refrigeration Ball (With Access Valve), Connection size 3/4", with Valve Stem Cap Strap



Features and Benefits:

• Forged brass body
• Compact, lightweight, hermetic welded design
• Compatible with HCFC and HFC refrigerants/lubricants including R-410A and R-744
• Full port design
• Bi-directional flow characteristics
• Valve stem cap strap
• Integrated access valve
• Low operating friction design



Spec Sheet

Specifications:



• Body: Forged Brass
• Construction: Extended Tubes, 100% Copper Connections
• Maximum Working Pressure: 650 psig
• Fluid Temperature Range: -40 degrees to 250 degrees (302 degrees short term)
• Certifications: UL/CUL File Number SA5312 (BVE/BVS); UL/CUL File Number SA32723(BVSS)
