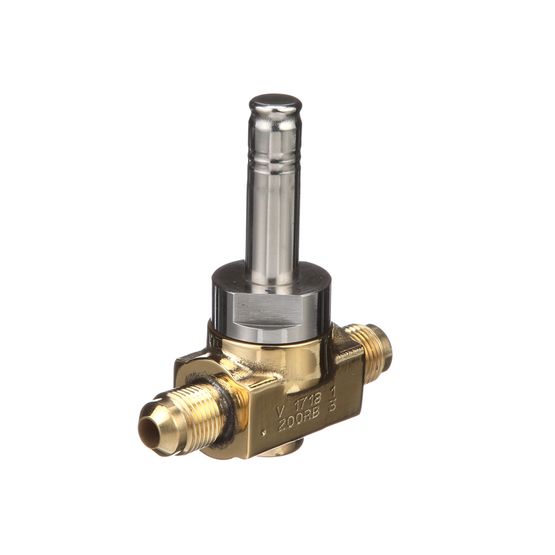

Emerson 200RB 3F3VLC, 3/8" SAE 2-Way Pilot-Operated Solenoid Valve, Less Coil

Save 56%
Original price $132.22
Current price $57.85
SKU 052726
Currently 4 in stock.

Emerson 200RB 3F3VLC, 3/8" SAE 2-Way Pilot-Operated Solenoid Valve, Less Coil

200RB Pilot-Operated Solenoid Valve, 2-Way, Normally Closed for Liquid, Discharge, or Suction Gas Refrigerant Service, Port Size 3 (3/16"), Inlet Connection 3/8" SAE, Outlet Connection 3/8" SAE, Body Style Straight Thru, Coil VLC

The 200RB is a pilot-operated, 2-way, normally closed valve. 200RB valves are used for liquid, discharge, or suction gas refrigerant service.



Features and Benefits

  • One coil fits all valve sizes
  • Extended ends for easy installation (standard)
  • Long-life molded coils
  • PTFE O-ring for superior external sealing

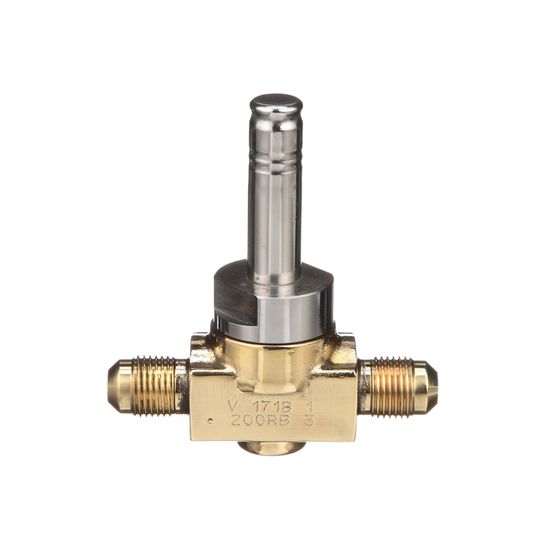

200RB Series Refrigerant Solenoid Valve

Instruction Manual



Specifications

Valve Type: Pilot Operated, 2-Way, Normally Closed
Port Size: 3/16"
Outlet Connection Size: 3/8” SAE
Special Feature: Standard Valve
Maximum Fluid Temperature: 250°F
Maximum Working Pressure: 680 psig
Minimum Operating Pressure Drop: 2 psi
MOPD: 300 psig
Approvals: UL/CUL File Number MP604
