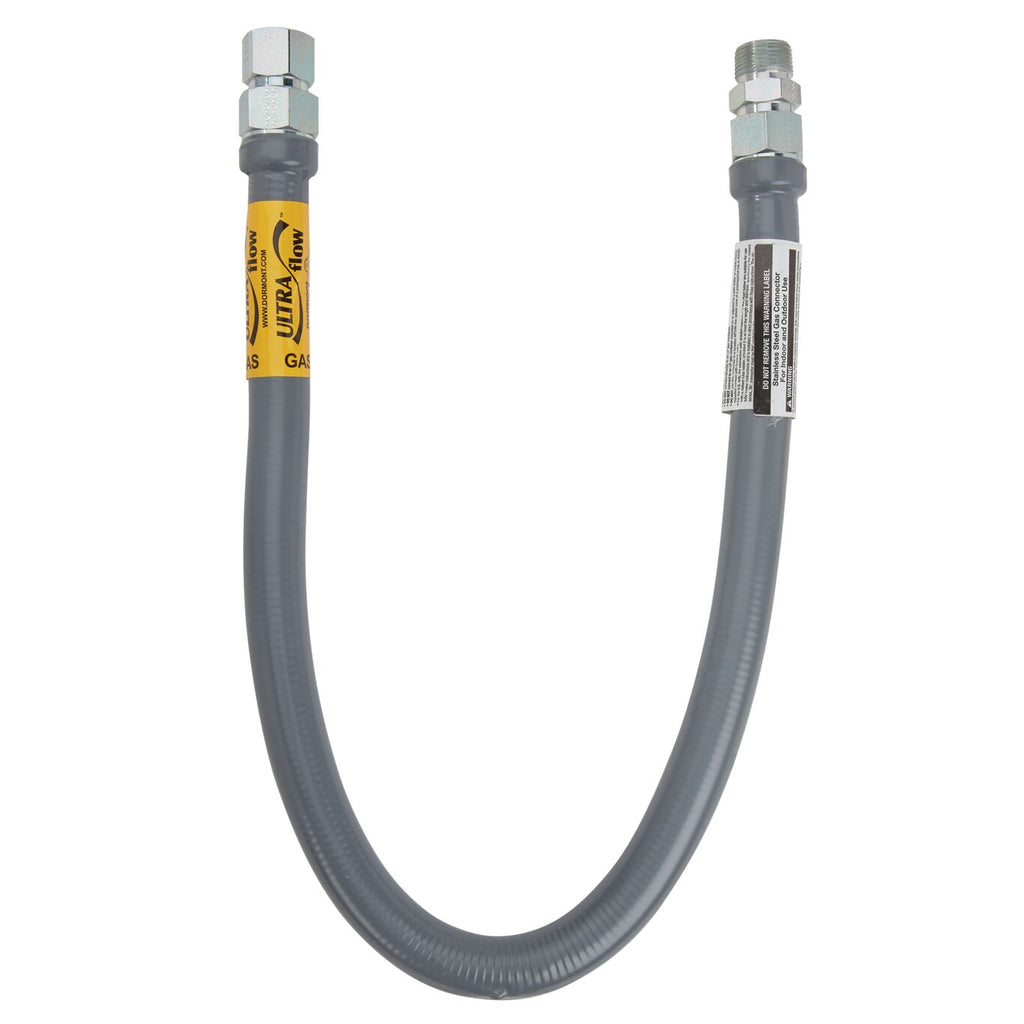

Dormont 41-4142-24 3/4" ID (1" OD) High BTU SS Flexible Gas Connector, 3/4" MIP x 3/4" FIP, 24" Length, Gray PVC Coated

This 1 inch OD, 3/4 inch ID, durable, corrosion resistant stainless steel gas connector is configured with 3/4 inch MIP x 3/4 inch FIP adapters and is 24 inches in length. Designed with safety in mind, this CSA approved gas connector is coated with antimicrobial PVC for unmatched protection from weather and abuse. It is commonly used for the installation of high BTU appliances such as tankless water heaters, rooftop units and mobile home gas meters.

Features

• Designed and certified by CSA for indoor and outdoor use
• Durable and corrosion resistant
• 304 Stainless steel
• 100 Percent factory leak tested


Specifications

Application Location:	Indoor; Outdoor
Application:	Standby Generator, Boiler, Tankless Water Heater, HVAC Rooftop Unit, Commercial Tanked Water Heater, Infrared Tube Heater
Body Material:	Stainless Steel
Coating:	Gray PVC Coating
Design Certification:	CSA certified to ANSI Z21.24/CSA 6.10; CSA certified to ANSI Z21.75/CSA 6.27; IAPMO certified to TS 9-2003
End Connection 1:	3/4" MPT Fitting
End Connection 2:	3/4" FPT Fitting
Inner Diameter:	3/4"
Outer Diameter:	1"
Length:	24"



Specification Sheet
