Description

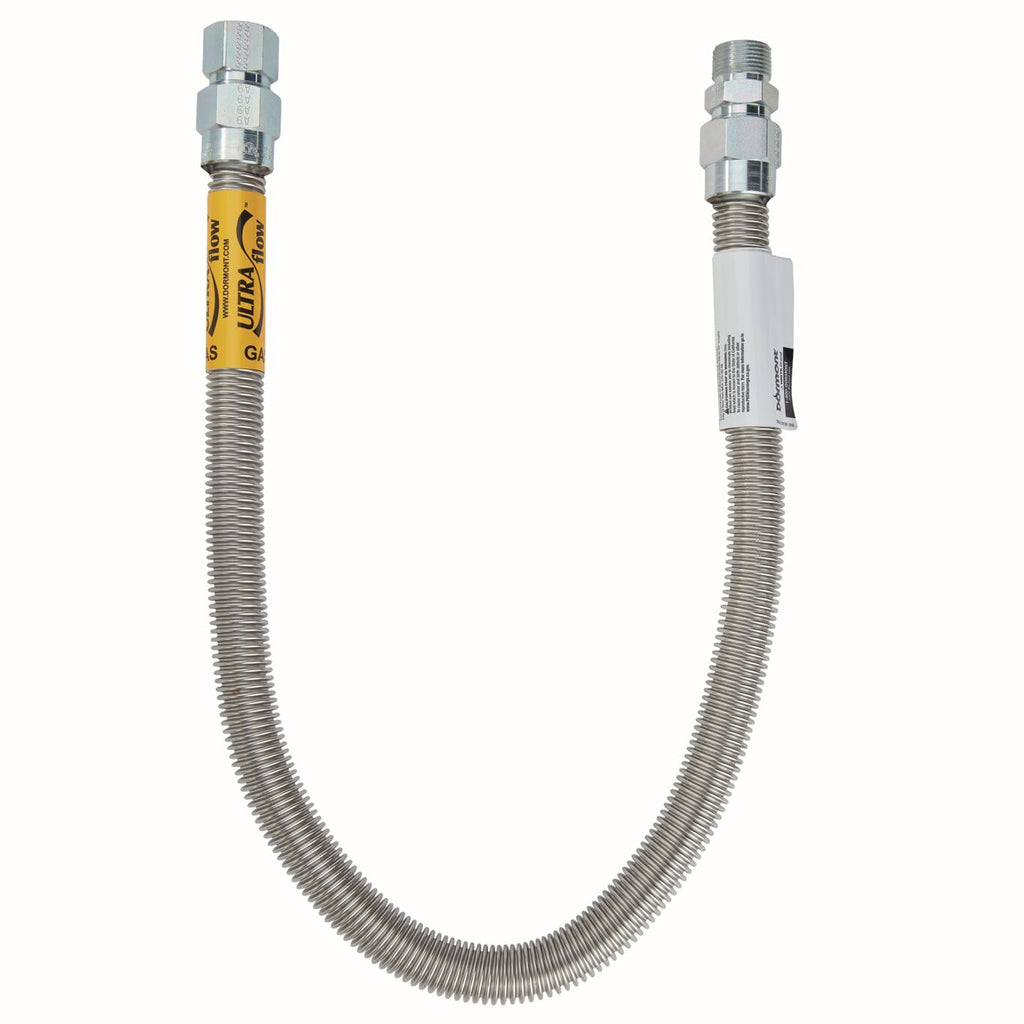

Dormont 40-4142-24 3/4" ID (1" OD) High BTU SS Flexible Gas Connector, 3/4" MIP x 3/4" FIP, 24" Length
This 1 inch OD, 3/4 inch ID, durable, corrosion-resistant stainless steel gas connector is configured with 3/4 inch MIP x 3/4 inch FIP adapters and is 24 inches in length. Designed with safety in mind, this CSA approved gas connector is commonly used for the installation of appliances requiring a high BTU.
Features
- Designed and certified by CSA for indoor and outdoor use
- Durable and corrosion resistant
- 304 Stainless steel
- 100 Percent factory leak tested
Specifications
|
Application Location: |
Indoor; Outdoor |
| Application: | Standby Generator, Boiler, Tankless Water Heater, HVAC Rooftop Unit, Commercial Tanked Water Heater, Infrared Tube Heater |
| Body Material: | Stainless Steel |
| Coating: | Uncoated |
| Design Certification: | CSA certified to ANSI Z21.24/CSA 6.10; CSA certified to ANSI Z21.75/CSA 6.27; IAPMO certified to TS 9-2003 |
| End Connection 1: | 3/4" MPT Fitting |
| End Connection 2: | 3/4" FPT Fitting |
| Inner Diameter: | 3/4" |
| Outer Diameter: | 1" |
| Length: | 24" |
Specification Sheet
Installation Instructions
