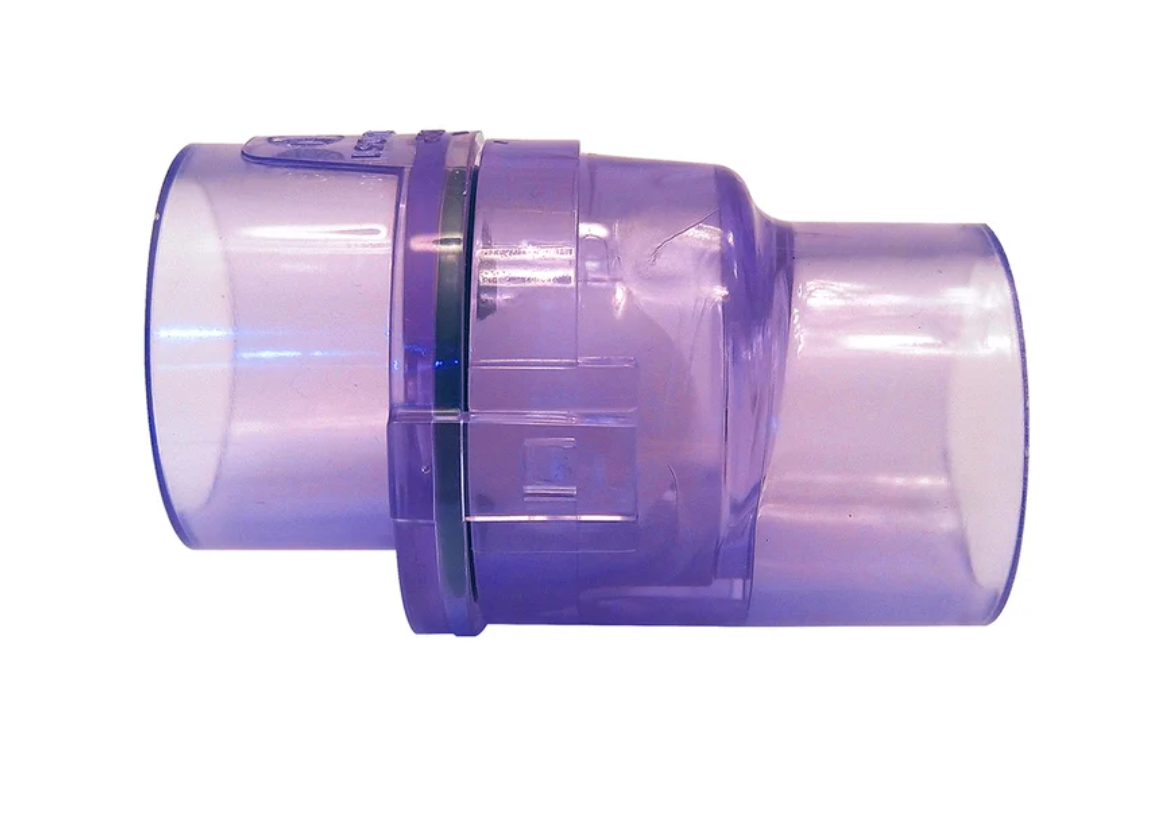

Des Champs FCN CLEAR 3/4" Compact Residential / Lite Commercial Negative Pressure Waterless Trap
Never Freezes - Never “Dries” Out!
The Air-Trap™ allows liquid condensate to drain from the HVAC equipment and simultaneously prevents air from entering or escaping from the equipment.
Typically, HVAC equipment is fitted with “P” traps that require water, or another liquid, within a standpipe to prevent gas from entering or leaving the unit. As a result, the “P” traps are susceptible to freezing - expansion - bursting. At other times, the traps dry out allowing gas to escape or enter the HVAC equipment. The Air-Trap™ never requires addition of water to prevent unwanted air leakage.
FCN-Series
- Perfect for Ductless Mini-splits
- Compact Residential / Lite Commercial Negative Pressure Waterless Trap
- * Can be used as a positive pressure trap
Features
- Condensate flow up to 0.8 GPM at 2" negative pressure
- Schedule 40 PVC with easy maintenance, side clips to open the Air-Trap for cleaning
- Retains no water after condensing has ceased
- 3/4" internal slip or fitting (can connect to 1/2" via reducer coupling)
- Perfect for ductless mini-splits
- Meets general building codes. For use on HVAC equipment only. Not for use as a sanitary trap.
Specifications:
- Maximum negative pressure of WC: 5"
- Maximum positive pressure of WC: 1/2"
- Maximum Condensate Flow, GPM:
- Any Negative Pressure: 0.8
- Positive Pressure: 0.04 at 0.5" WC
- Length: 2.48"
- Flammability rating is UL94 V-0
- Air-Traps Meet IMC® Code Section M307.2.4.1
