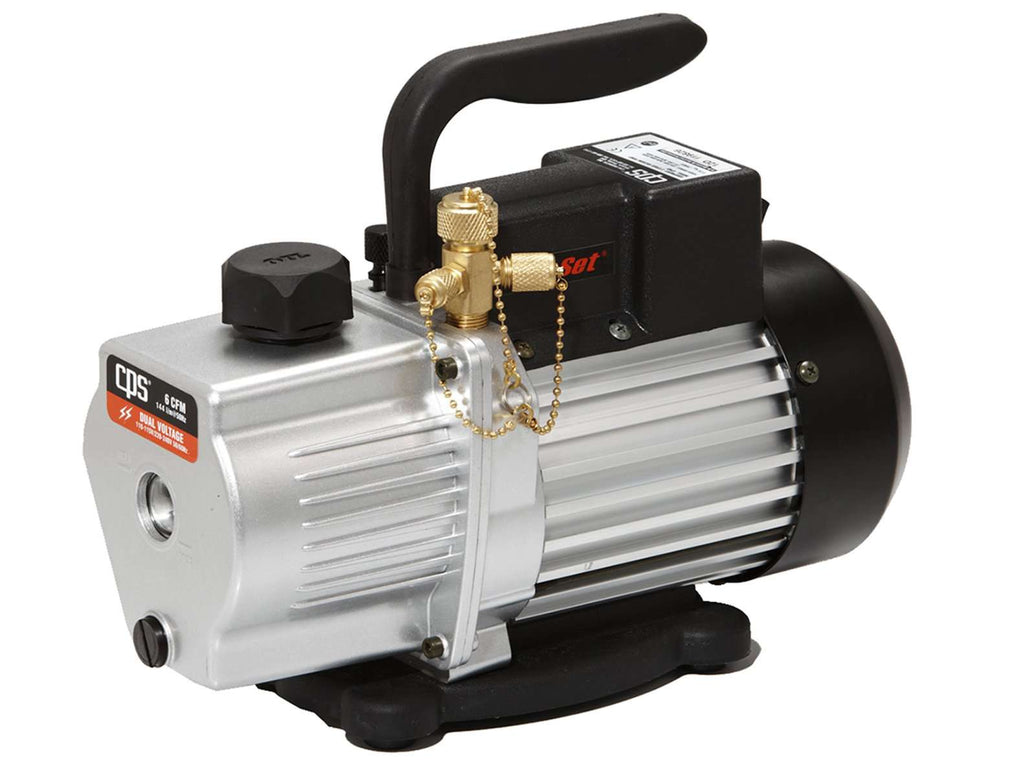

CPS VP6D Pro-Set® 2-Stage Vacuum Pump, 6 CFM

Save 13%
Original price $387.42
Current price $335.77
SKU VP6D

The VP6D Pro-Set® Premium Series vacuum pump is a 6 CFM, 2 stage unit with a versatile dual voltage 1/2 HP motor.

Products usually ship within 1 business day.

The unit boasts the same high quality, high value features engineered into all of our Pro-Set® vacuum pumps providing performance excellence and years of reliable service.

ITEM FEATURES

• Dual voltage operation 110-120V / 220V 50 / 60 Hz
• Exceptional ultimate vacuum rating as low as 10 microns
• Advanced air cooled motor design for operation in high ambient temperatures
• Proprietary oil mist free exhaust port cap for clean, safe job environment
• Gas ballast valve speeds achievement of deep vacuum
• Multiple port connections for 1/4", 3/8", and 1/2" ACME
• Easy Maintenance with large oil sight glass and fill port with easily accessible oil drain port
• Solid rubber base provides extreme shock resistance
• Sure grip handle ergonomically designed for superior comfort and portability

SPECIFICATIONS:

Stage:  2
Ultimate Vacuum:  10 Microns
Refrigerant Class:  A1, A2
Dimensions:  13.1" x 5.5" x 10"
Weight:  22.5 lb (10.2 kg)
Free Air Displacement:  6 CFM @ 60 Hz (144 l/m @ 50 Hz)
Motor Size:  1/2 HP (2880, 3440 RPM)
Voltage (Hz):  110-120V Or 220-240V 50/60Hz
Power Cord Connection to Pump:  Universal IEC Socket & Voltage Selector Switch
On/Off Power Switch:  Yes
Operating Temperature Range:  32°F to 125°F (0°C to 52°C)
Vacuum Pump Oil Capacity:  16 oz (470 ml)
Gas Ballast Valve:  Yes
Intake Fittings:  SAE: 1/4", 3/8", ACME:  1/2"
