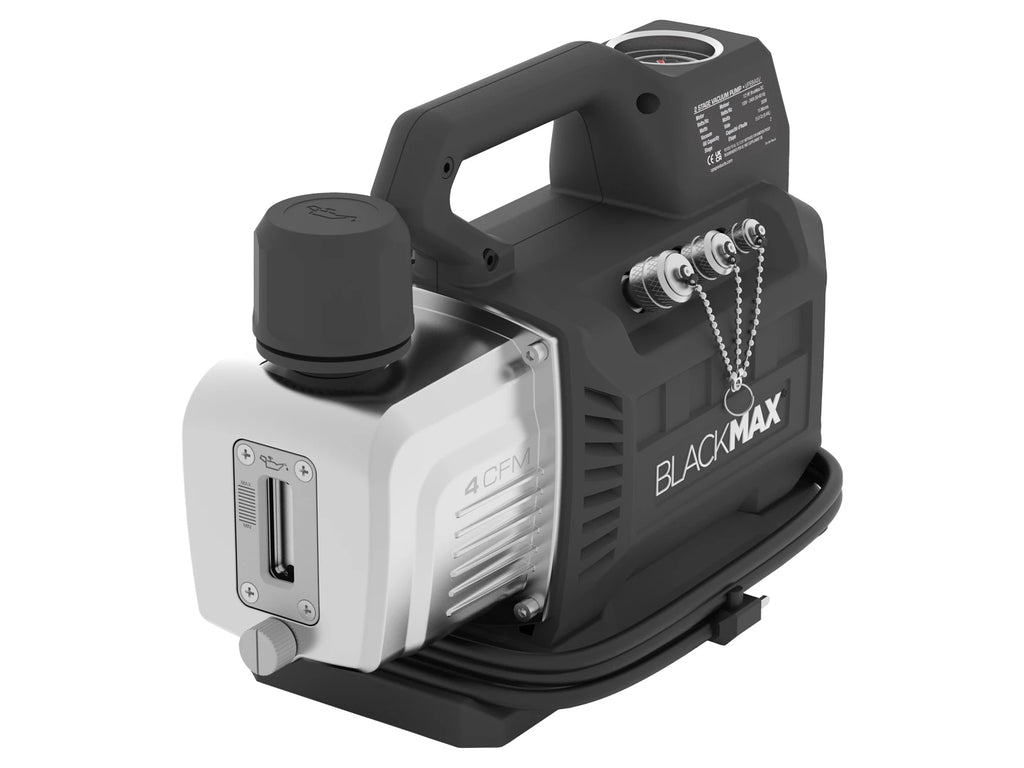

CPS Products VPBM4V BlackMax® 4 CFM Vacuum Pump
CPS Products VPBM4V BlackMax® 4 CFM Vacuum Pump
Key Features:
- Lightweight (18.2 Lbs / 8.25 Kg)
- Compact, portable size (0.48 cu. ft.)
- 1/2 HP, variable speed, brushless DC motor
- 100 to 240VAC (50/60Hz) universal voltage
- In-line 1/2″, 3/8″,1/4″ hose connection ports
- Stores/operates in extreme temperatures
- Auto shut-off solenoid valve
- Analog vacuum gauge
- Large vertical oil sight glass
- Closed, hoist-type handle
- 15 Micron ultimate vacuum
- Quiet Operation
SPECIFICATIONS:
Maximum Free Air Displacement: 4 CFM
Stage: 2
Ultimate Vacuum: 15 Microns
Refrigerant Class: Compatible With Residual A1, A2L, A2, A3 Refrigerants (Not A Recovery Machine)
Voltage: Universal Voltage: 100V min- 240V max, 50/60Hz
Maximum RPM: 3200
Motor Size (HP): 1/2 HP
Watts: 300
Ignition Proof On/Off Switch: Flashing Green: Standby; Solid Green: Pump Is Running
Power Cord: Locking 90° IEC Type, 10 Ft (3m) Length
Vacuum Pump Oil Capacity (Max): 15.0 Oz (0.44 L)
Exhaust/Oil Fill Cap: Mist Free
Analog Vacuum Gauge: Units: kPa, InHg (Accuracy +/-2%)
Gas Ballast Valve: Drys Out The 2nd Stage. Plated Brass
Solenoid Valve: Normally Closed. Open When Vacuum Pump Is Energized
Operating Temperature Range: 5°F to 130°F (-15°C to 55°C)
Thermal Overload Protection: Yes
Pump Weight (W/o Pkg): 18.2 Lbs (8.25 Kg)
Actual Size (mm): 10.0″ H x 5.8″ W x 13.8″ L (254 x 147 x 352 mm)
Approvals: CE and UKCA (Tested to UL 12.12.01 Methods For Ignition Proof Requirements Per UL1963 Supplement SB)
EMC (Electro-Magnetic Compatibility):
EN IEC 55014-1:2021; EN IEC 55014-2:2021;
EN IEC 61000-6-1:2019; EN IEC 61000-6-3:2021
Warranty (Years): 2 Year
