CPS Products VP4D Pro-Set® 4 CFM Vacuum Pump
Sold out
Original price
$359.48
Current price
$311.55
SKU VP4D

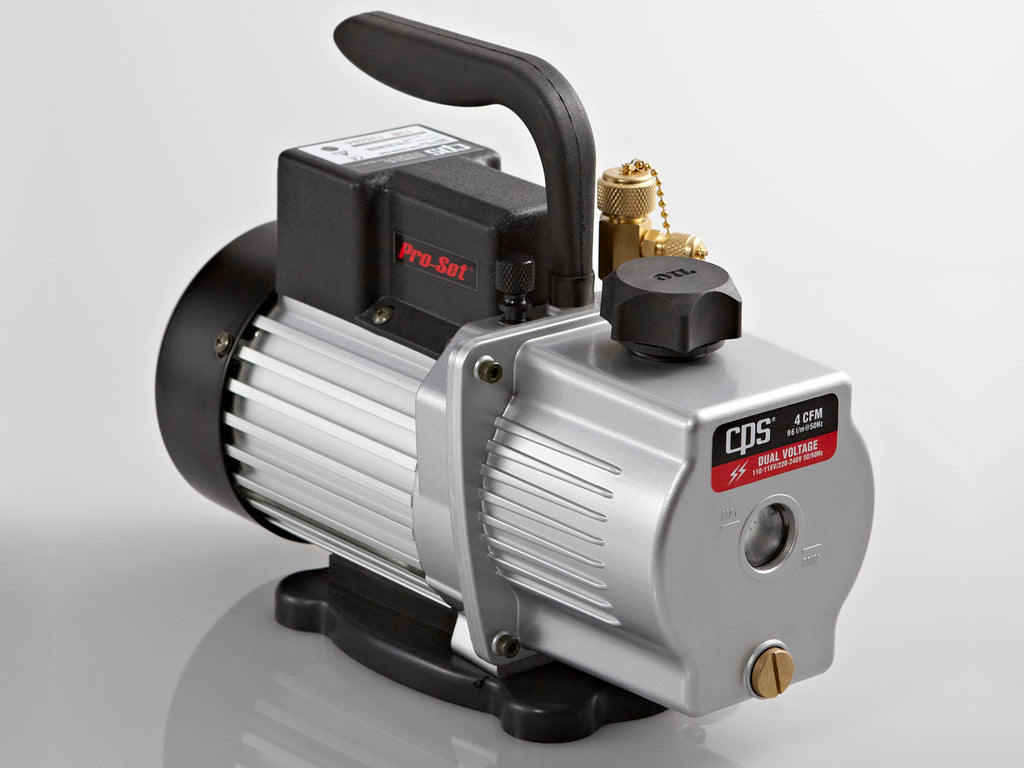

CPS Products VP4D Pro-Set® 4 CFM Vacuum Pump
The VP4D Pro-Set® vacuum pump is a 4 CFM, 2 stage unit with a versatile dual voltage 1/2HP motor. The unit boasts the same high-quality, high-value features engineered into all of our Pro-Set® Premium Series vacuum pumps providing performance excellence and years of reliable service.
VP4D Features:
- Dual voltage operation 110-120V / 220V 50/60Hz
- Exceptional ultimate vacuum rating as low as 10 microns
- Advanced air cooled motor design for operation in high ambient temperatures
- Proprietary oil mist free exhaust port cap for the clean, safe job environment
- Gas ballast valve speeds achievement of deep vacuum
- Multiple port connections for ¼”, ⅜” and ½” ACME
- Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port.
- The solid rubber base provides extreme shock resistance
- Sure-grip handle ergonomically designed for superior comfort and portability
SPECIFICATIONS:
- Stage: 2
- Motor Size (HP) RPM @ 50/60Hz: 1/2 (HP)2880/3440
- Dimensions (Inches): 13.1 x 5.5 x 10
- Weight: 22.1 lb / 10.0 kg
- Operating Temperature Range: 0˚C (32˚F) to 52˚C (125˚F)
- Power Source: 110-120V / 220V 50/60Hz
- Ultimate Vacuum: as low as 10 Microns
- Oil Capacity: 15.5 oz / 450 ml
- Construction: Heavy Gauge Aluminum Chasis with hard rubber base and rubber lined steel handle
- Overload Protection: Motor Thermally Protected, Dual Voltage units have extra IEC fuse
- Control System: ON-OFF power switch
- Free Air Displacement: 4 CFM @ 60Hz, 96l/m @ 50Hz
- Intake Fittings: ¼” SAE, ⅜” SAE, and ½”ACME
- Gas Ballast Valve: Yes
