Description

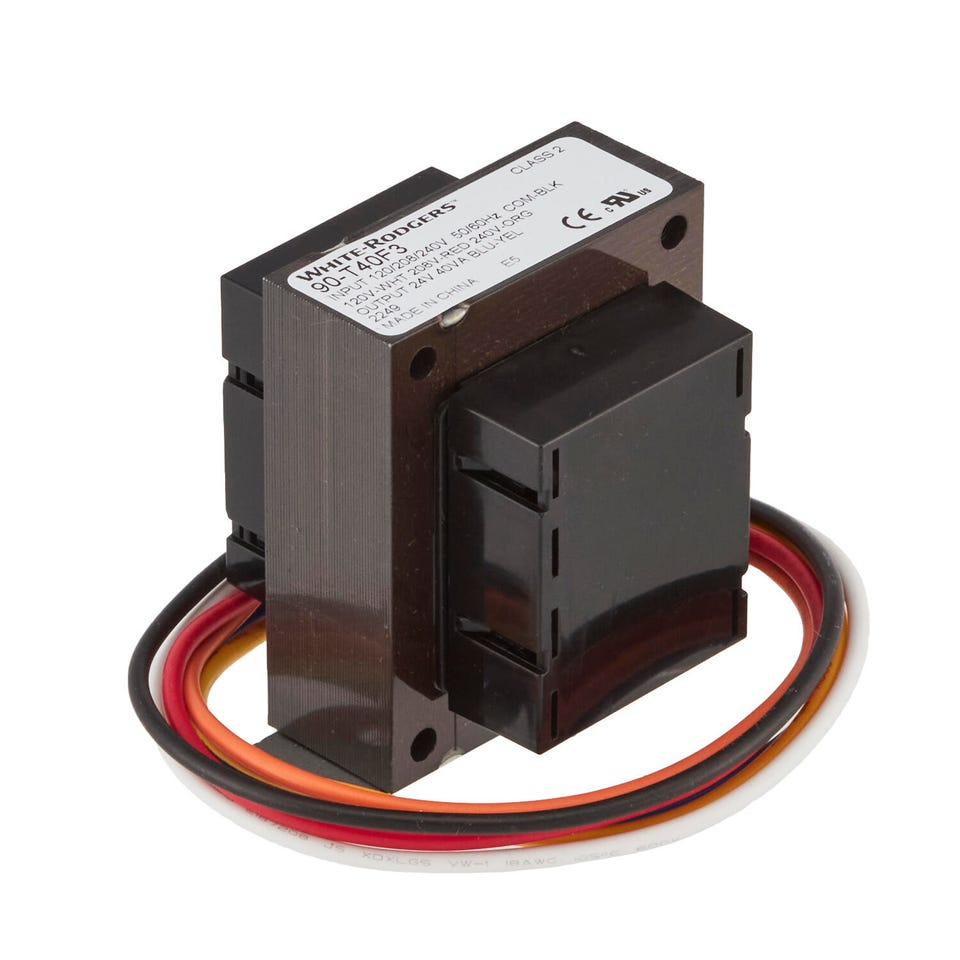

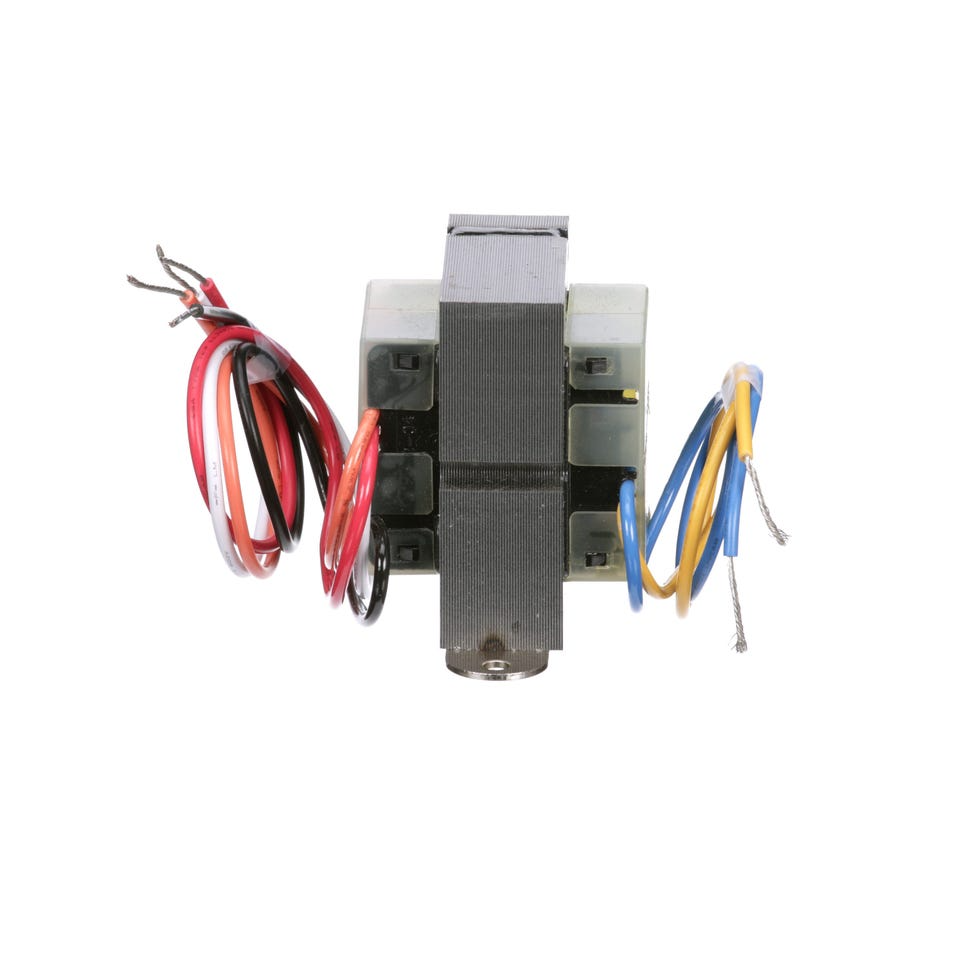

Copeland White-Rodgers 90-T40F3 90-T Series Energy Limiting 24 Vac Transformer
Universal Transformer For Industrial, Heating and Air Conditioning Controls Applications.
FEATURES:
- Color coded primary leads
- Multi-mount styles available.
SPECIFICATIONS:
| Brand/Part Number Replaced: | Jard 50354 |
| Connection: | Primary - Leads, Secondary - Leads |
| Electrical Connection: | Leads |
| Electrical Rating: | 120/208/240 Vac, 24 Vac, 40VA, 60Hz |
| Family: | 90-T Series 24 Vac Transformers |
| Frequency (Hz): | 50/60 |
| Housing Material: | Steel |
| Mounting: | Foot Mount |
| MSDS Required: | No |
| Product Depth/Width [in]: | 3.25 |
| Product Family: | 90-T Series 24 Vac Transformers |
| Product Height (in): | 2.75 |
| Product Length (in): | 2.18 |
| Secondary VA: | 40 |
| Voltage: | Secondary: 24 VAC |
