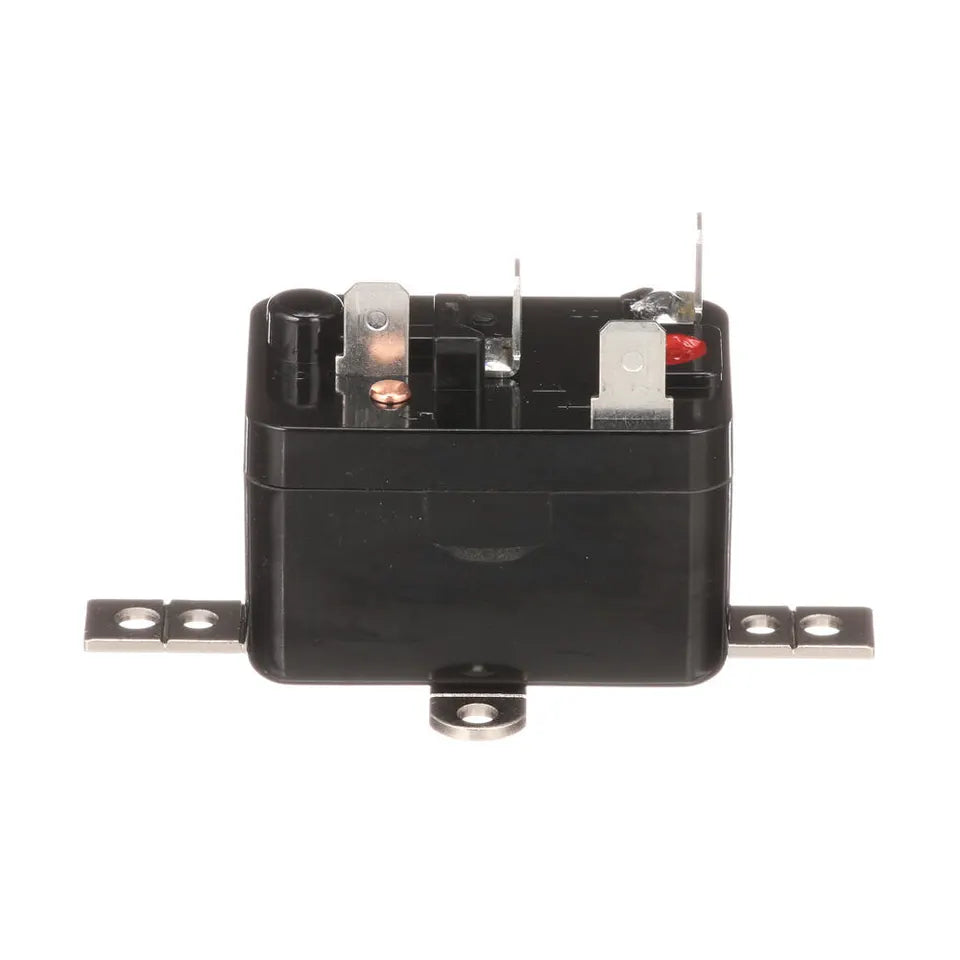

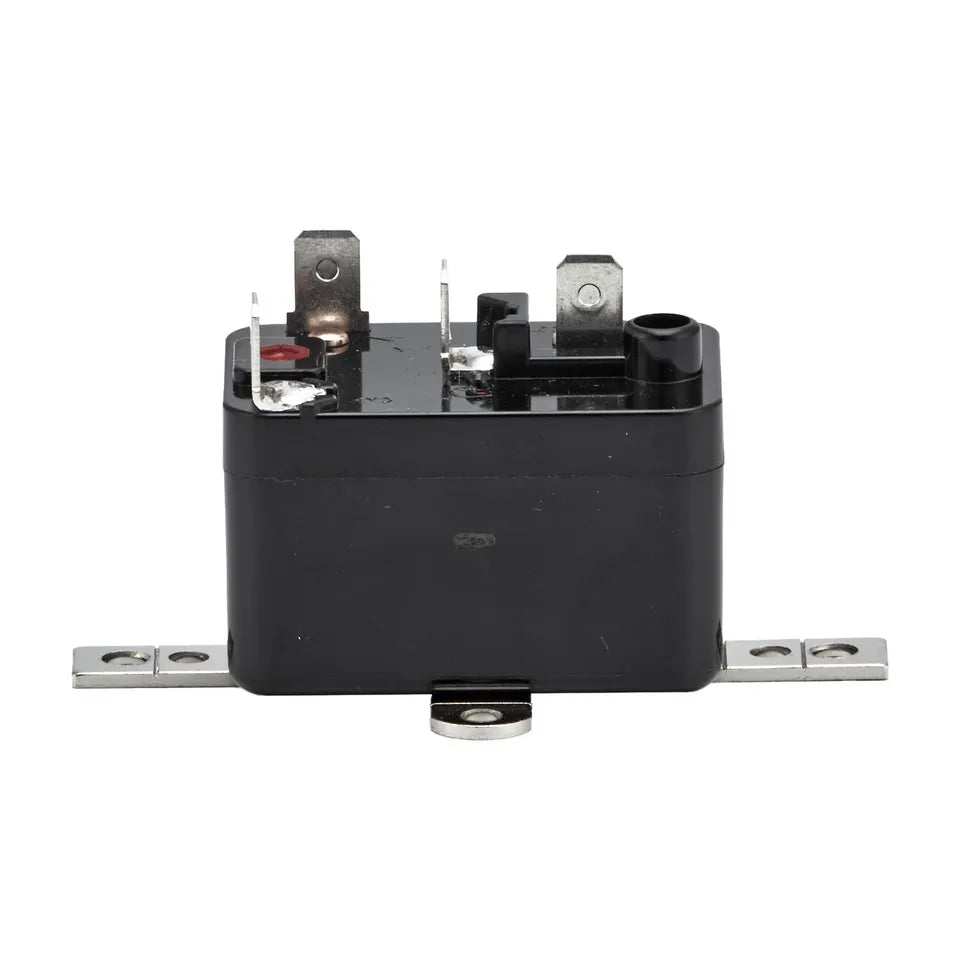

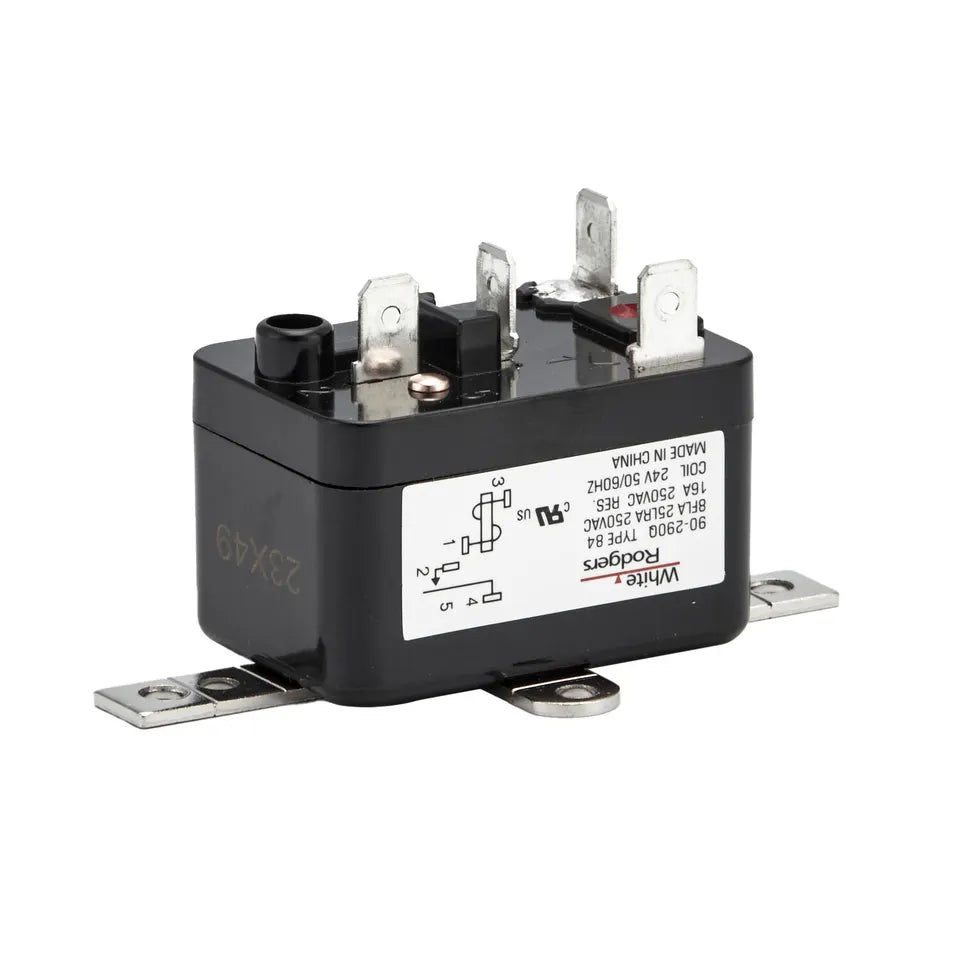

Copeland White-Rodgers 90-290Q, Switching Relay

Used for Switching Single or Two Speed Fan Motors, Solenoids, Relays, Resistive Loads and General Purpose Switching

Features:

• Compact, totally enclosed design
• For heating and cooling applications and general switching
• Quiet, reliable and economical
• Product Depth/Width [in]:  3

• Product Height [in]:  1.56

• Product Length [in]:  1.812



Specifications:

Coil Frequency [Hz]:	50/60
Coil Resistance [ohm]:	90
Country of Origin:	CN
Duty Cycle:	Continuous
Electrical Connection:	1/4in. Quick Connect
CSA File Number:	LR13360
Family:	90-290Q Thru 90-295Q Relays
Mechanical Life [cycles]:	1,000,000 operations, 60 operations/min 100,000 operations, 6 operations/test, inrush rating (0.4 to 0.5 P.F.)  breaking 100% continuous rating (0.64 to 0.8 P.F.)
Operating Temperature Range [°F]:	-40 to 150
UL/CUL File Number:	E12139, E22381
