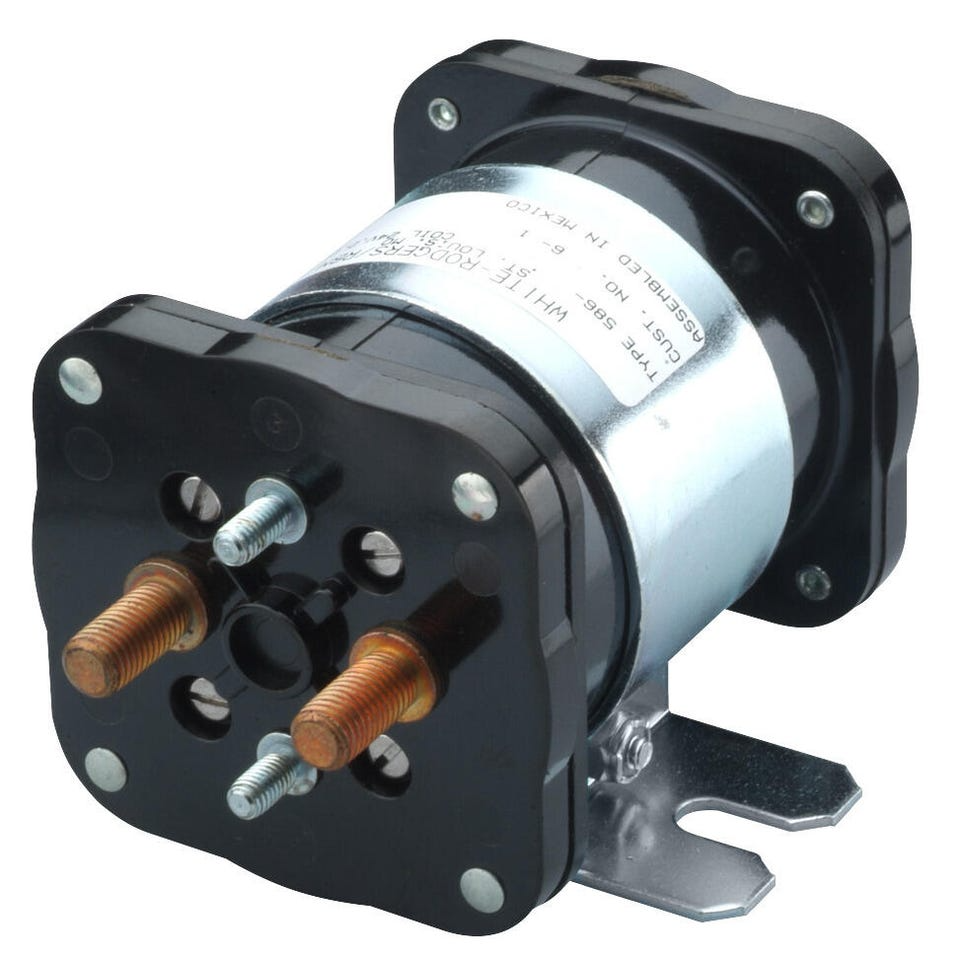

Copeland White-Rodgers 586-105111 586 Series 12A D.C. Contactor

Single Pole Normally Open Contacts. Water Resistant and Case is Isolated from Bracket

FEATURES:

• Double-make or double-break contacts
• Capable of handling high and low current requirements.
• Impact resistant phenolic casing
• Water and Dust Resistant Case Design


SPECIFICATIONS:

• Dielectric Strength:  500 volts
• Temperature Range:  -40°F/-40°C to 149°F/65°C

• Mechanical Life (no load):  100,000 operations
• Electrical Life (rated load–making and breaking 200 amp on NO contacts):  50,000 cycles

• Mounting Position:  Recommended mounting is vertical plane with coil
  terminals up
• Weight (approximate):  24.0 oz.

• Duty Cycle:
  • Continuous
  • Intermirrent:  10 seconds “on” maximum and minimum
    60 seconds “off”; One minute “on” maximum and minimum 6 minutes “off”
• Hardware Torque Specification
  • Contact Terminal:  60 inch-lbs. max.
  • Coil Terminal:  12-18 inch-lbs
• Contacts
  • Pole form:  SPNO
  • Material: silver alloy
  • Termination: 5/16- 24 UNF-2A thread
• Volts DC:  12

• Continuous Contact Rating:  200A

• Inrush:  600A
• Termination:  #10-32 UNF-2A thread

• Connections:  Coil isolated (two terminals)

• Minimum operating voltage:
  • 75% of rated coil voltage
  • Maximum 10% over rated coil voltage
