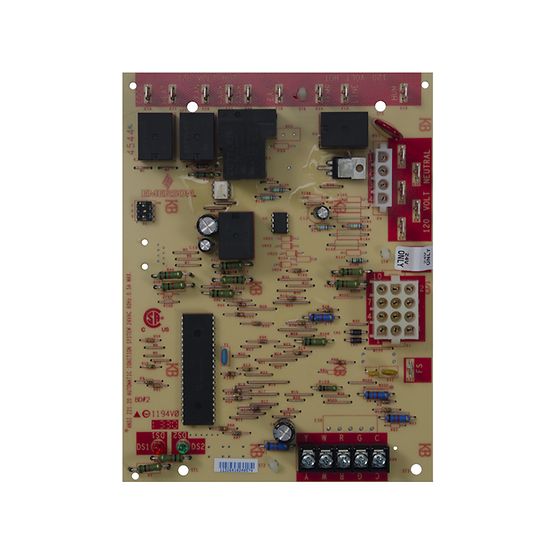

Copeland White-Rodgers 50A66-743 Integrated Furnace Control Board, Lennox Direct OEM Replacement
Save 56%
Original price
$323.65
Current price
$141.60
SKU 50A66-743
Copeland White-Rodgers 50A66-743 Integrated Furnace Control Board, Lennox Direct OEM Replacement
Replaces many OEM Integrated Furnace modules
- Direct OEM replacements designed for high volume major brand controls
- Models include PSC, Variable Speed and ECMx motor control
- Diagnostic LED indicators streamline installation and system troubleshooting
- 120V air cleaner output and 120V humidifier output up to 1 Amp max
- Factory standard safety timings and adjustable fan delay options
- Replaceable automotive style fuse
Installation Instructions
Specifications
|
Family Brands of Equipment: |
Lennox |
| Stages: | Single Stage |
| Ignition Type: | HSI |
| Ignitor Voltage: | 80 VAC Only |
| Inducer Motor/Blower Motor: | PSC/PSC |
| Blower Motor: | Speed Taps: Heat, Cool, Fan |
| Thermostat Inputs: | R, C, W, Y G |
| Accessories: | None |
| Twinning: | No |
| Communicating System: | No |
| Mounting Options: | Standoff |
Cross Reference
| Lennox: | 100925-01, 100925-02, 100925-03, 17W92, 17W9201, 23W51, 23W5101, 30W25, 30W2501, 69M08, 69M0801, 69M15, 69M1501 |
| White-Rodgers: | 50A66-122, 50A66-123, 50A66-743 |
