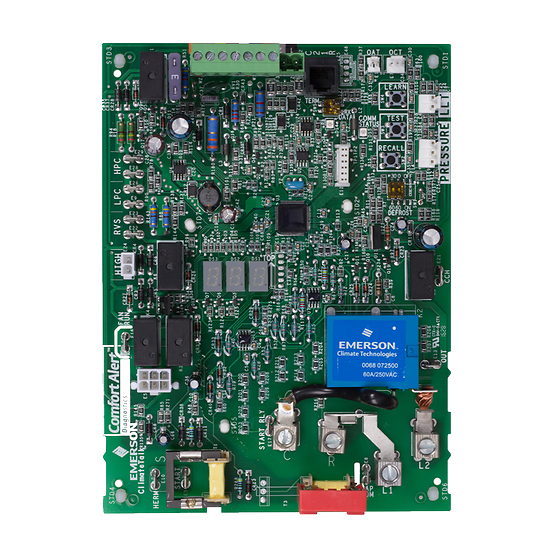

Copeland White-Rodgers 49S25-707 Goodman Direct Replacement AC or Heat Pump Control
Goodman direct replacement two-stage AC or heat pump unitary control for PCM or ECM outdoor fan motors, and single-phase compressors up to 5-tons. Works with legacy HVAC 24 vac or 4-wire communicating systems.
- Direct OEM replacement
- Works with HVA/C Legacy 24v or 4 Wire Communicating Systems
- Designed for applications with PSC or ECM outdoor fan motors
- Designed for single-phase compressors up to 5-ton units
Sell Sheet
Installation Instructions
Specifications
|
Universal or OEM Direct Replacement: |
Goodman Direct Replacement |
| Stages: | Two-Stage |
| Description: | A/C or Heat Pump Control |
| Voltage: | Input 24 Vac, 60Hz |
| Line Voltage: | 240 Vac |
|
Inducer Motor/Blower Motor: |
PSC or ECM |
|
Mounting Options: |
Standoff |
|
Ambient Operating Temperature: |
-40 to 175°F (-40 to 80°C) |
|
Operating Humidity: |
5% to 93% relative humidity (non-condensing) |
|
Overall Dimensions: |
3.70 in. H X 11.60 in. W X 6.90.in. D |
|
Connections: |
Thermostat Inputs 1,2,R,C,W1,Y1,Y2,O,L |
Direct Replacement For:
- Goodman: PCBGR102, PCBGR102S, PCBHR103, PCBHR103S, PCBHR104, PCBHR104S
- White-Rodgers: 49C25-289-01, 49J22-289, 49J22-289-02, 49K25-289-01, 49S25-707
