Description

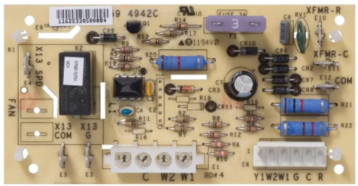

Copeland White-Rodgers 48M55-751 Single Stage 3-In-1 Air Handler Control for Carrier
Direct replacement for Carrier single stage air handler with PSC Blowers or ECMx Constant Torque Blowers
Features
- Fast drop-in OEM mounting and wiring
- Factory wiring for inline connector or spade terminals
- Dipswitch selectable blower off delay
- Configures for either PSC or ECMx blower motors
- Use for any single stage Carrier equipment
Specifications
| Ambient Operating Humidity: | 5 to 95% RH |
|---|---|
| Brand/Part Number Replaced: | Carrier |
| California Prop 65 Cancer or Reproductive Harm: | Yes |
| Connection: | Thermostat Inputs R,C,G,W |
| Country of Origin: | MX |
| Electrical Rating: | 24 Vac |
| HTS: | 9032.89.6025 |
| Inducer Motor/Blower Motor; | None/PSC or ECMx |
| Model Number: | 48M55-751 |
| Motor Type: | (Blower) PSC or ECMx |
| (Inducer) PSC or ECMx | |
| Mounting: | Metal Standoff |
| Operating Temperature Range [°F]: | -40 to 175 |
| Replacement Type: | Direct OEM Replacement |
| Stages: | Single Stage |
| Thermostat Inputs: | R, C, G, W |
| Voltage: | 24 VAC |
Replaces:
- 1005-83-166A
- 1172975
- 1171734
- CEPL130541-01
- CEPL130658-01-1
- CES0130003-01
- HK61EA002
- HK61EA006
- HK61EA010
