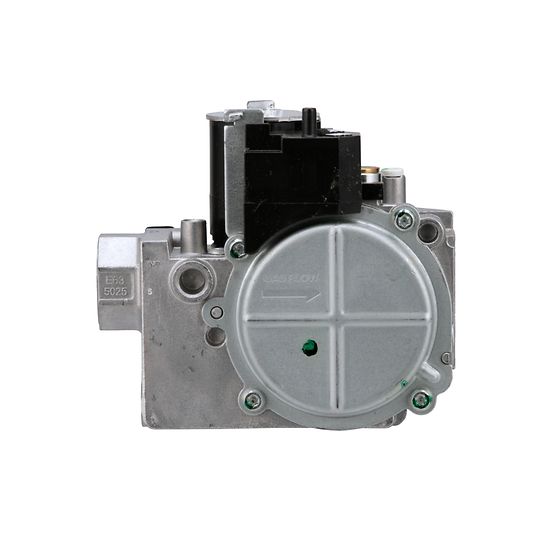

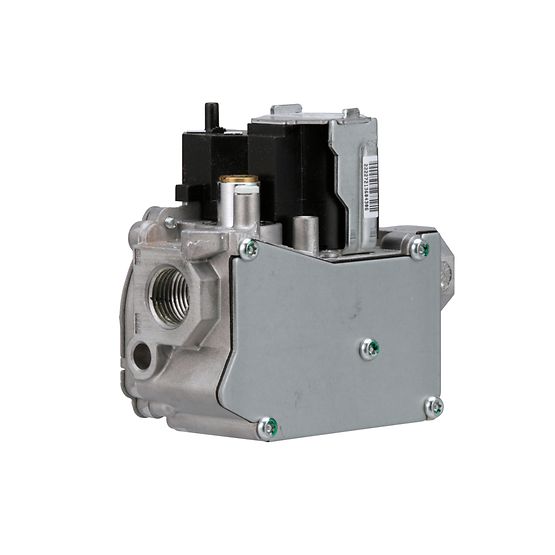

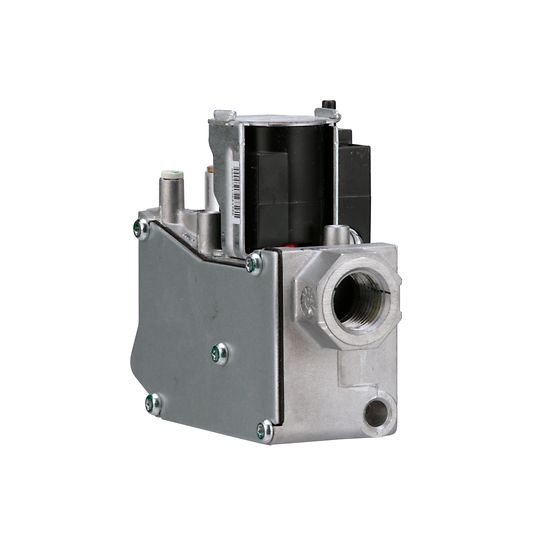

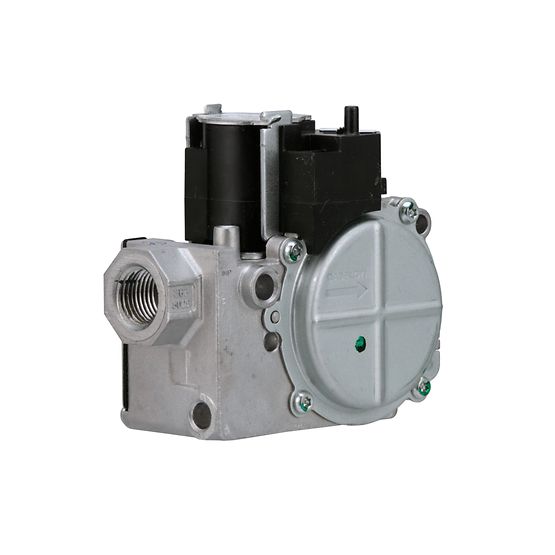

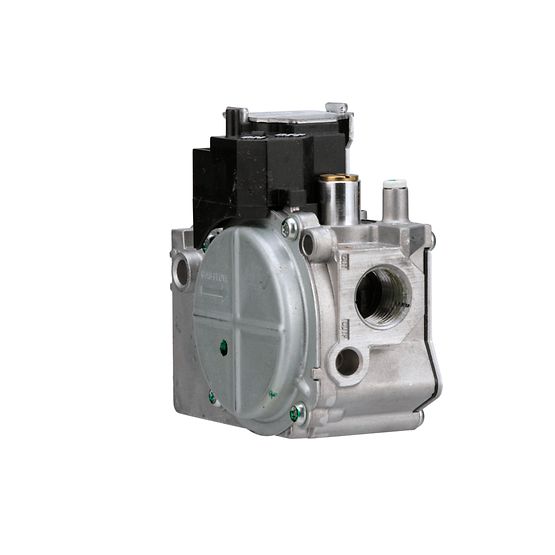

Copeland White-Rodgers 36J22Y-212 Single Stage, HSI/DSI Gas Valve, Goodman Replacement

Save 56%
Original price $163.23
Current price $71.41
SKU 36J22Y-212
Currently 10 in stock.

Copeland White-Rodgers 36J22Y-212 Single Stage, HSI/DSI Gas Valve, Goodman Replacement

Goodman replacement for single stage HSI/DSI gas valve with maximum regulation feature, 24 Vac, 1/2 in X 1/2 in NPT, Fast Opening, Inlet / Outlet Pressure Taps, LP Gas Conversion Kit. Replaces Goodman 36J22Y-202, 0151M00037, 0151M00037S

  • Designed for Hot Surface and Direct Spark Ignition systems and features a compact footprint and versatile range
  • Fast open, single stage
  • Electric on-off switch and convenient quick connect coil terminals and built-in pressure taps
  • Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
  • Mounts in any position including upside down



36J22Y-212 SPEC SHEET



Specifications



Operating Voltage: 24 Vac 50/60 Hz
Temperature Operating Range: -40 to 175°F (-40 to 79°C)
Maximum Pressure Rating: 1/2 in. PSI 14.0 in. WC
Pilot Gas Connection: Compression fitting for 1/4” OD tubing
Inlet & Outlet Pressure Taps: 1/8” NPT
Agency Approvals: CSA (Canada & US)



36J22Y-212 Replaces the Following Goodman Models:

  • 36J22Y-202
  • 0151M00037
  • 0151M00037S
