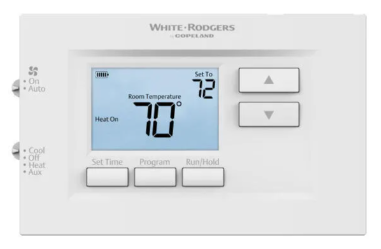

Copeland White-Rodgers 1F75H-21PR 70 Series Programmable Thermostat (2 Heat/1 Cool)

The 70 Series provides an easy-to-use thermostat with a modern design that helps reduce complexity for the customer and in turn helps reduce contractor callbacks. Easy to install with a backplate common to the 80 Series and Sensi thermostats to enable easy upgrade. The 70 Series presents a good value from a reliable brand. It’s the right thermostat for both the contractor and the customer.

Features:

Specifications:

• Ambient Operating Humidity:  0 to 90% RH (Non-Condensing)

• Applications:  Heat Pump

• Batteries Included:  Yes

• Battery Life:  Up to 2 yr

• Battery Type:  AA

• California Prop 65 Cancer or Reproductive Harm:  Yes

• California Prop 65 Labeling:  On package cancer & reproductive

• Color:  White

• Country of Origin:  VN

• Differential Temperature Range [°F]:  Aux. Heat: Fast 0.5, Med. 0.75, Slow 1.9
                                                             Heat Pump: Fast 0.9, Med. 1.2, Slow 1.7

• Differential Temperature Setting [°F]:  Aux. Heat: Fast 0.5, Med. 0.75, Slow 1.9
                                                               Heat Pump: Fast 0.9, Med. 1.2, Slow 1.7

• Display:  Digital LCD

• Display Backlight:  Yes - Optional Continuous with Hardwire

• Display Height [in]:  1.375

• Display Size [in]:  3

• Display Size [in²]:  3.0

• Display Width [in]:  2.125

• Electrical Rating:  20 to 30 Vac, 50/60Hz, NEC Class II

• Family:  70 Series Thermostats

• Fan Options:  Auto-On

• Harmonized Tariff Schedule (HTS):  9032.10.0030

• Housing Material:  Plastic

• Keypad Lockout:  No
                               Yes

• Model Number:  1F75H-21PR

• MSDS Required:  No

• Overall Product Dimensions [in]:  6.00 L x 3.75 H x 1.15 D

• Power Source:  Battery
                           Hardwire

• Product Depth/Width [in]:  1.15

• Product Family:  70 Series Thermostats

• Product Height [in]:  3.75

• Product Length [in]:  6

• Product Weight [lb]:  0.55

• Program Early Start:  Yes

• Program Options:  5+1+1 Day Programmable
                                 7 Day Programmable
                                 Non-Programmable

• Program Periods Per Day:  4 or None

• Service Reminders:  Filter Replacement

• Set-Point Temperature Limits:  Yes

• Setpoint Temperature Range [°F]:  45 to 99

• Stages:  Heat Pump 2H/1C

• Style:  Horizontal

• System Switch:  Heat-Off-Cool-Aux

• System Type:  Heat Pump

• Terminals:  R,C,W2,E,Y,O/B,G

• Typical Applications:  Heat Pump

• Voltage:  24 VAC

• What's In The Box:  Thermostat, instructions, mounting hardware, (2) AA batteries, wire labels

Includes:

• Thermostat
• Instructions
• Mounting Hardware
• (2) AA batteries
• Wire labels
