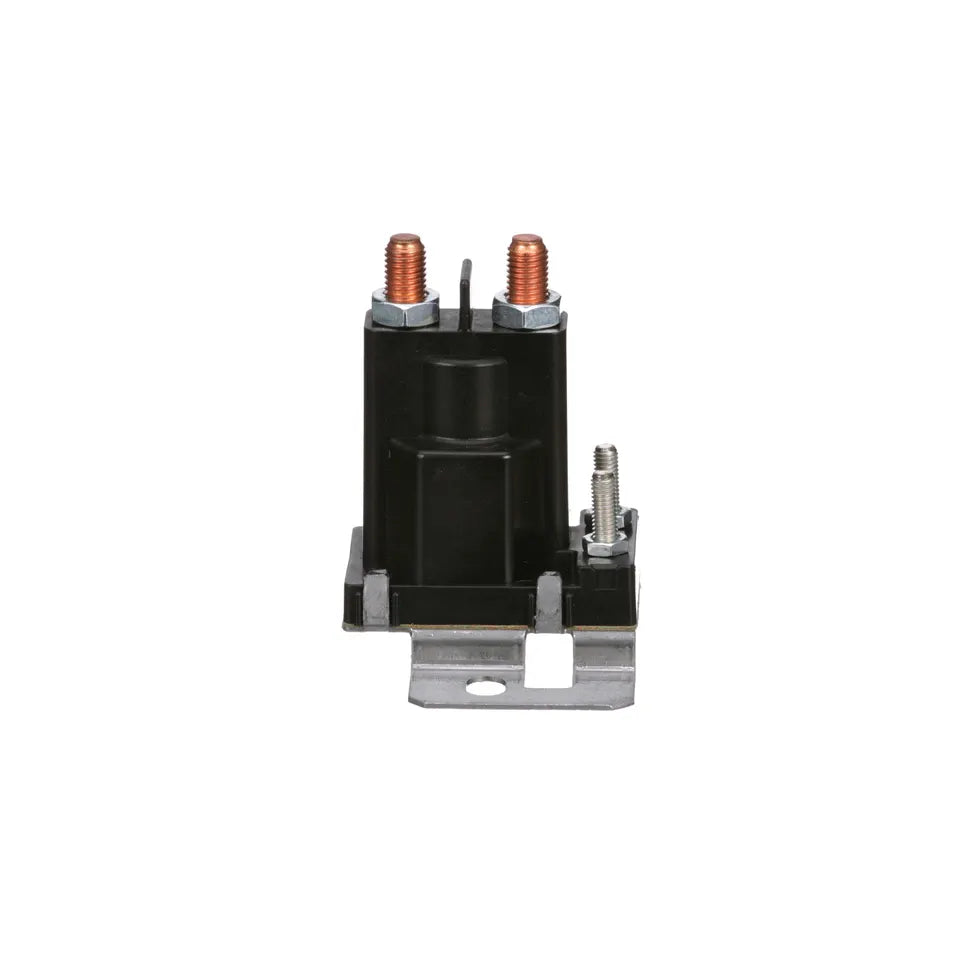

Copeland White-Rodgers 120-105711 120 Series D.C. Contactor
Single Pole Normally Open Contact, Dust Resistant, Water Resistant and Case is Isolated from Bracket
FEATURES:
- Water and dust resistant case
- Capable of handling low and high current requirements.
- Isolated or grounded to case coils
- Horizontal or vertical mounting bracket
- SPNO Contacts
SPECIFICATIONS:
- Bracket Style: Standard
- California Prop 65 Cancer or Reproductive Harm: Yes
- California Prop 65 Labeling: On package cancer & reproductive
- Cautionary Note: A back-up wrench must be used to hold the bottom nut stationary.
- Coil Type: Isolated Coil
- Contact Material: Silver Alloy
- Duty Cycle: Continuous
- Electrical Connection: Coil Terminals: #10-32 UNF-2A, 0.451in. Minimum
Contact Terminals: 5/16-24 UNF-2A, 0.495in. Minimum
- Electrical Rating, Current [A]: N.O. Contacts: Continuous 100 A, Inrush 400 A
- Model Number: 120-105711
- MSDS Required: No
- Operating Temperature Range [°F]: -20 to 120
- Orientation: Coil terminals up or horizontal
- Overall Product Dimensions [in]: 2.13 L x 2.88 W x 3.09 H
- Product Depth/Width [in]: 2.875
- Product Family: 120 Series D.C. Contactors
- Product Height [in]: 3.094
- Product Length [in]: 2.125
- Product Weight [kg]: 0.181
- Product Weight [lb]: 0.4
- Switch Type: SPNO
- What's In The Box: Coil nuts
Contact nuts
Contactor
Instructions
