Description

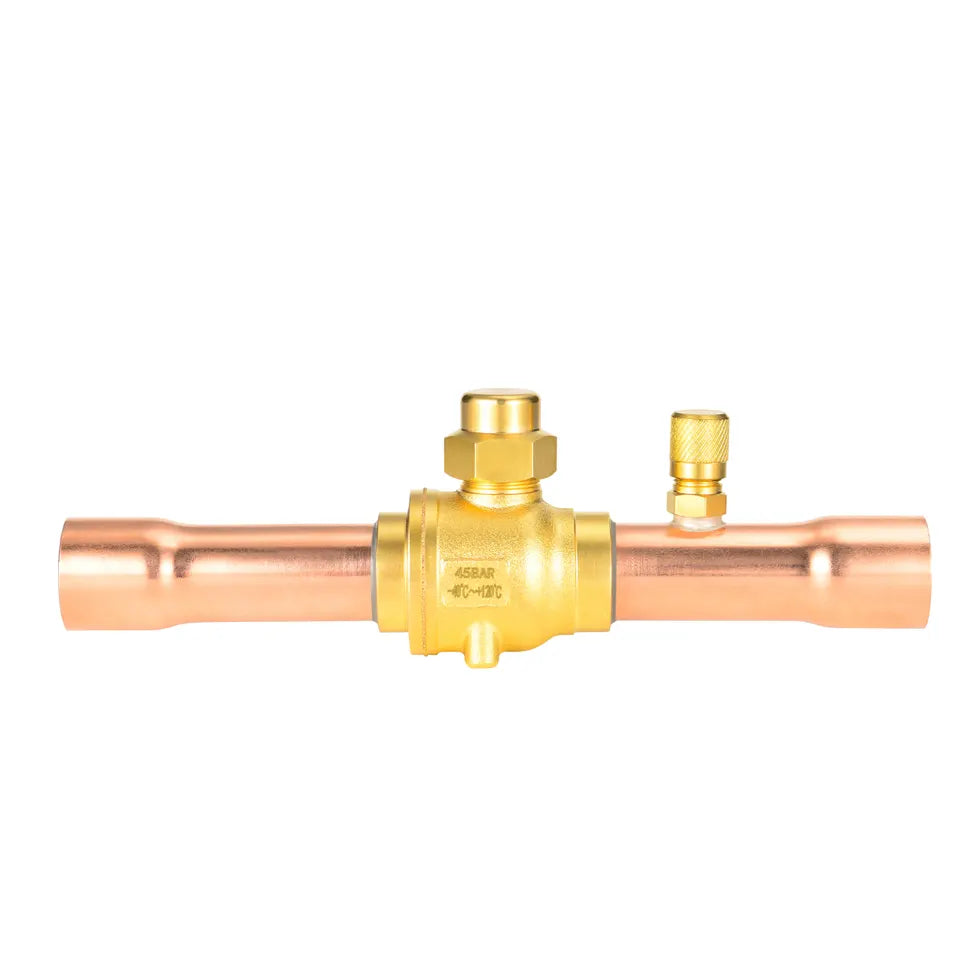

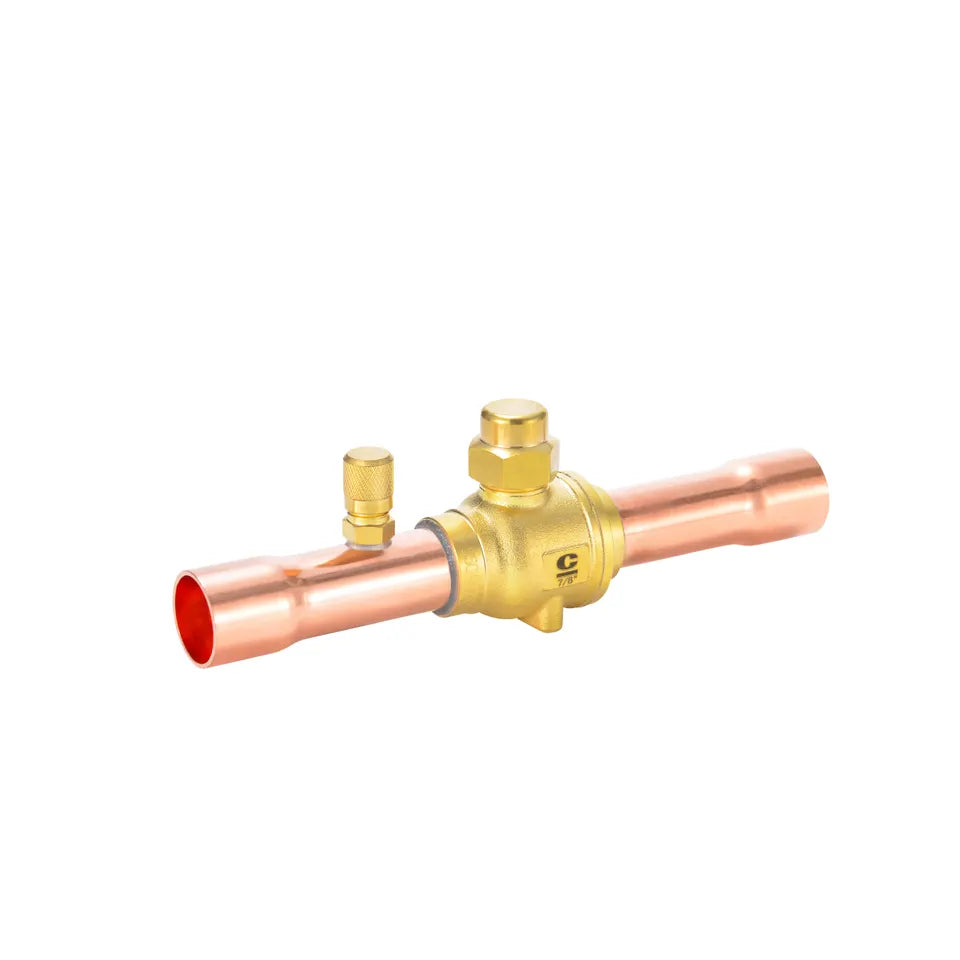

Copeland White-Rodgers 081069 BVSS-034T 3/4" ODF Refrigeration Ball Valve w/ Access Valve & Brass Locking Seal Cap
The BVSS Series refrigeration ball valves isolate suction, discharge, and liquid lines during maintenance shut down periods. BVSS Series welded refrigeration ball valves with access valve, 3/4" ODF connections and brass locking seal cap.
Features and Benefits:
- Forged brass body and copper connection with hermetic laser weld design
- Optimized sealing components for leak-proof performance
- Enhanced stop stem and enlarged stop tolerance for better sealing under higher working pressure
- Threaded mounting holes for easy mounting
- Bi-directional flow characteristics
- Compatible with HCFC, HFC, A1, A2L, A3 refrigerants and lubricants
- Integrated access valve on all sizes (core is pre-installed)
- Brass locking seal caps
- Full port design on all sizes
- Compact and lightweight
Specifications:
- Access Valve: Yes
- Body Material: Brass
- California Prop 65 Cancer or Reproductive Harm: Yes
- Connections: Extended Tubes, 100% Copper Connections
- Medium Temperature Range [°F]: -40 to 250 (302 for short term)
- Model Number: BVSS 034T
- Port Size, Diameter [in]: 4-Mar
- Product Family: BV Series Ball Valves
- UL/CUL File Number: SA32723
