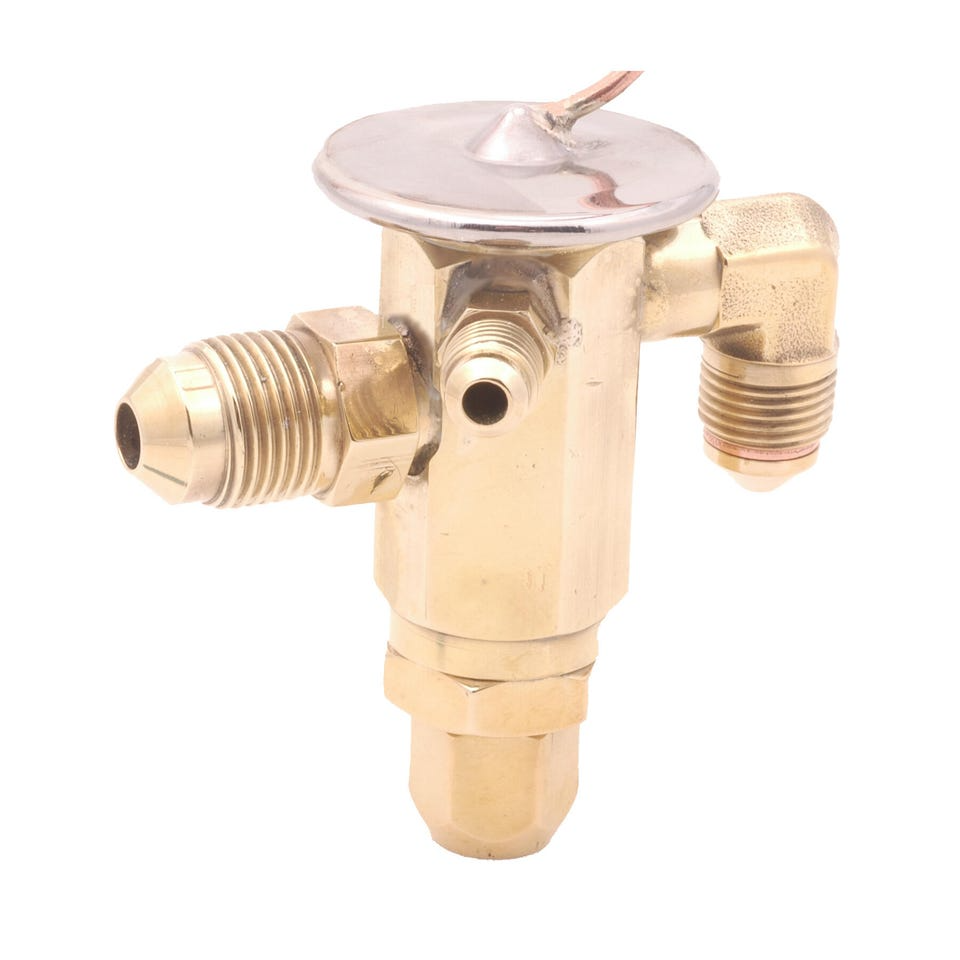

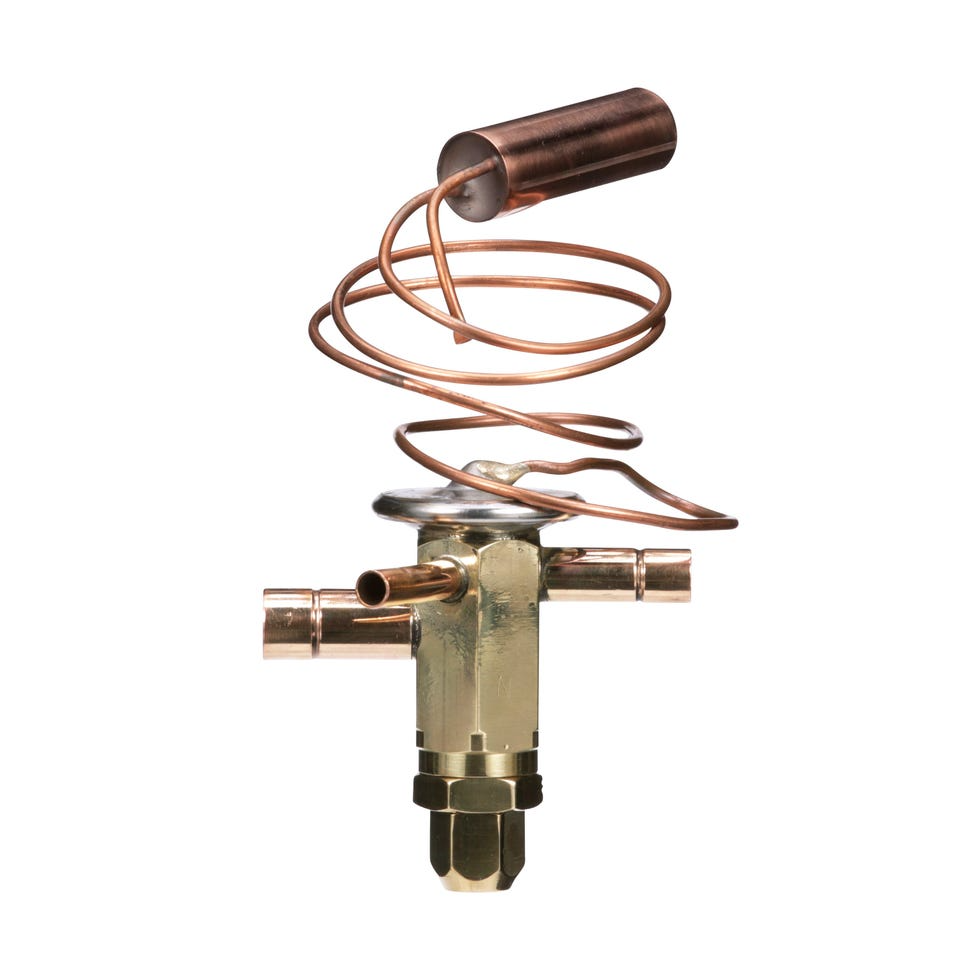

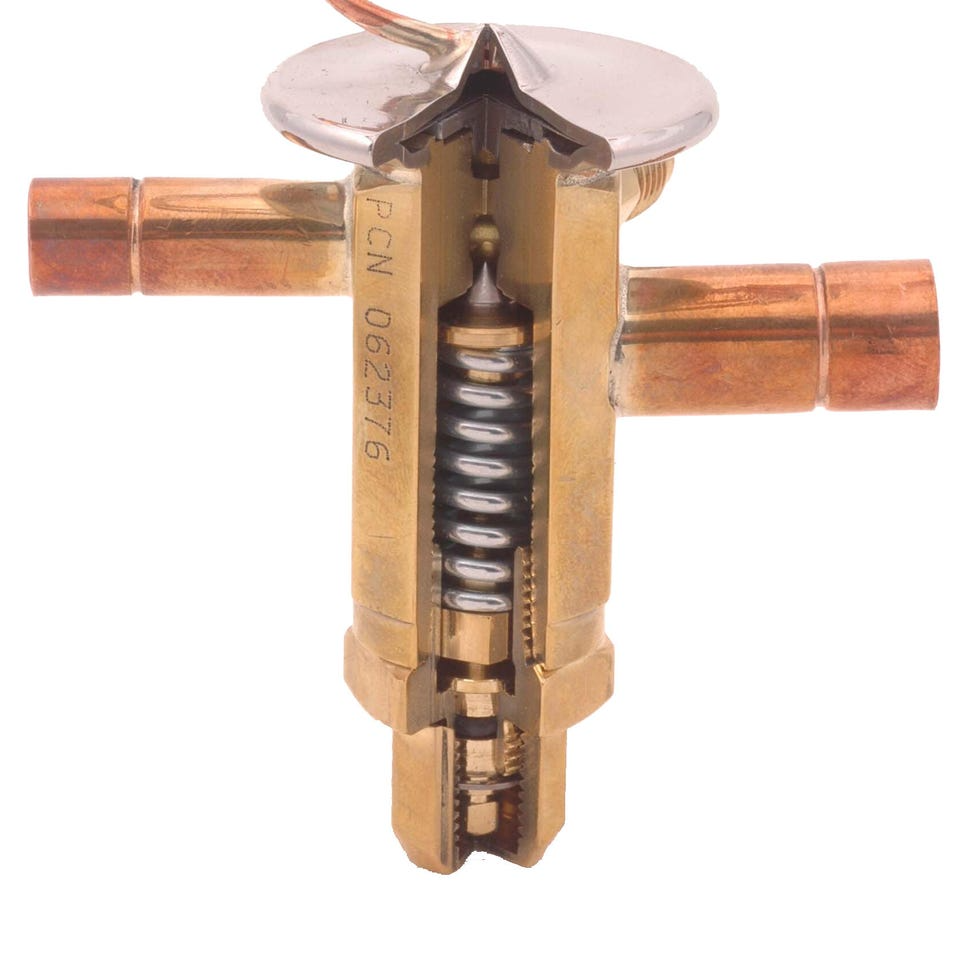

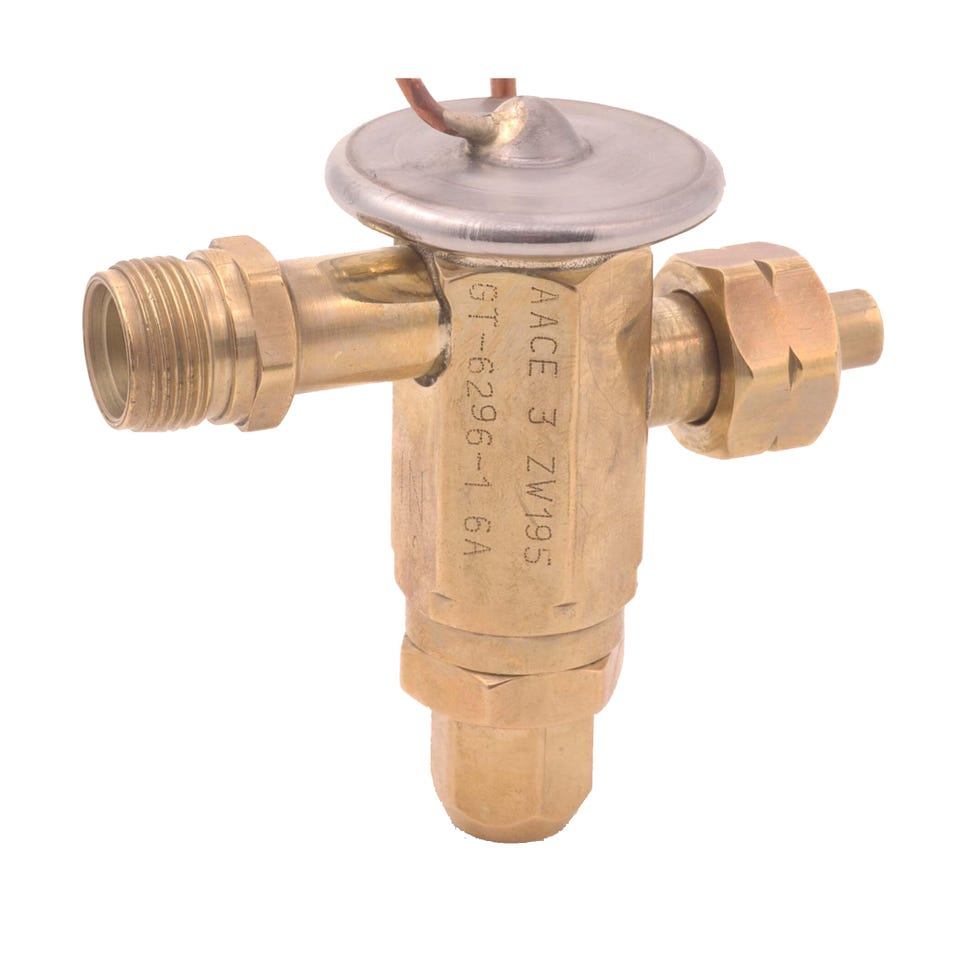

Copeland White-Rodgers 066087 AAE 1SC-03, A-Series Thermostatic Expansion Valve, 3/8" x 1/2" ODF

The A-Series is used for heat pump, air conditioning, food services and commercial applications.

Features:

• Stainless steel power element eliminates corrosion and prevents valve failure
• Hermetic, leak-free construction
• Compact size allows installation in limited spaces
• Mass spectrometer tested to ensure less than 0.10 oz/year external leakage rate


Specifications:

• Bleed:    No

• Body Material:    Brass

• Body Style:    Straight Thru

• Capacity, Nominal [Ton]:    4.00

• Capillary Length [in]:    60

• Capillary Tube Length:    5 ft.

• Charge Code:    C (Medium Temp)

• Equalizer:    External

• Family:    A-Series Thermostatic Expansion Valves

• Inlet Connection:    3/8" ODF

• Internal Check:    No

• Maximum Working Pressure MWP [psig]:    700

• Model Number:    AAE 1SC-03

• Outlet Connection:    1/2" ODF

• Refrigerant Code:    S (R-404A, R-502, R-507)

• Superheat:    Adjustable

• Superheat Setting:    6A

• UL/CUL File Number:    SA5312
