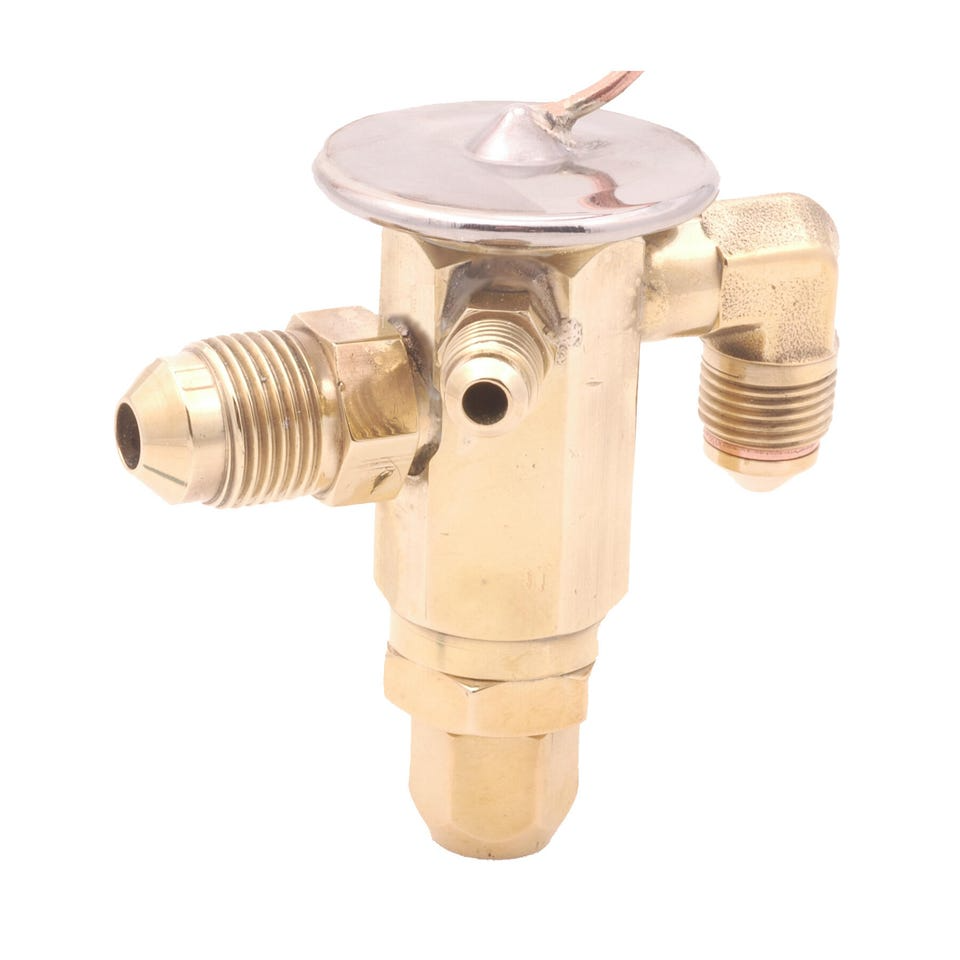

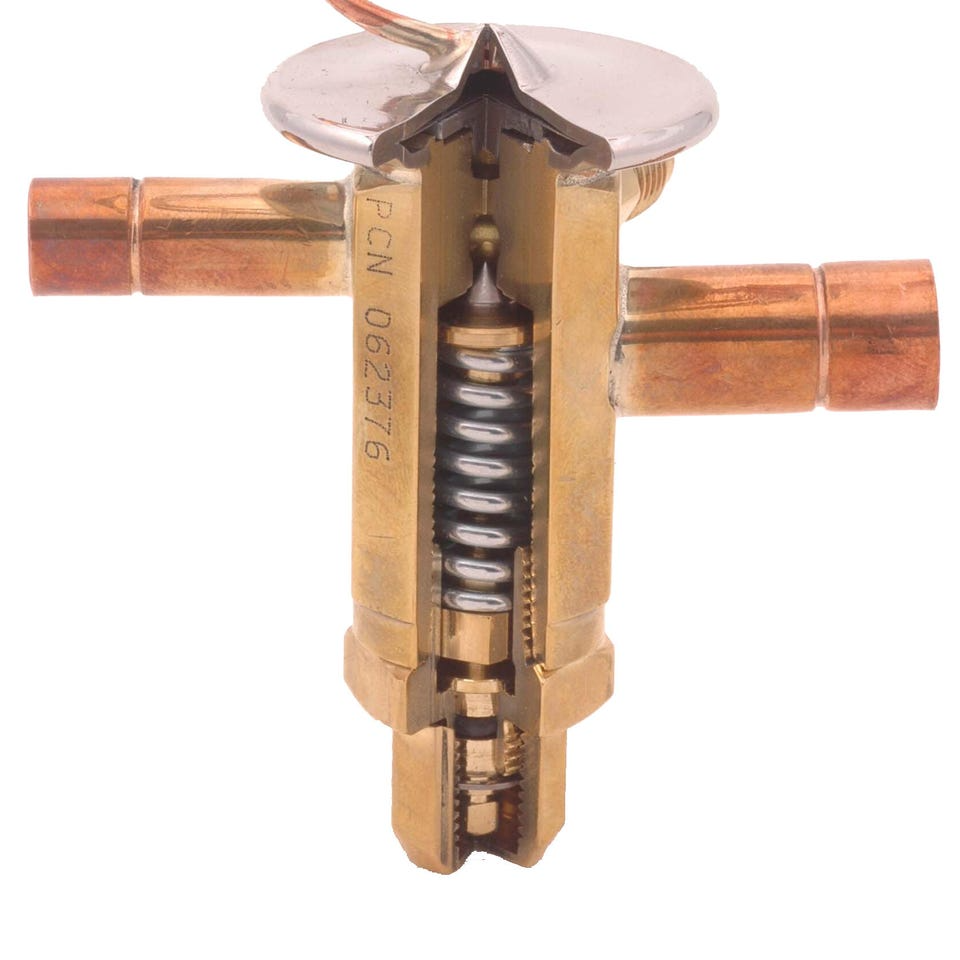

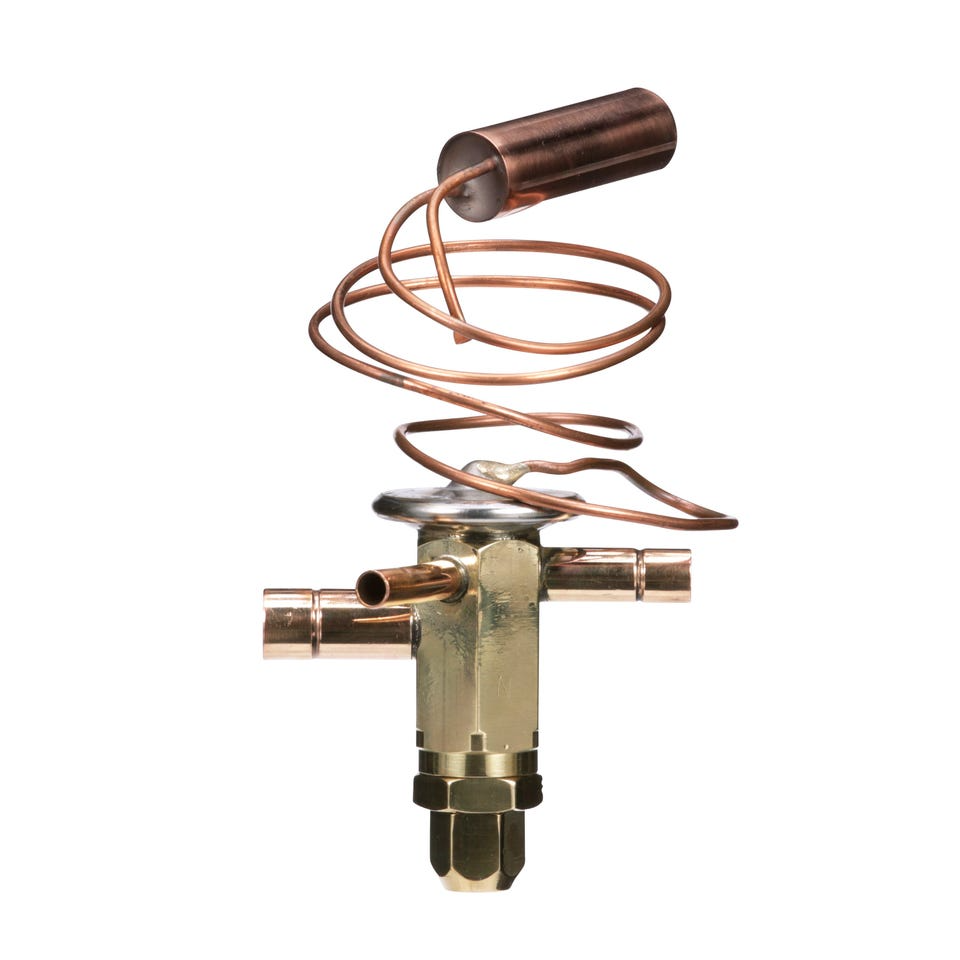

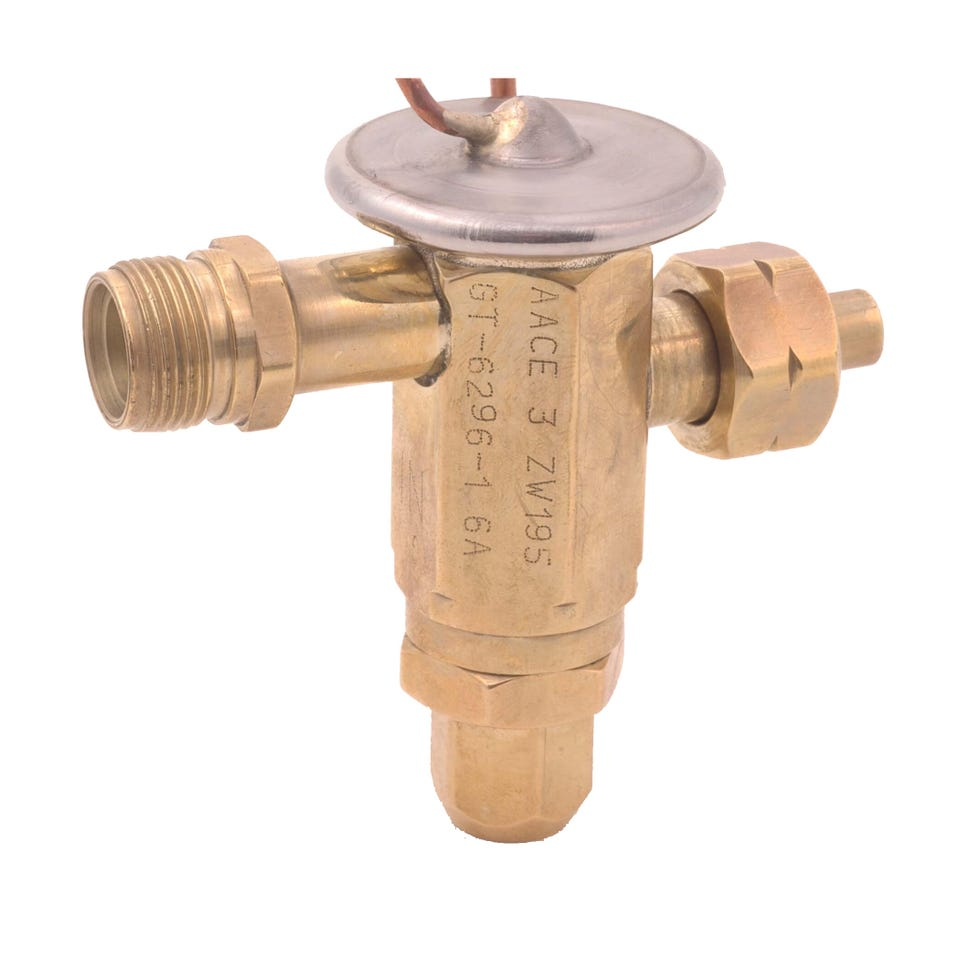

Copeland White-Rodgers 065202 AA 1/4SZ-05, A-Series Thermostatic Expansion Valve, 1/4" x 3/8" ODF

The A-Series is used for heat pump, air conditioning, food services and commercial applications.

Features:

• Stainless steel power element eliminates corrosion and prevents valve failure
• Hermetic, leak-free construction
• Compact size allows installation in limited spaces
• Mass spectrometer tested to ensure less than 0.10 oz/year external leakage rate


Specifications:

• Bleed:    No

• Body Material:    Brass

• Body Style:    Straight Thru

• Capacity, Nominal [Ton]:    0.25

• Capillary Length [in]:    30

• Capillary Tube Length:    30 in.

• Charge Code:    Z (Low Temp)

• Equalizer:    Internal

• Family:    A-Series Thermostatic Expansion Valves

• Inlet Connection:    1/4" ODF

• Internal Check:    No

• Maximum Working Pressure MWP [psig]:    700

• Model Number:    AA 1/4SZ-05

• Outlet Connection:    3/8" ODF

• Refrigerant Code:    S (R-404A, R-502, R-507)

• Superheat:    Adjustable

• Superheat Setting:    6C

• UL/CUL File Number:    SA5312
