Description

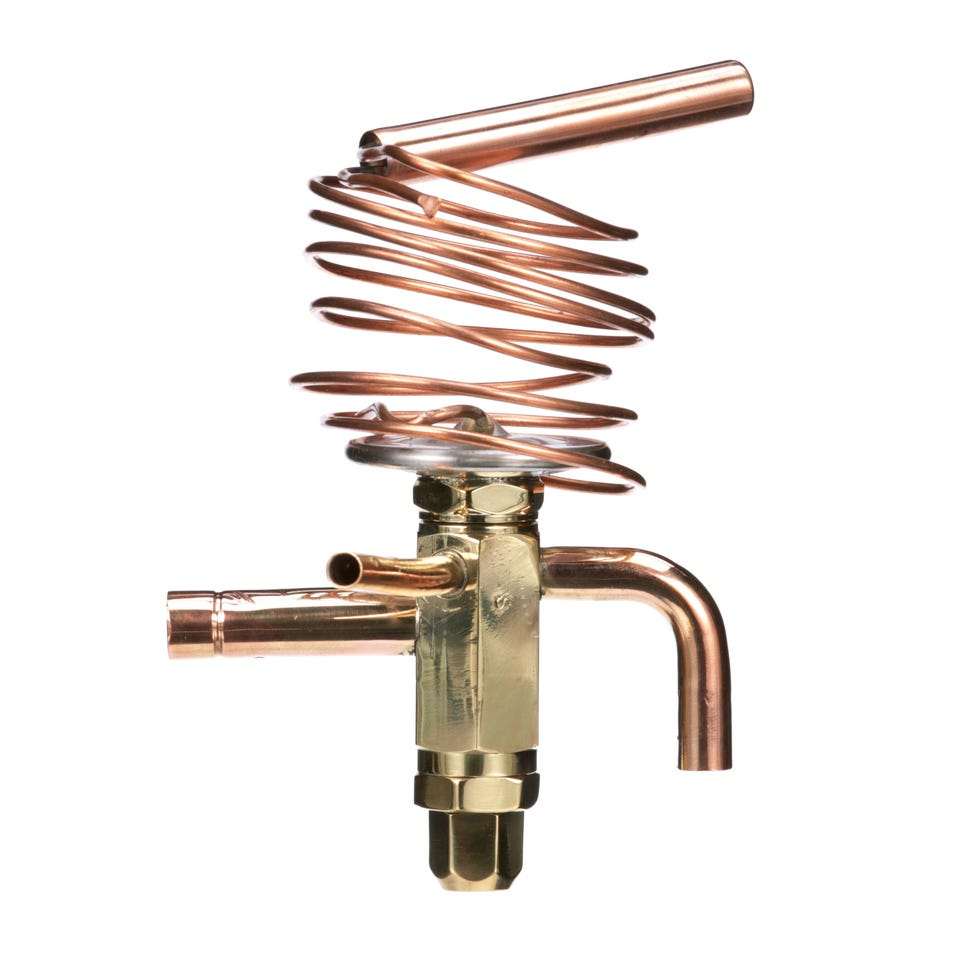

Copeland White-Rodgers 056029 HFES 1RC-02, HF Series Thermostatic Expansion Valve, 1/2" x 3/8" ODF
The HF Series is a balanced ported valve designed for refrigeration, air conditioning and heat pump applications.
Features:
- Stainless steel replaceable power element eliminates corrosion and prevents valve failure
- Two body sizes provide capacities from 1/4 to 20 tons
Specifications:
| Bleed: | No |
|---|---|
| Body Material: | Brass |
| Body Style: | Straight Thru |
| Capacity, Nominal [Ton]: | 1.00 |
| Capillary Length [in]: | 60 |
| Capillary Tube Length: | 5 ft. |
| Charge Code: | C (Medium Temp) |
| Equalizer: | External |
| Family: | HF Series Thermostatic Expansion Valves |
| Inlet Connection: | 3/8" ODF |
| Maximum Working Pressure MWP [psig]: | 450 |
| Outlet Connection: | 1/2" ODF |
| Refrigerant Code: | R (R-502, R-404A, R-507) |
| Strainer: | Not Removable |
| Superheat: | Adjustable |
| Superheat Setting: | 5A |
| UL/CUL File Number: | SA5312 |
